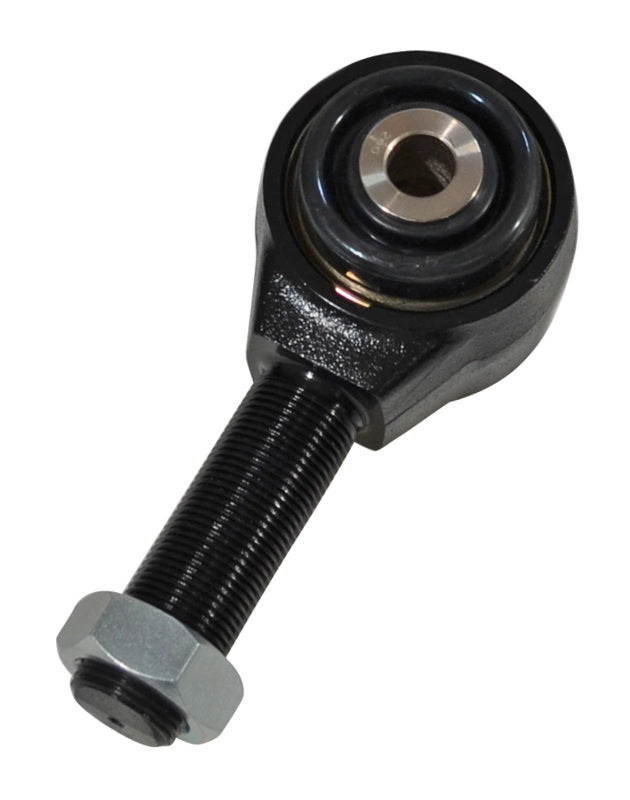

SPC Performance xAxis Rod End Ball Joint - 15793

Build your next project with these forged steel alloy threaded receivers and xAxis sealed flex joints from SPC Performance. Get the increased angularity of a mono-ball that has been equipped with high mis-alignment inserts, the reduced compliance of a spherical bearing, and better durability than rubber and urethane bushings with SPC's superior design. This assembly has LH 3/4"-16 threads takes a 12mm bolt and is 44.5mm wide. 19deg of articulation, sealed dust boots, moly grease and a highly polished electroless nickel ball makes this the best joint on the market. These assemblies utilize a snap ring for positive retention and easy replacements. Download a package model into your CAD software and start designing today. California Residents WARNING

Product appearance and features may vary in the market as design changes, improvements and modifications are implemented.

Features & Benefits

• Get the benefits of xAxis Sealed Flex Joints in a rod end ball joint
• Forged steel alloy receivers with xAxis sealed flex joints
• Sealed dust boots, moly grease and polished nickel ball

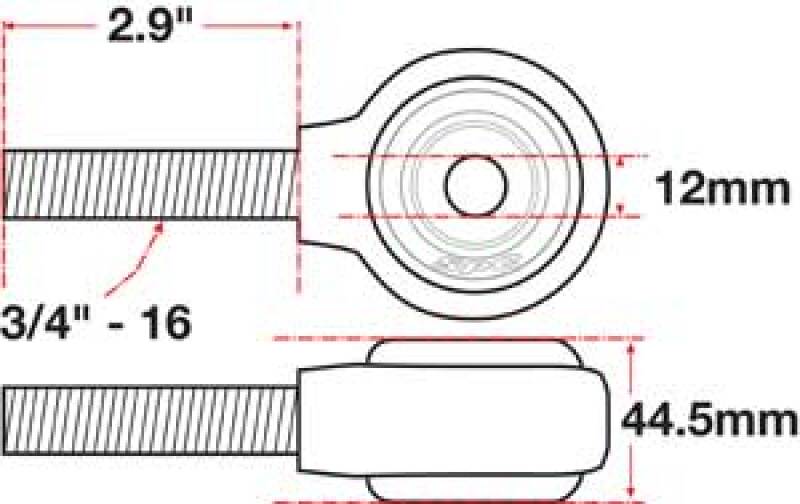

• Rod end thread: LH 3/4" X 16 X 12mm BH X 44.5mm W
