2019+ Ram 1500 2-3in. Stage 2 Suspension System w/ Billet Upper Control Arms - K213112

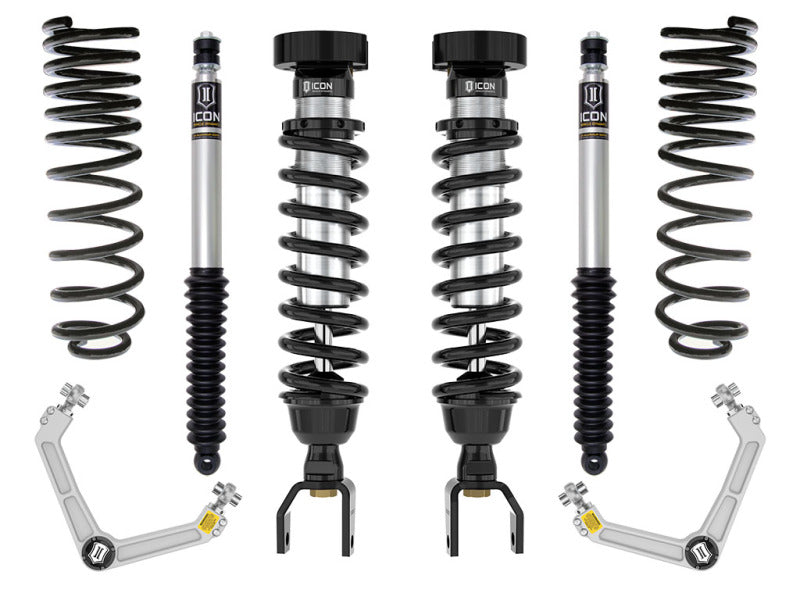

ICON Vehicle Dynamics 2019-2023 Ram 1500 suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. This Stage 2 system includes vehicle-specific tuned 2.5” coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. These coilovers, are also height adjustable for 2-3” of front lift over stock, allowing the use of larger, more aggressive wheel and tire combinations and their longer than stock length improves performance by increasing front wheel travel. Billet aluminum Delta Joint upper control arms not only add strength and durability but help retain factory alignment specs, offer on-vehicle caster/camber adjustment, and allow proper wheel alignment at the lift height this system provides. The dual-rate rear coil design provides a softer ride height spring rate with a firmer overload rate that combine to deliver on-road comfort with excellent bottoming resistance and superior off-road performance. 1.5” of rear lift height over stock allows a for level stance front to rear. ICON 2.0 Aluminum Series internal reservoir rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2019-2023 Ram 1500 Stage 2 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.

APPLICATION NOTE #183: May require sanding of coil bucket for clearance. Cycling suspension during install to verify clearance is recommended.

TECH NOTE: 2019-2023 Ram 1500 Rebel will have front lift height range of 1.25-2.25" over stock and 1" of rear lift over stock

APPLICATION NOTE #55: Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.

Recommended Aftermarket Tires: 35" x 12.50" (fender trimming and modifications will be required.)

APPLICATION NOTE #99: Performance rear springs may cause reduced ride height while towing

Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.00" Backspace / 0mm Offset

Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.00" Backspace / 0mm Offset

APPLICATION NOTE #100: Spring not rated for EcoDiesel equipped trucks

APPLICATION NOTE #131: Will not fit 2019-UP Ram 1500 Classic models

APPLICATION NOTE #105: Not for vehicles with rear factory air ride

APPLICATION NOTE #184: Will not fit Ram 1500 TRX

OEM Wheels & Tires Fitment: Yes

Features & Benefits

• Billet Upper Control Arms with Delta Joint ball joints for added strength, durability, and alignment spec range with on-vehicle adjustability
• Dual rate rear coil springs improve performance and ride quality while providing 1.5" of rear lift
• Corrosion resistant, 2.5” diameter, CAD plated coilover shock bodies with 7/8" shafts
• Vehicle specific tuned front and rear shocks for superior damping and vehicle control
• Increased wheel travel and ride quality over stock with no change in towing capacity
• 2.0 Aluminum Series rear internal reservoir shocks with 5/8" polished shafts
• 100% Bolt-on system - no drilling, cutting, or welding necessary for install
• FK rod end bearings for extended longevity and minimal deflection
• Adjustable coilovers yield 2-3" of front lift height over stock
• 6061 Aircraft grade aluminum CNC machined components
