23 Ford F250/F350 2.5" Stage 5 Suspension System W/ Radius Arms - K62565R

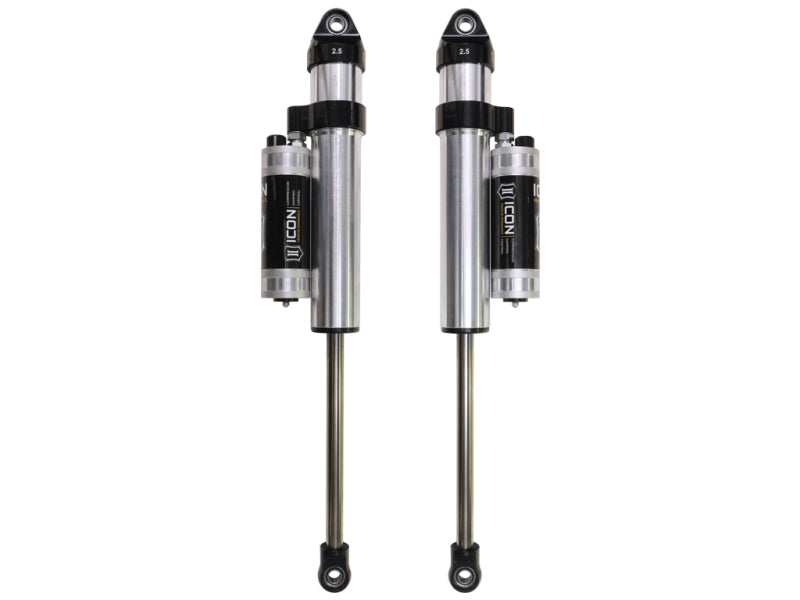

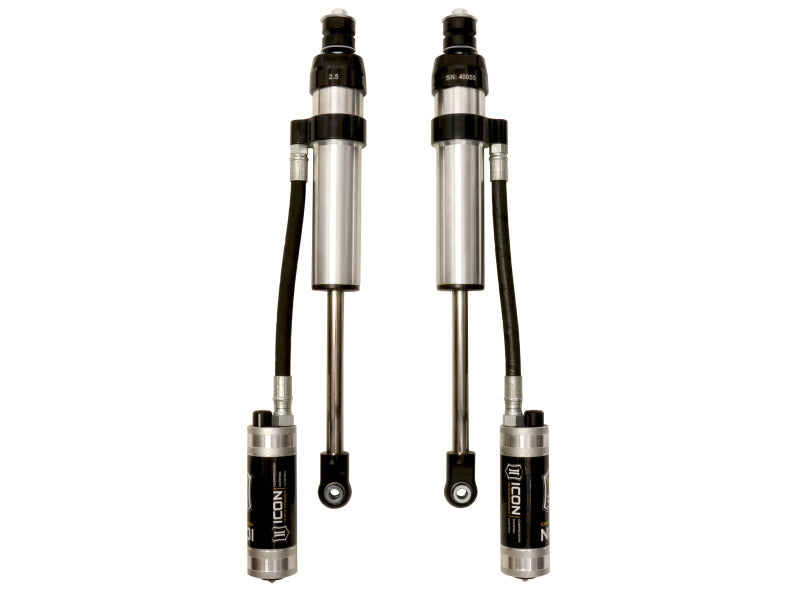

This ICON Vehicle Dynamics 2.5” suspension system is a great way to lift your 4WD 2023 Ford F-250/F-350 Super Duty while drastically improving ride quality and performance. The Stage 5 system is perfect for on-road and off-road use including towing, job site duty and general off-road adventure. ICON's Stage 5 System is comprised of dual rate coil springs optimized for trucks equipped with diesel engines, dual steering stabilizer kit with ICON 2.0 Aluminum Series stabilizers, on-vehicle adjustable front track bar, fabricated radius arms, and ICON 2.5 Aluminum Series CDCV remote reservoir front and CDCV piggyback reservoir rear shocks, for those desiring an easy way to tune the ride externally with 10 settings, from soft to hard. This stage sees the inclusion of the ICON Vehicle Dynamics Ford Super Duty Radius Arm System that feature a sealed pivot bushing that minimizes road feedback and ensures a long life and quiet operation. Additionally, their fabricated, fully boxed design ensures strength and utilizes a profile optimized for tire clearance at full steering lock, making a 37” tall tire clear without coming in contact with the radius arm. With the endless hours ICON has spent testing and tuning our suspension components and shocks as a complete package, you can rest assured you have the best suspension solution on the market.

TECH NOTE: Brake line kit (Part # 61111) is optional for end users who do not want to bend the factory steel lines or are looking for a braided stainless upgrade (not necessary for complete install)

Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)

APPLICATION NOTE #161: If equipped with OnBoard Scales also requires sensor bracket part number 66203

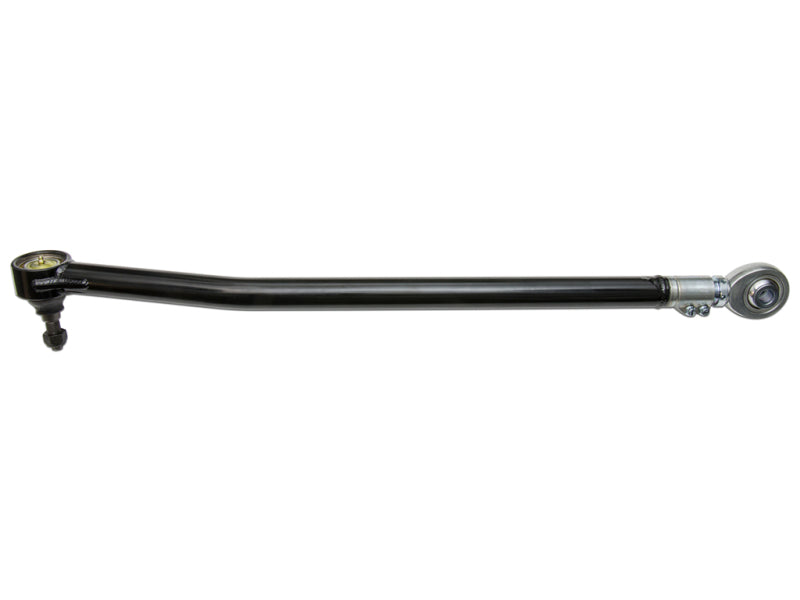

TECH NOTE: ICON track bar bracket part # 64039 is also recommended to correct bump steer geometry

TECH NOTE: Trucks equipped with Tremor package with have front lift height of 1.5" over stock

Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset

Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset

Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset

TECH NOTE: Included rear shocks are compatible with 0-3" of rear lift over stock

APPLICATION NOTE #115: Lift Heights Based On 4Wd Crew Cab Diesel

APPLICATION NOTE #6: SPRINGS ARE RATED FOR DIESEL ENGINES ONLY

TECH NOTE: Not compatible with F-350 Cab & Chassis models

TECH NOTE: Will not fit 2024 models

OEM Wheels & Tires Fitment: Yes

Features & Benefits

• Hard anodized, corrosion resistant, one-piece impact extruded aluminum shock bodies with 7/8" shafts (2.5 Aluminum Series Shocks)
• Fabricated radius arms offer on vehicle caster adjustment, increased strength, and improved tire clearance at steering lock

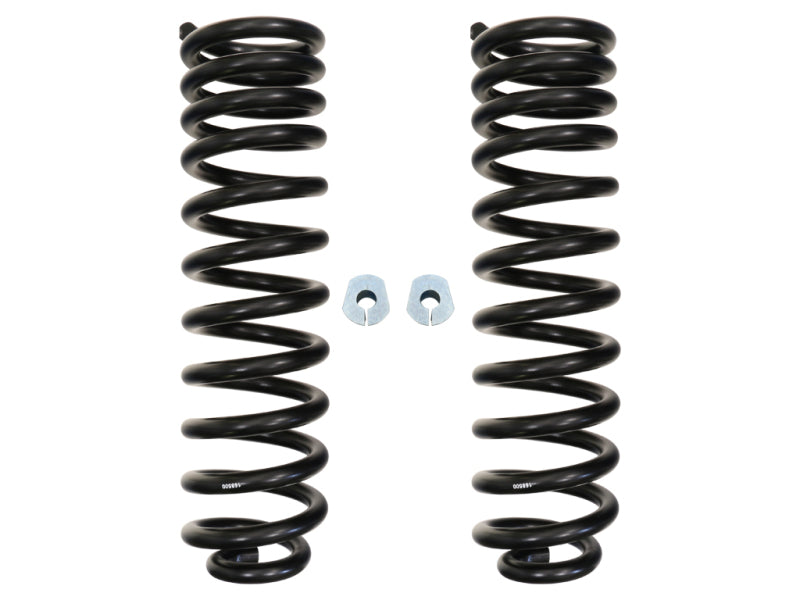

• ICON-engineered dual rate coil springs deliver exceptional vehicle control over varying terrain
• Lifetime guarantee against ICON fabricated component breakage or manufacturer defect
• ICON shocks feature vehicle specific tune for superior performance and ride quality
• ICON CDC Valve allows quick and easy end user compression adjustability
• FK Rod End bearings provide extended longevity and minimal deflection

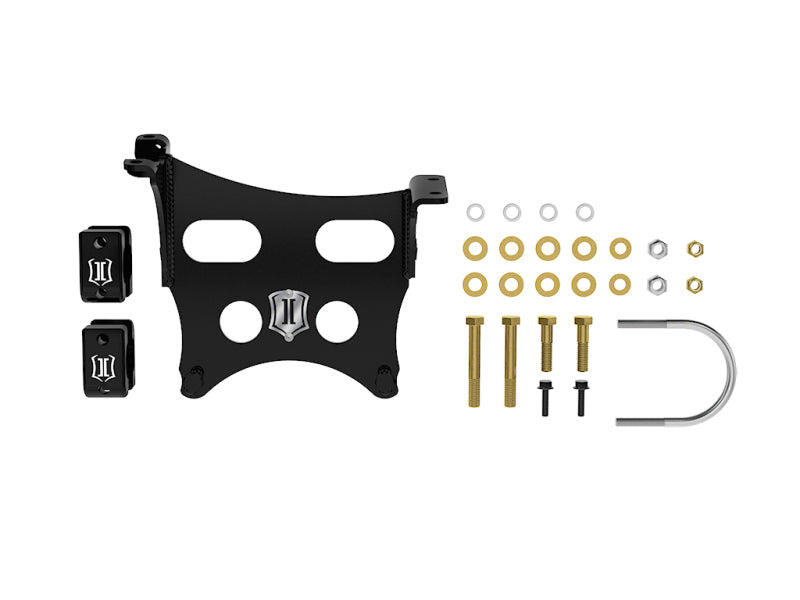

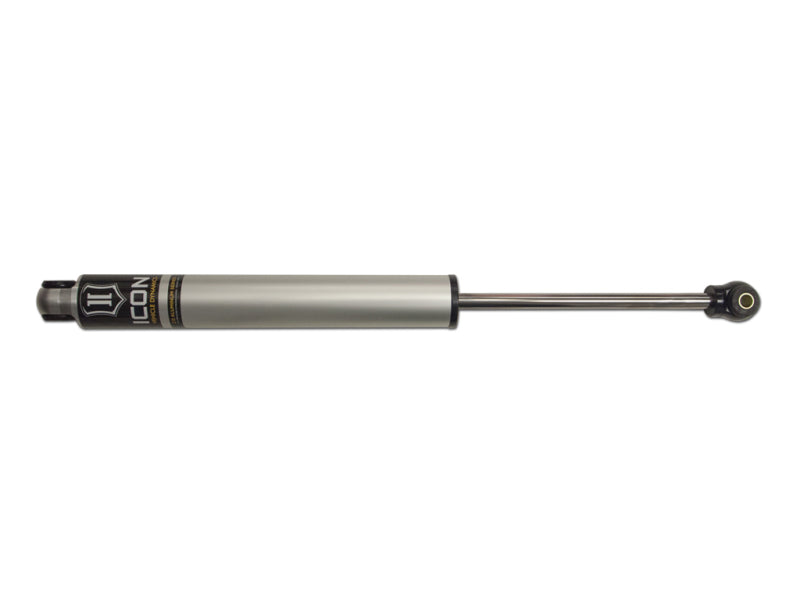

• Dual steering stabilizer kit for smooth wheel control while driving
• Approximately 25% increased front wheel travel over stock
• Lifetime guarantee against coil spring breakage or sag
• Fits 2023 F-250 / F-350 4WD diesel applications
• Shocks are fully rebuildable and revalvable
