AEM 12 Position Universal Trim Pot - 30-2056
- Catalog SKU
- aem30-2056
- Manufacturer part #
- 30-2056
- ✓Secure checkout
- ✓Enthusiast support
- ✓Free shipping on eligible $300+ merchandise subtotals in the lower 48 states
- Returns policy
Some products and vendors are excluded, including freight/LTL and oversized items.
One Parts Desk request covers fitment, availability, and timing.
Price matches are reviewed before purchase and are not guaranteed.
Project Garage
Plan this exact partSave the selected option to a build plan in this browser. No account required.
Fitment is not verified for your saved vehicle.
Product details
Product information
Overview

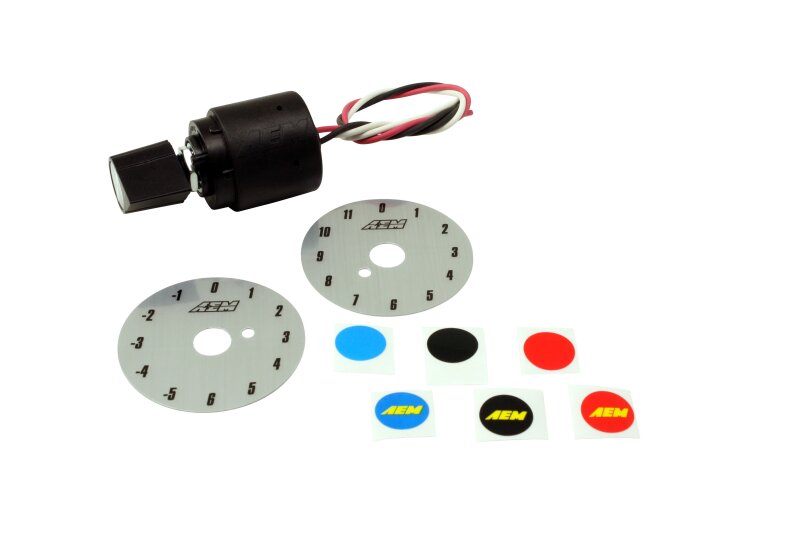

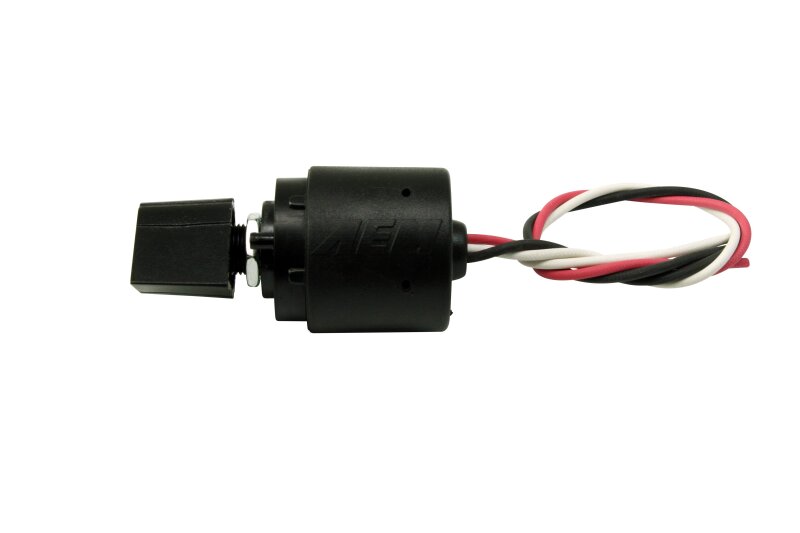

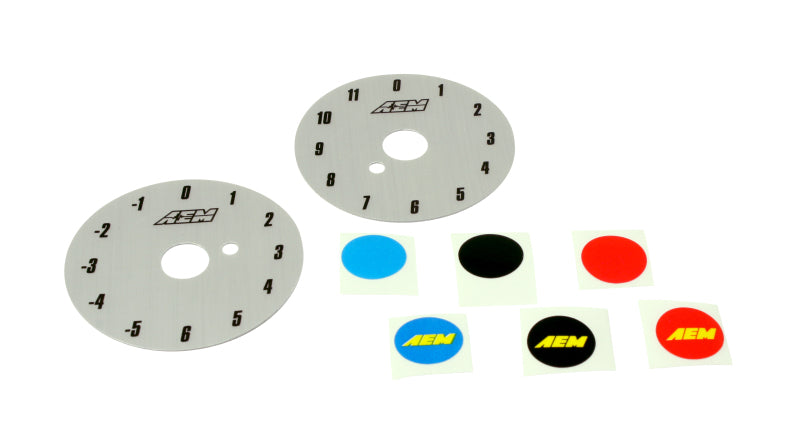

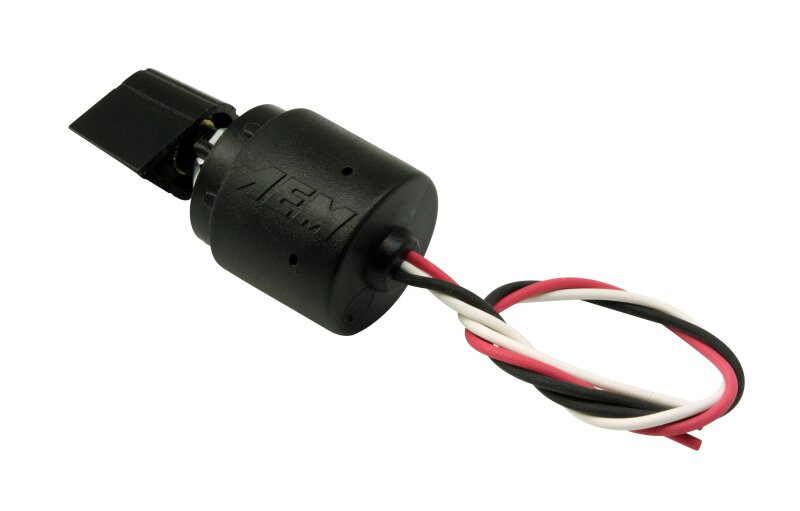

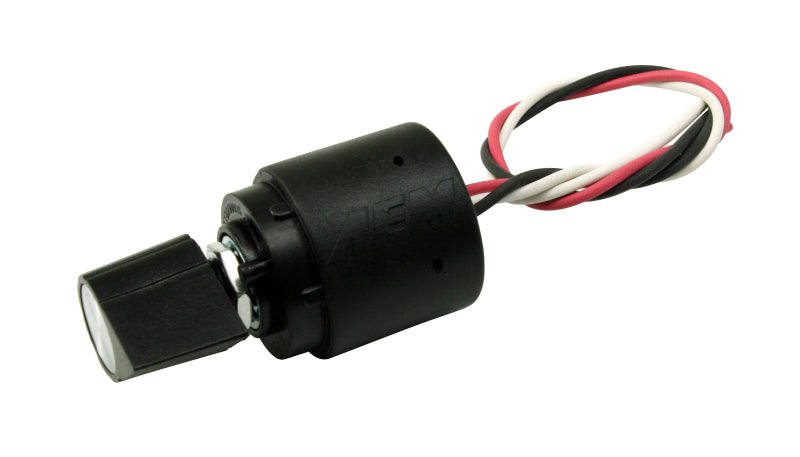

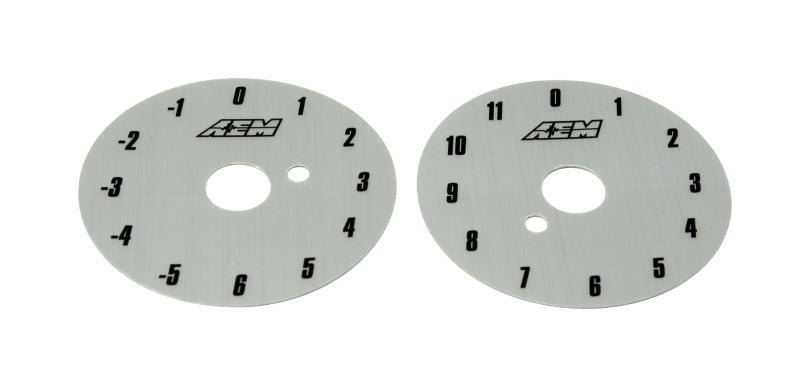

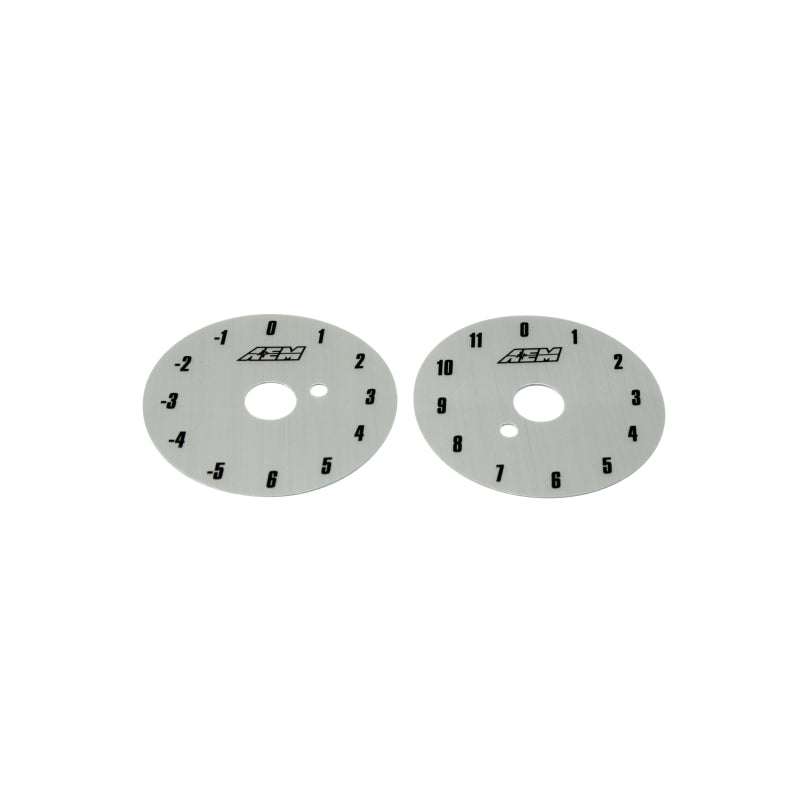

The Universal 12 Position Trim Pot is for use on virtually any Engine Management System, such as the AEM EMS. Use the Trim Pot to adjust a number of trims, including ignition timing, fuel, boost, etc. The Universal 12 Position Trim Pot includes: 12 Position Trim Pot with Flying Lead, 2 Brushed Silver Trim Position Decals with ranges from -5 to +6 and 0 to +11, Blue/Red/Black AEM Logo Knob Decals & Blue/Red/Black Colored Knob Decals. Click here for more AEM sensors and connectors
Features & Benefits
- Over mold weatherproof body with 12" leads, 1 Red (Supply Voltage 5Vdc +/- .5), 1 Black (Ground), 1 White (Output)
- 12 Position Trim Pot Performance Specifications
- Knob Set Screw: 1/16" Allen
- Total Resistance: 14.3KO
- Cycles Minimum: 10,000
- Supply Current: 5 Vdc
- Degree Rotation: 330
- Mounting: 3/8" Hole
- Jam Nut: 1/2" Hex
- Positions: 12
