AEM
AEM 6 Channel CAN Sensor Module - 30-2226
- Catalog SKU
- aem30-2226
- Manufacturer part #
- 30-2226
- ✓Secure checkout
- ✓Enthusiast support
- ✓Free shipping on eligible $300+ merchandise subtotals in the lower 48 states
- Returns policy
Some products and vendors are excluded, including freight/LTL and oversized items.
One Parts Desk request covers fitment, availability, and timing.
Price matches are reviewed before purchase and are not guaranteed.
Project Garage
Plan this exact partSave the selected option to a build plan in this browser. No account required.
Fitment is not verified for your saved vehicle.
Product details
Product information
Overview

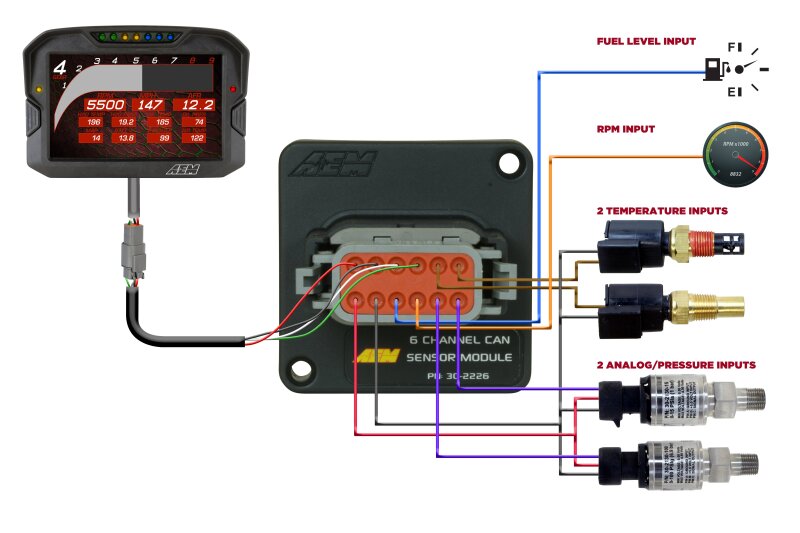

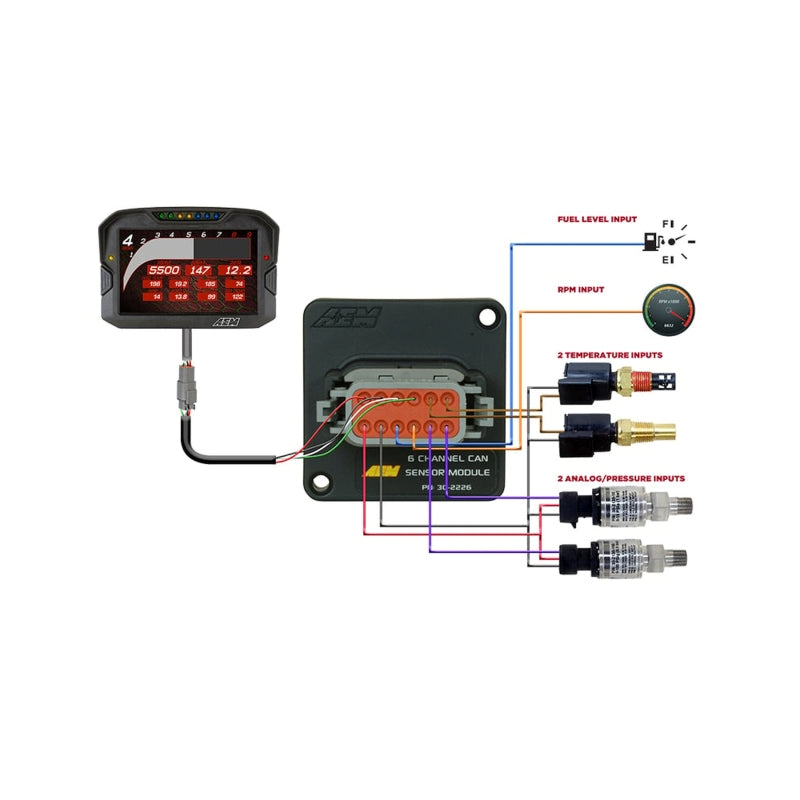

AEM's 6 Channel CAN Sensor Module (PN 30-2226) provides an affordable and easy way to add temperature, pressure, fuel level, and tachometer signals on to a CD Carbon Digital dash through AEMnet CAN bus! It supports the Bosch CAN 2.0b standard, making it compatible with many third-party devices that accept a programmable CAN bus input, which also allows you to add additional channels to a non-AEM ECU, dash or logger.
Fixed CAN bus speed, header length, and base address IP67 Potted Enclosure / Sealed Connector - "dust tight" and protected against water spray Protected inputs
Two (2) temperature (thermistor) inputs
Two (2) dedicated 0-5V analog inpu
Features & Benefits
- IP67 Potted Enclosure / Sealed Connector - "dust tight" and protected against water spray
- One (1) dedicated fuel level input (0 to 250 Ohm range)
- Fixed CAN bus speed, header length, and base address
- Two (2) dedicated 0-5V analog inputs
- One (1) tachometer/coil input
- Protected inputs
