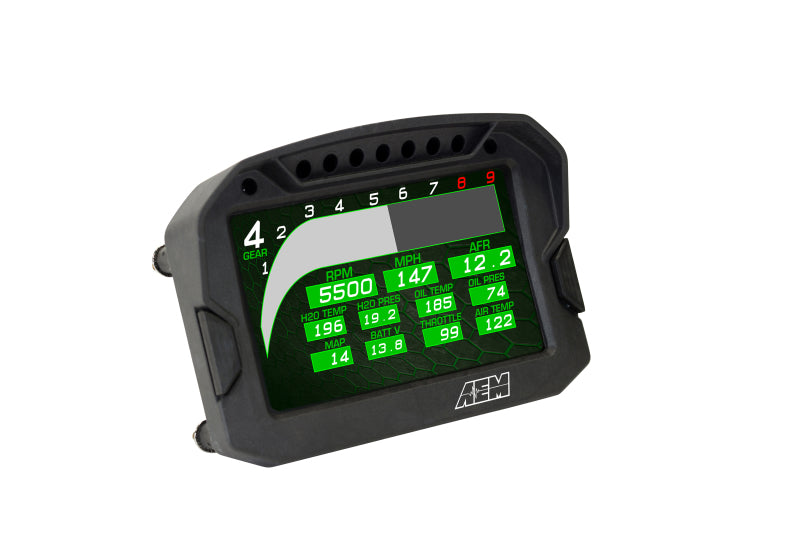

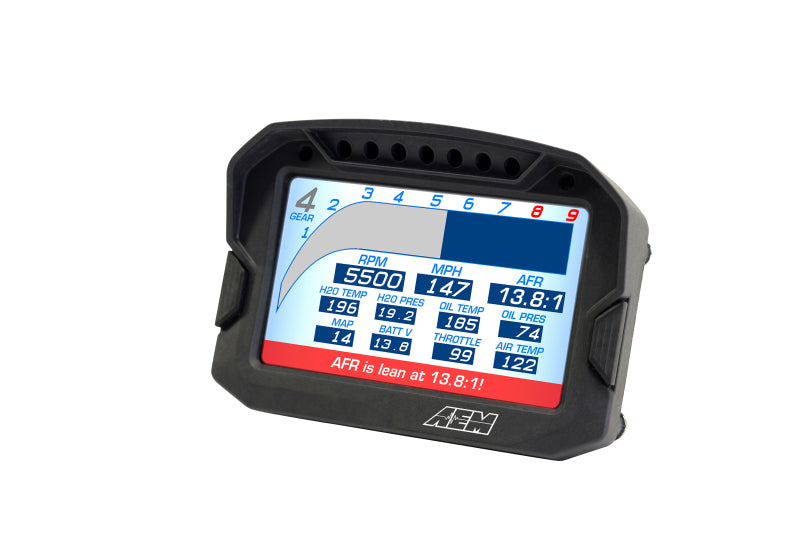

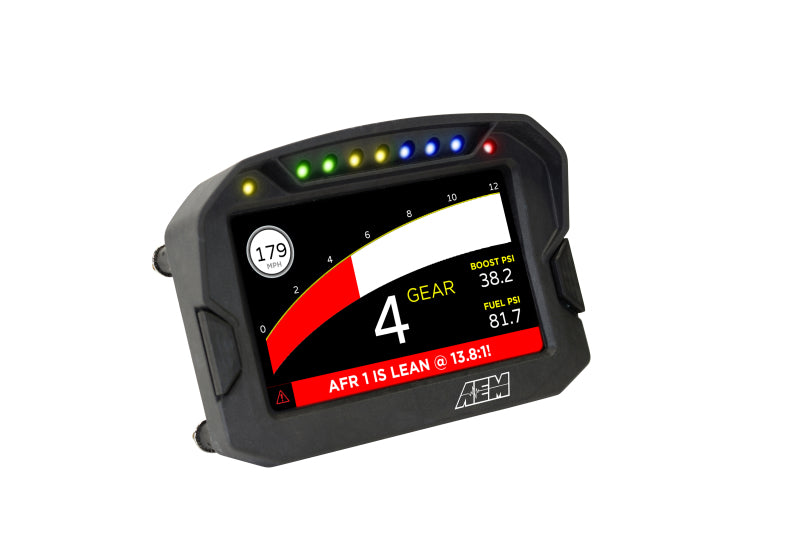

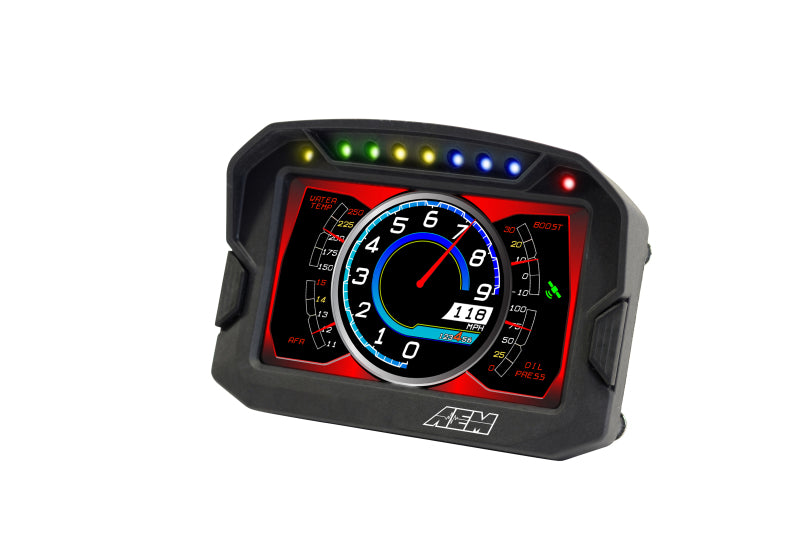

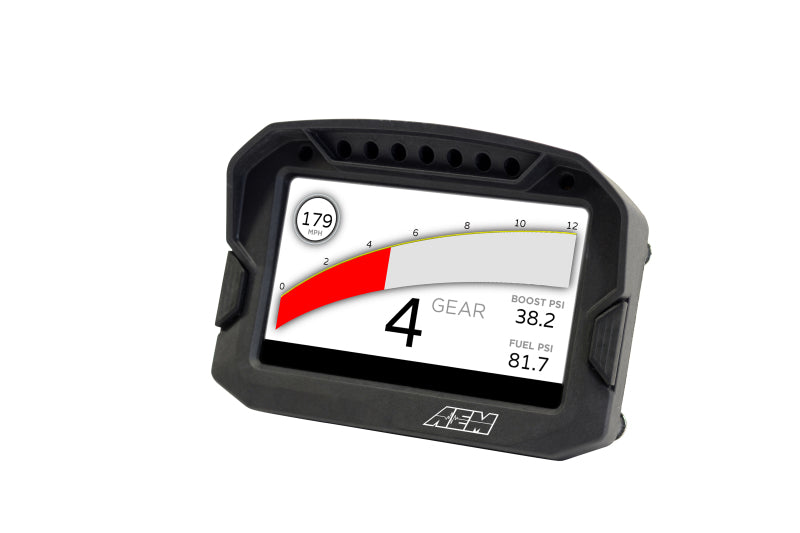

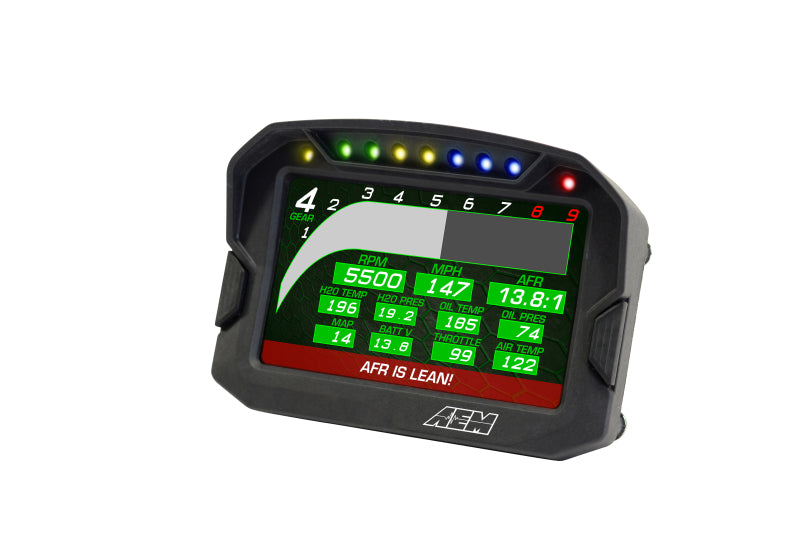

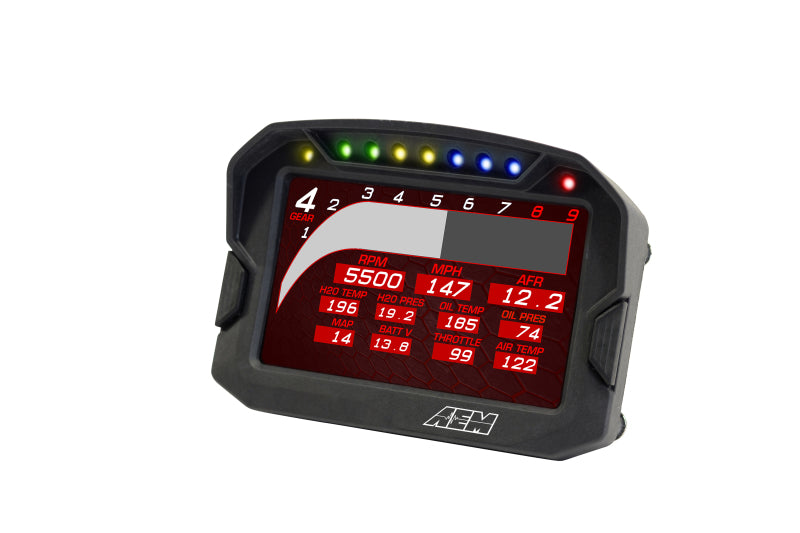

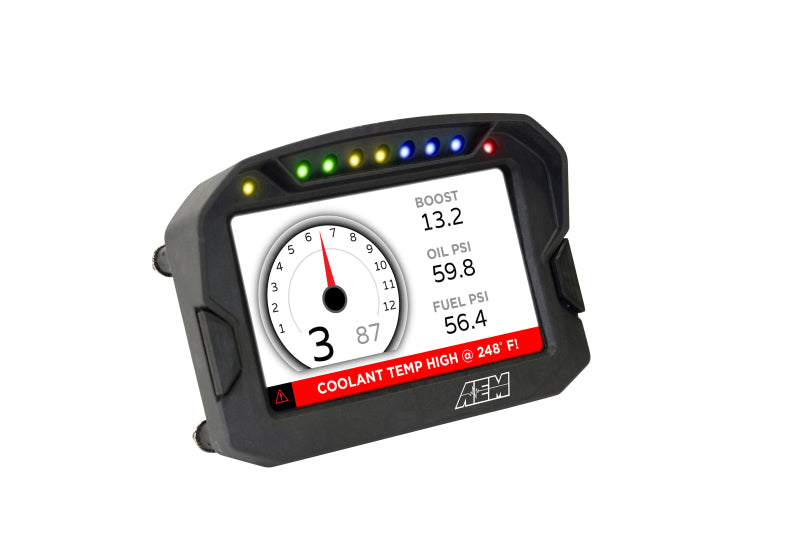

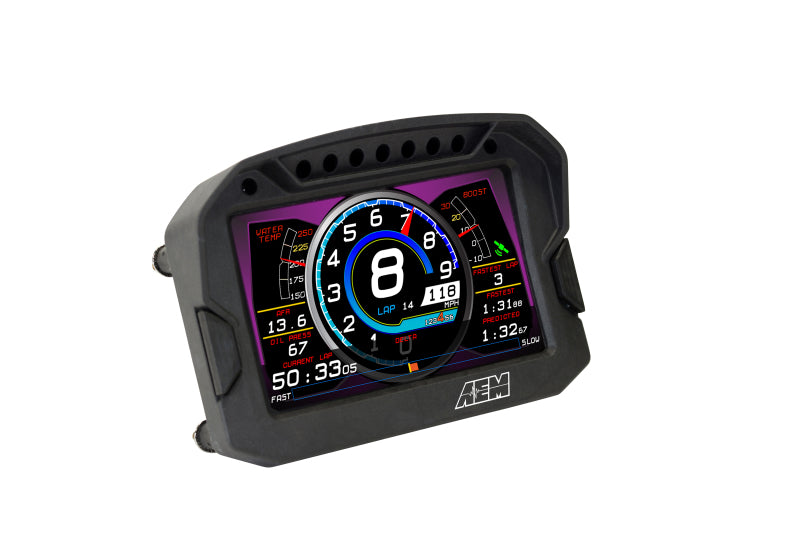

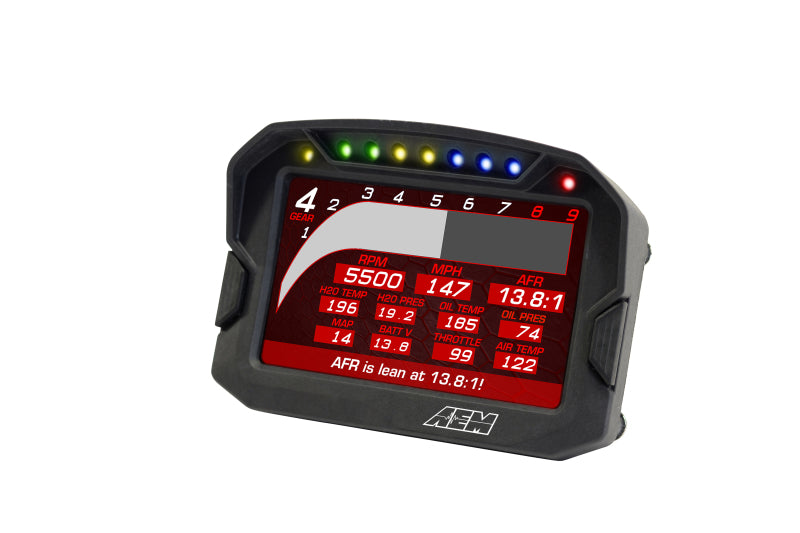

AEM CD-5G Carbon Digital Dash Display w/ Interal 10Hz GPS & Antenna - 30-5602

Click to zoom in

Load image into Gallery viewer, AEM CD-5G Carbon Digital Dash Display w/ Interal 10Hz GPS & Antenna - 30-5602

Competitive Pricing

We will beat most prices!
Questions?

Contact us at sales@allianceracing.com
Free Shipping

Free shipping on orders over $300!

AEM CD-5G Carbon Digital Dash Display w/ Interal 10Hz GPS & Antenna - 30-5602

Brand: AEM

SKU: aem30-5602

availability: In stock

$1,518.95 $1,349.95

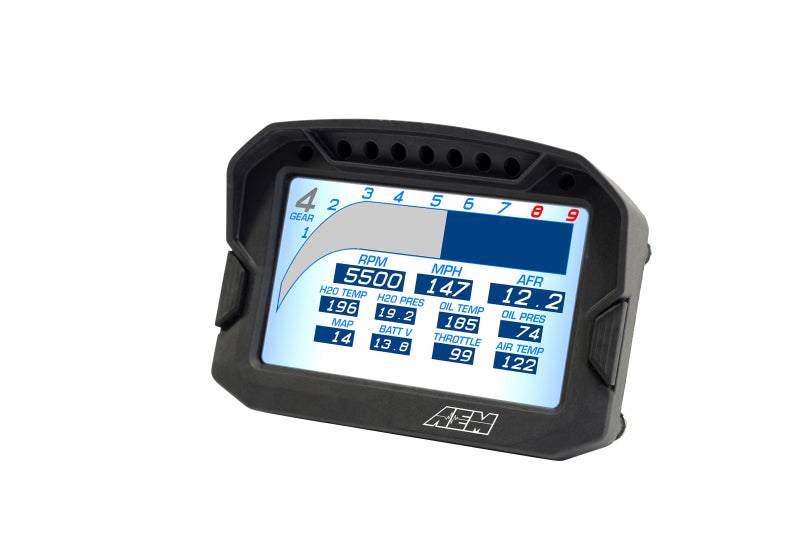

CD-5 Carbon Digital Dash Displays feature a full-color, daylight readable screen surrounded by a tough, lightweight flow-molded carbon fiber composite housing. Seven ultra-bright LEDs span the top of the display housing for RPM and shift light indication. Users can program them to ascend in specific increments based on RPM range and flash when it is time to shift. Brightness is user programmable on the fixed color LEDs. Two large buttons are included on the face of the display, allowing easy page changing and memory resetting even with driving gloves on. These button functions are included in the supplied rear connector, allowing the user to mount remote buttons. Two additional programmable LEDs are located above the toggle buttons on the top of the housing on either side of the integrated LED shift lights. Features & Benefits Add Vehicle Dynamics Module for GPS, 3-axis gyroscope and 3 axis accelerometer for G-loads, roll, pitch, yaw, track mapping and lap timing (PN 30-2206, sold separately) Accepts channels from two separate user programmable CAN bus connections - works with AEMnet enabled devices and non-AEM 3rd party devices side by side Install the CD-5 Carbon on carbureted and pre-2008 stock ECU-equipped vehicles using a 22 Channel...

Quantity

Quantity must be 1 or more

Product Info

Features & Benefits

Add Vehicle Dynamics Module for GPS, 3-axis gyroscope and 3 axis accelerometer for G-loads, roll, pitch, yaw, track mapping and lap timing (PN 30-2206, sold separately)
Accepts channels from two separate user programmable CAN bus connections - works with AEMnet enabled devices and non-AEM 3rd party devices side by side
Install the CD-5 Carbon on carbureted and pre-2008 stock ECU-equipped vehicles using a 22 Channel CAN Sensor Module (PN 30-2212, sold separately)
Accepts channels from 2008-up factory ECUs using Plug & Play OBDII CAN Adapter Cable (PN 30-2217, sold separately)

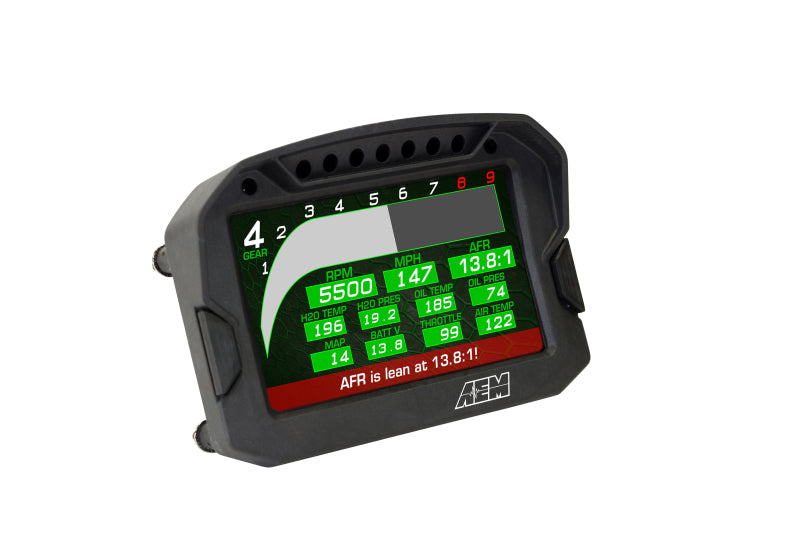

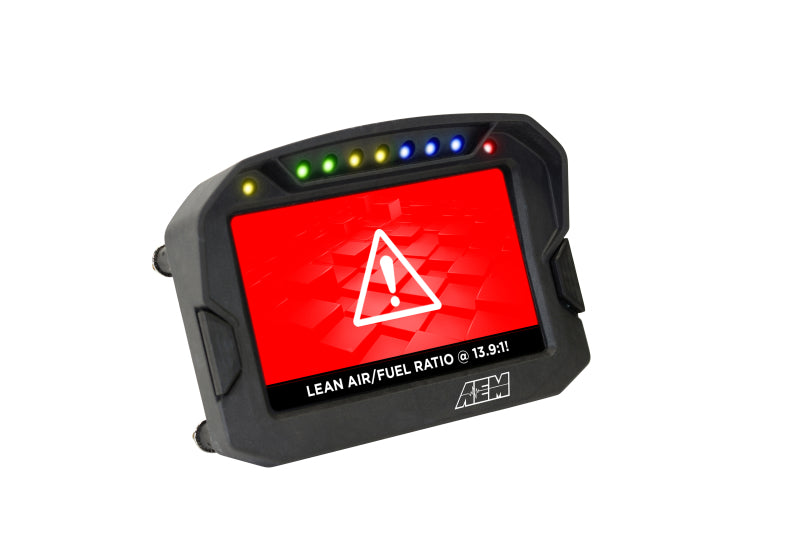

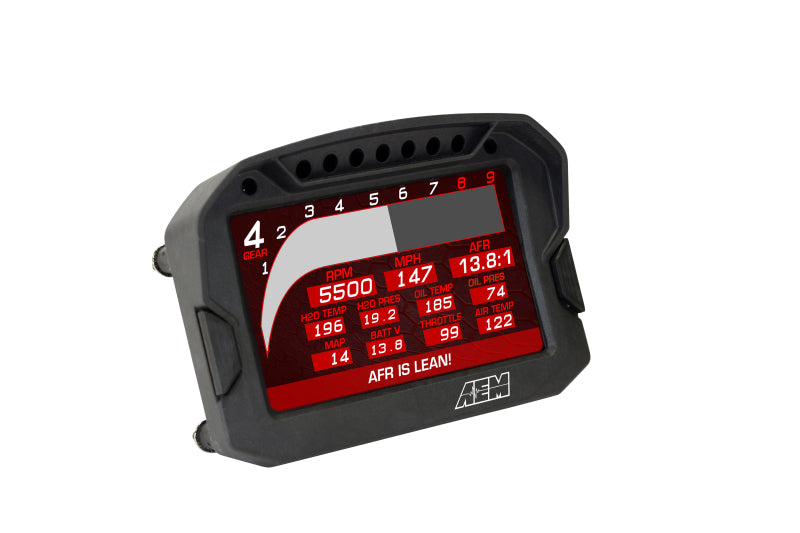

Dedicated Alarm page quickly identifies problems, programmable in almost any language! (user defined)
Two extra switch inputs included for displaying user-triggered events (blinkers, high beams etc.)
Unique On-Change page can be used to identify map switching for boost, traction, lap times, etc.
Over 200 supplied fully programmable SAE and custom warning icons, and you can add your own

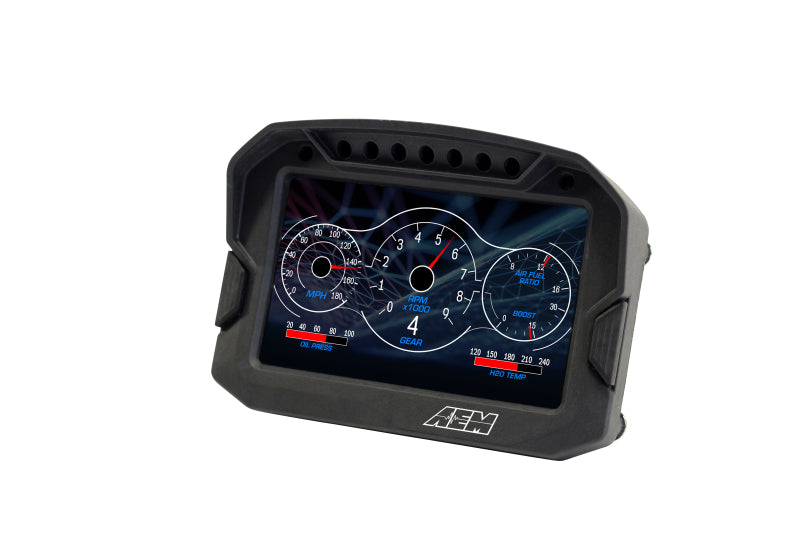

Use included page layouts and input your channels and text, or create your own from scratch
User supplied graphics can be changed based on channel values (up to the full screen size)
Seven programmable pages including four Main pages, Alarm, On-Change and Start-up pages

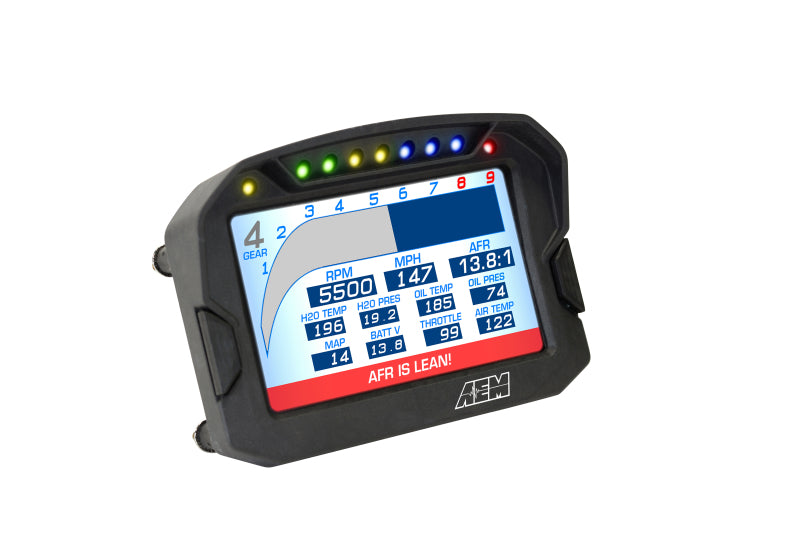

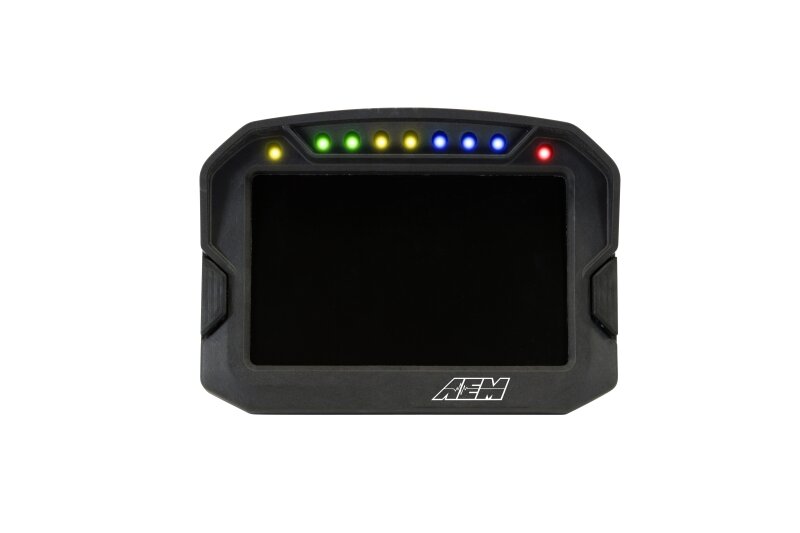

Seven LED RPM/shift light indicators on top of the housing (programmable and dimmable)
IP66 water resistance allows for operation in boats and motorcycles without worry
Plug & Play Adapter Cables available for Holley, Link, MSD Atomic and Vi-Pec ECUs
Convert CAN bus channel values to user-defined text in multiple languages
Available with or without 200Mb internal logging (up to 1,000Hz/channel)
'Headlight-in' connection dims the dash and LEDs during night operation
Direct sunlight readable (1000cd/m2 brightness and anti-glare filter)
Rugged, lightweight flow-molded carbon fiber composite enclosure

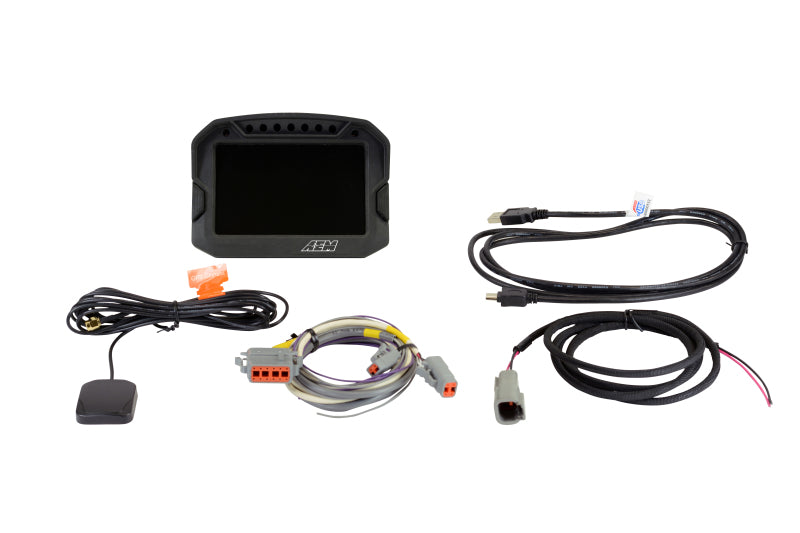

Available with or without on-board GPS receiver and antenna
Layout files interchangeable with all versions of the CD-7
Wiring interface/harness is identical to the CD-7
Full color 5" screen with 800x480 resolution
Total display weight of 11.7 oz./331 grams
Free DashDesign Graphics Editor software
Two programmable LEDs
Odometer function
