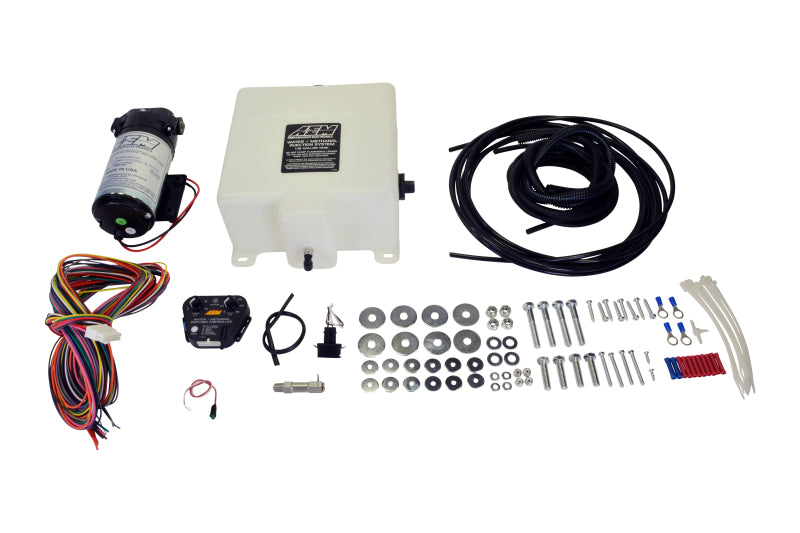

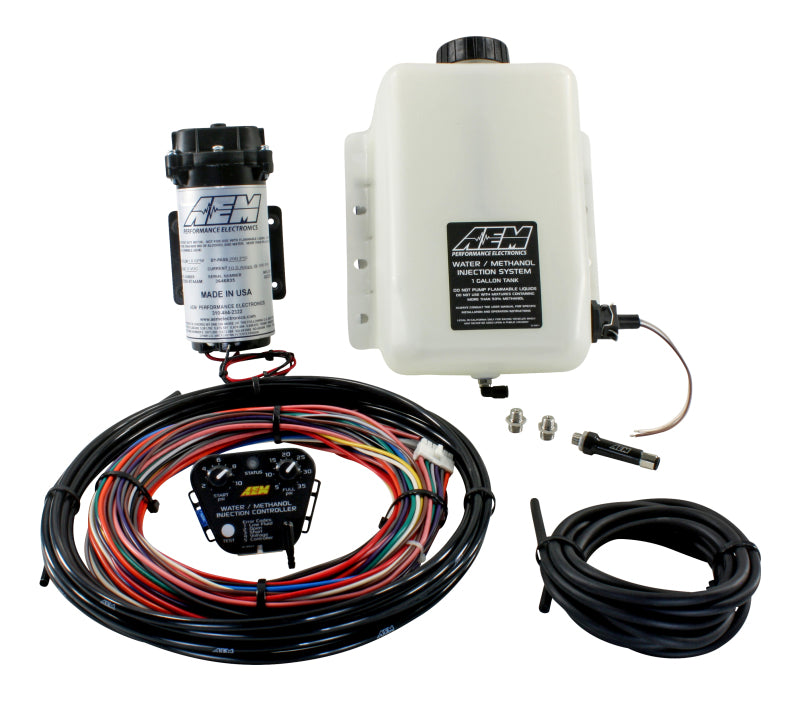

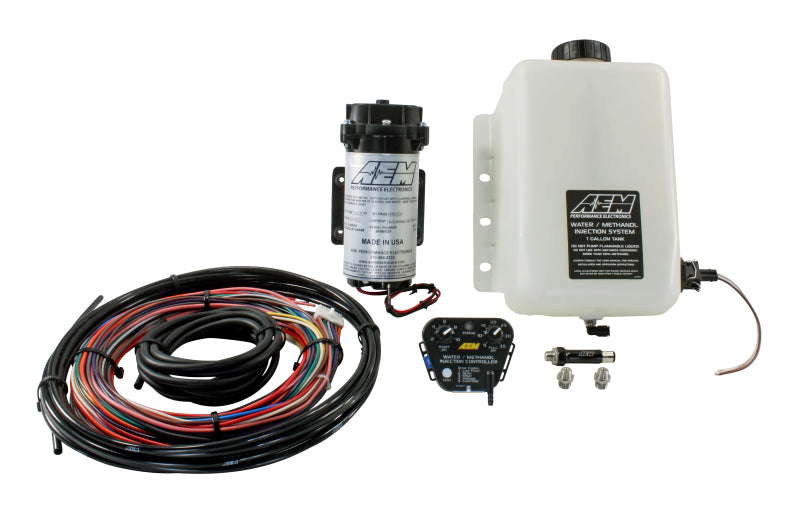

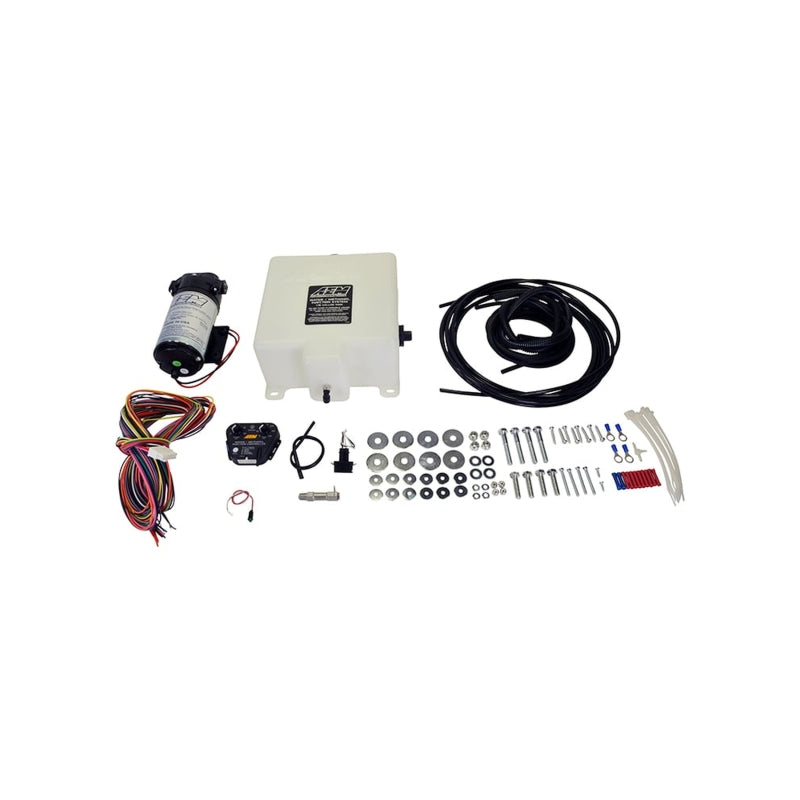

AEM V3 1 Gallon Water/Methanol Injection Kit (Internal Map) - 30-3300

Brand: AEM

SKU: aem30-3300

availability: In stock

$652.95 $520.95

These new controllers retain the "Boost Safe" injection failsafe system, which is an output that will activate if there is a short, loss of continuity or high or low voltage or low fluid condition, allowing users to define their failsafe strategy from something as simple as flashing a warning light to more advanced strategies like pulling boost or ignition, or switching fuel maps on a standalone engine management system.Simplified WiringThe new wiring harness is terminated with a positive-lock connector on one end and has color-coded wires to ease installation. An integrated Pump Ground circuit is included in the harness which simplifies the wiring process and eliminates any chance of the pump accidentally activating from a short in the system. An additional wire is included for adding an optional on/off solenoid to stop fluid flow when the system is inactive.Improved Injector Flow Rate & Nozzle SizesAEM's engineers spent extensive time revamping the controller's flow control strategy for a more linear flow output delivery. This means that the flow delivery better matches an engine's need for water/methanol injection, which further optimizes charge air cooling and detonation control. Three resized injector nozzles are in each kit and allow for improved flow capability (a...

Quantity

Quantity must be 1 or more

Product Info

Features & Benefits

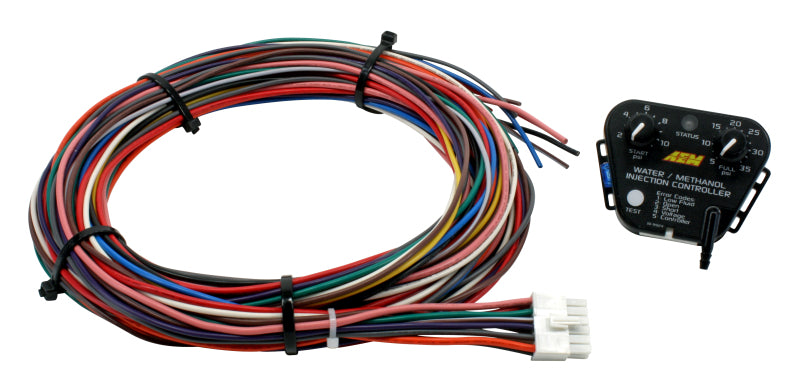

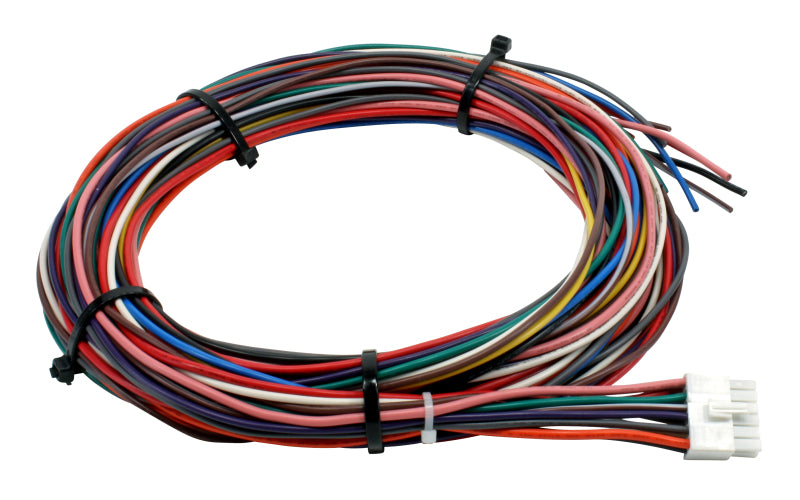

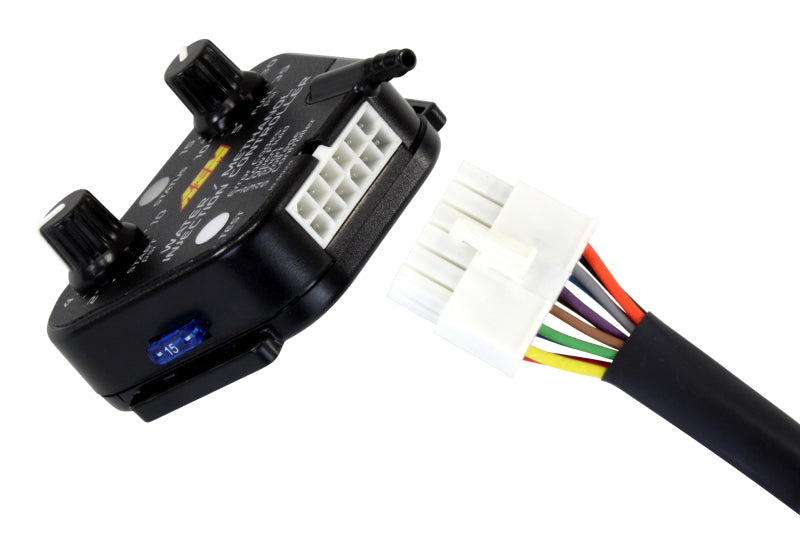

Terminated harness features positive lock connector with integrated pump ground circuit and additional wire for optional on/off flow solenoid

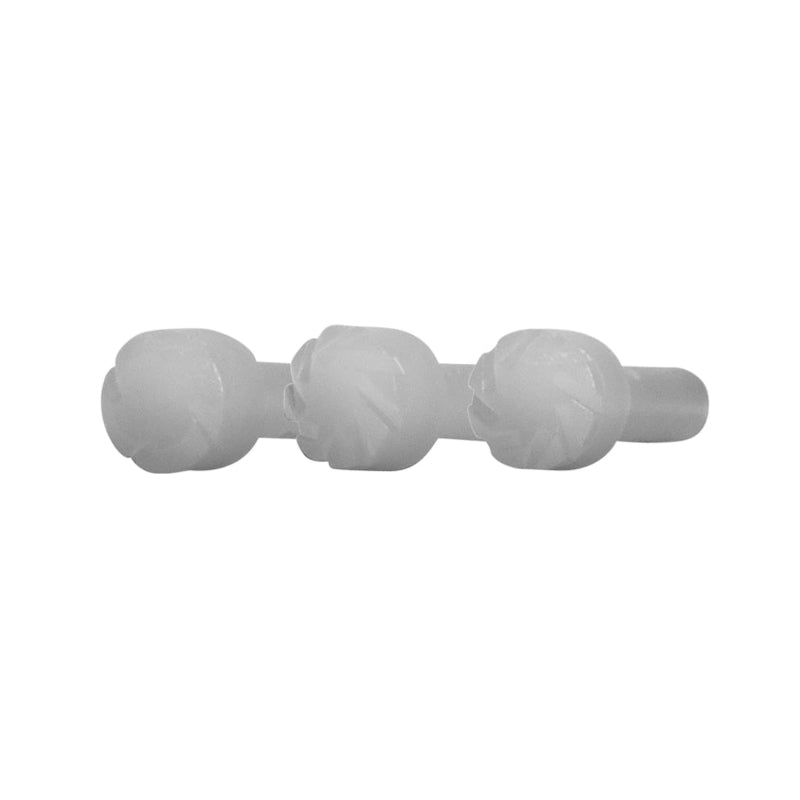

Three interchangeable injector nozzles to cover a wide variety of HP levels (250cc/min, 500 cc/min & 1,000cc/min)
30-3350 Multi Input kit for high compression naturally aspirated and forced induction applications
30-3300 Boost Dependent kit (up to 35PSI) includes molded-in nipple for boost hose
One machined billet injector with integral check valve to prevent unintended flow

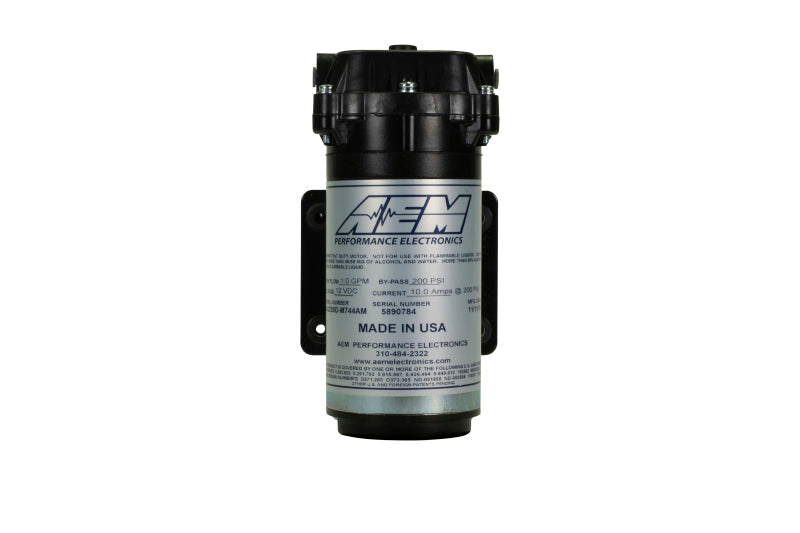

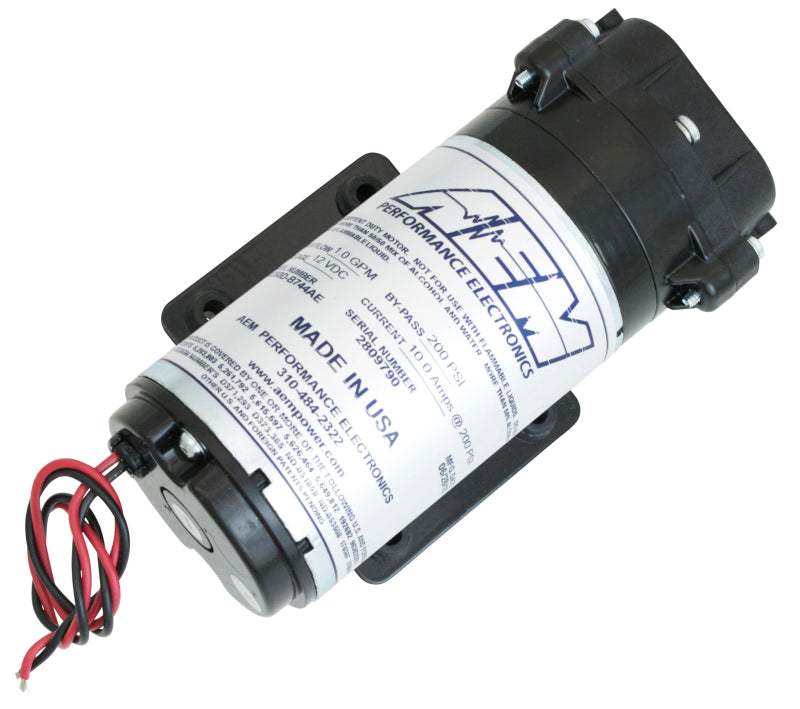

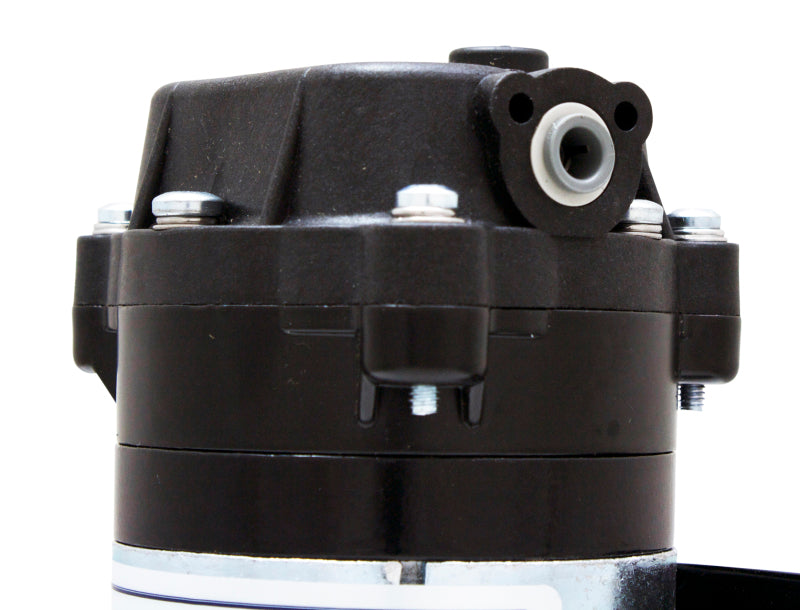

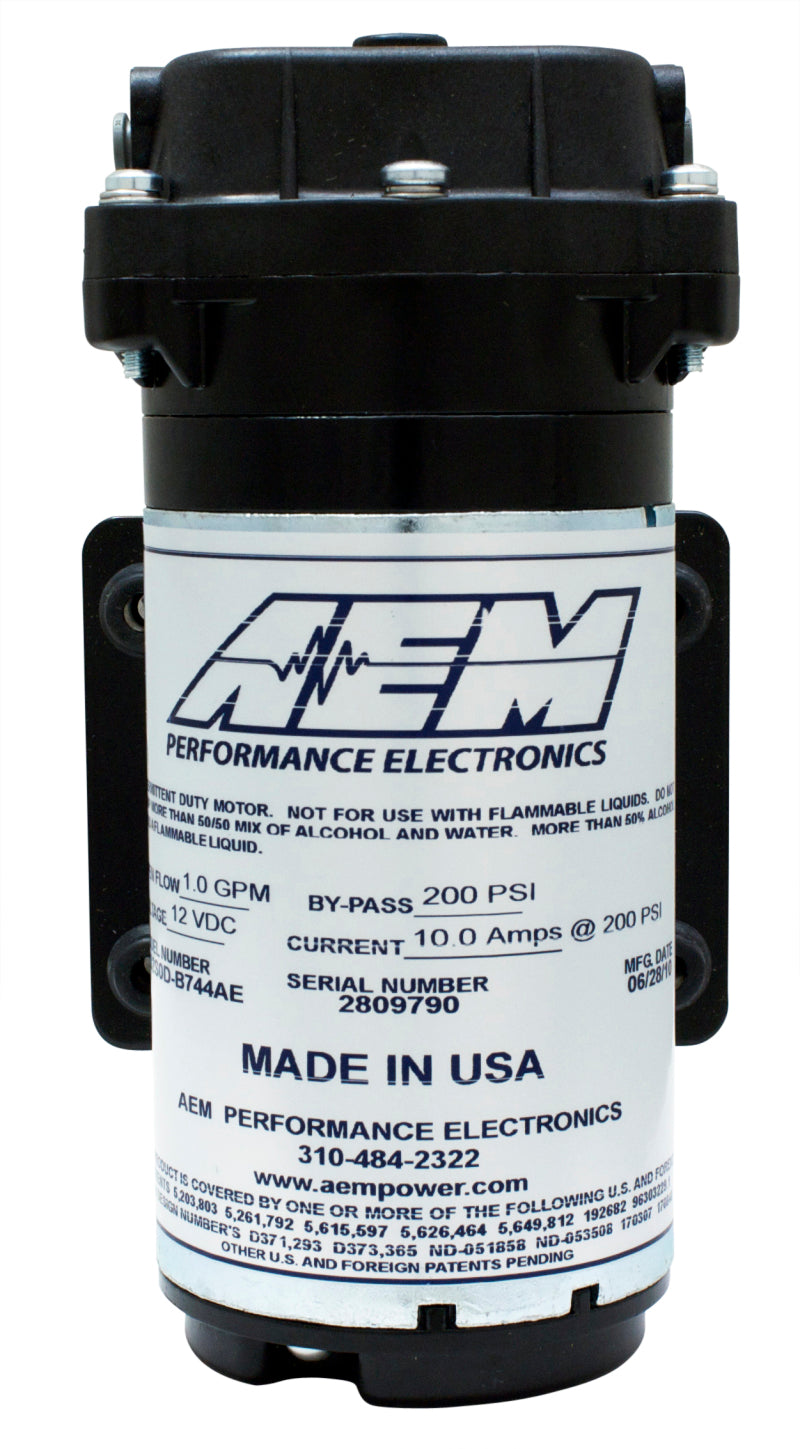

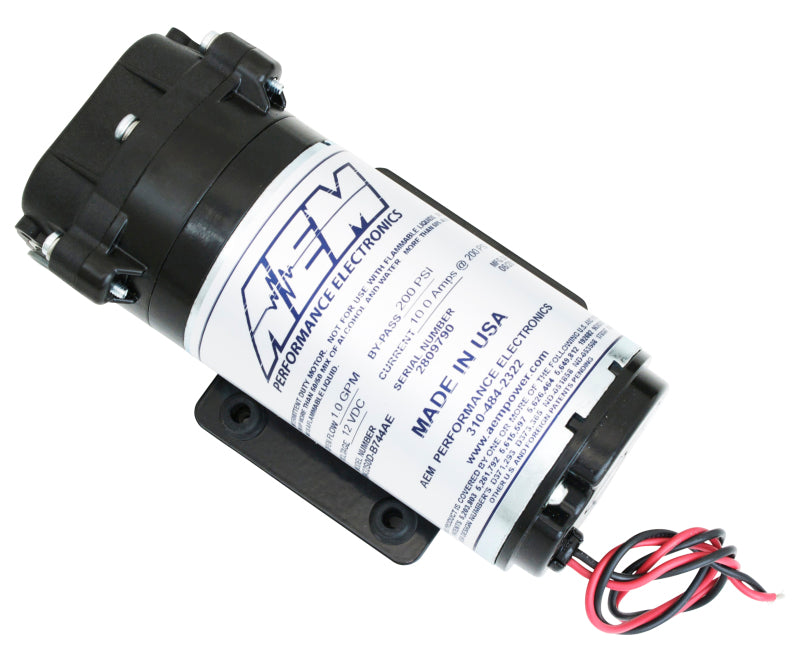

Recirculation-style pump with integral fittings for quiet operation

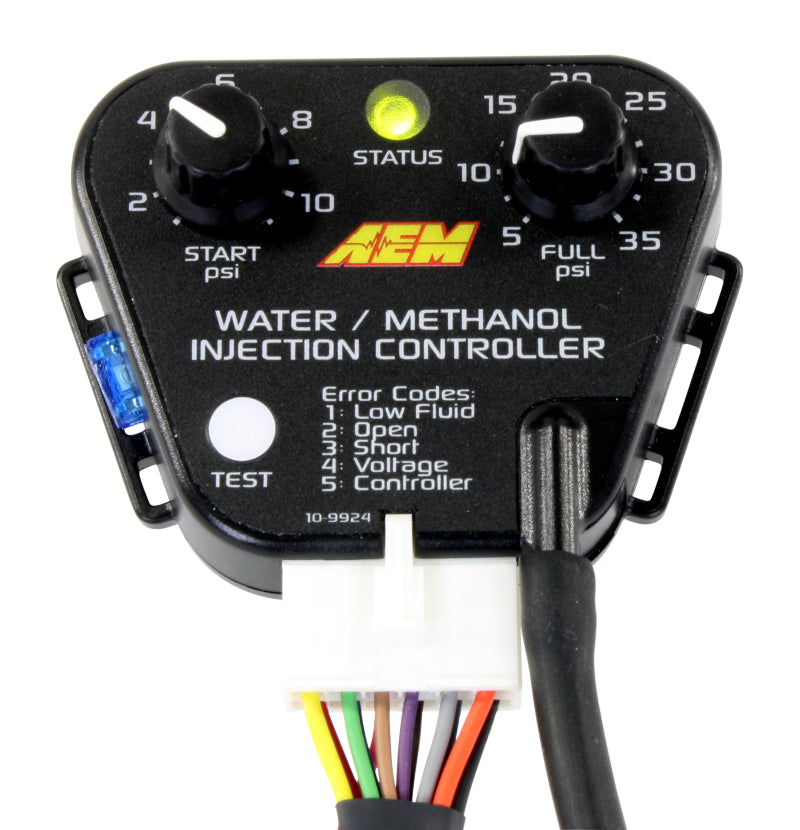

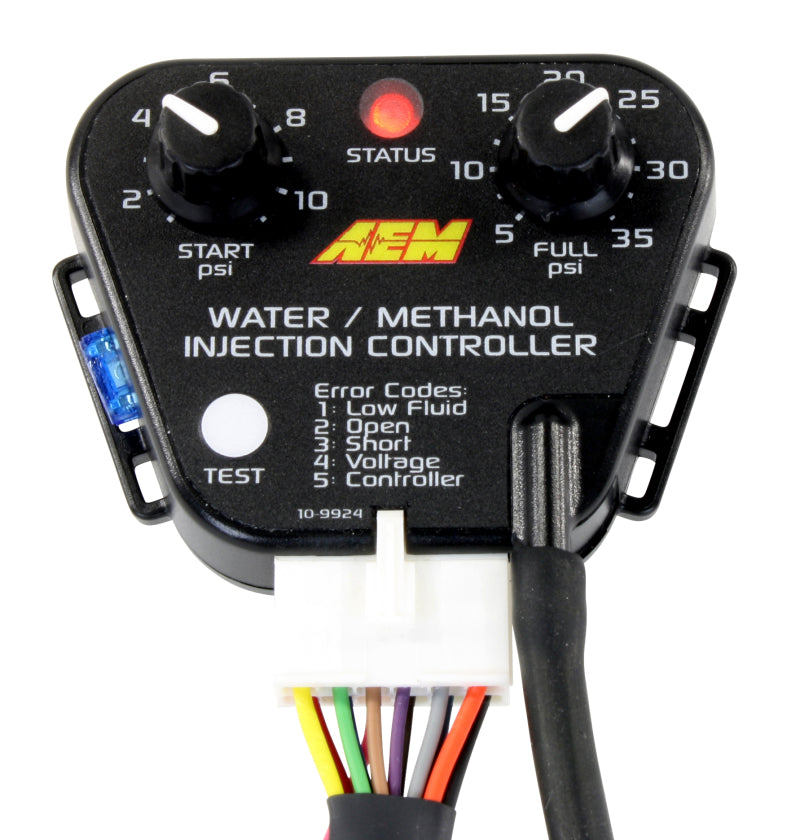

Covered status LED and test button for improved splash resistance
Integrated plug for mating to positive-lock connector on harness

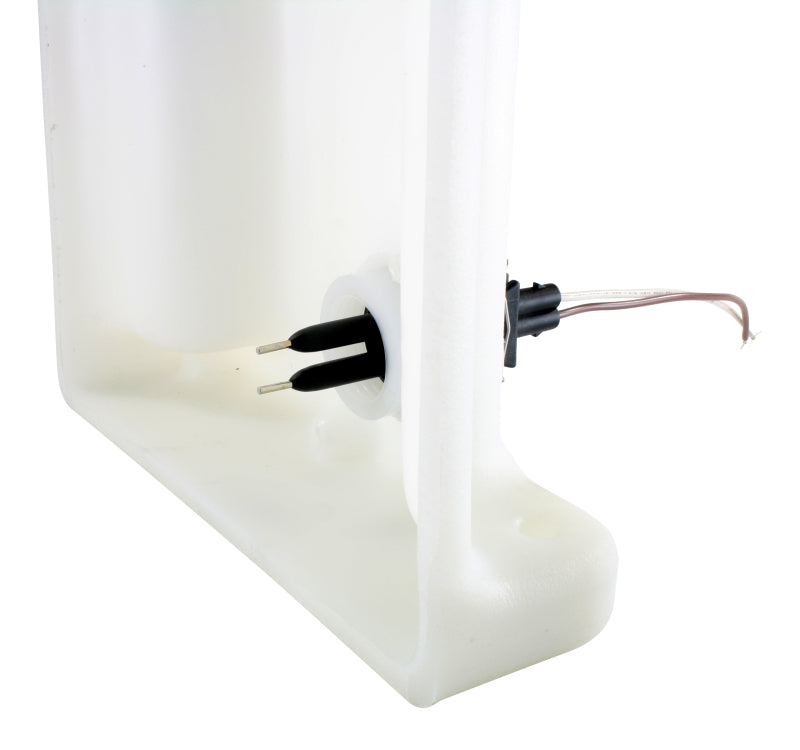

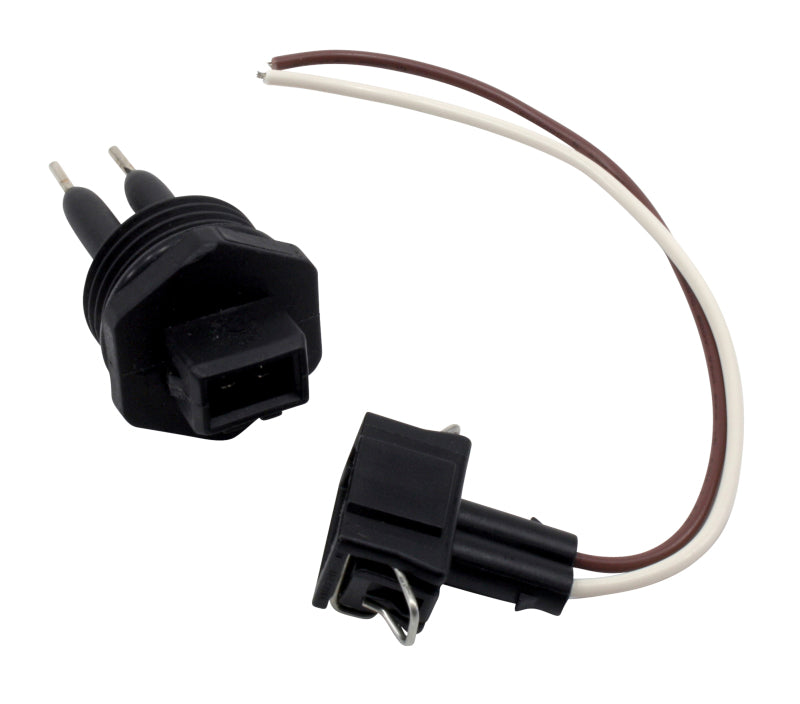

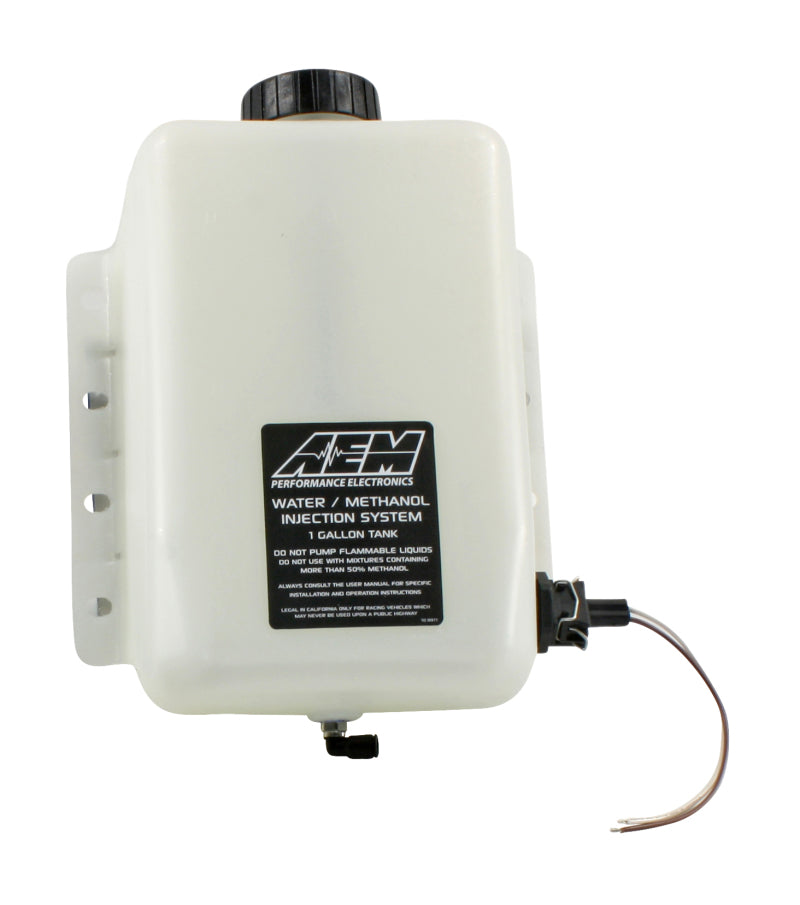

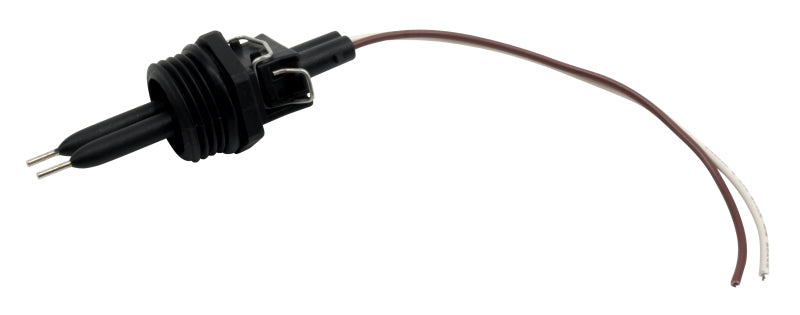

1-gallon tank with built-in conductive low fluid level indicator

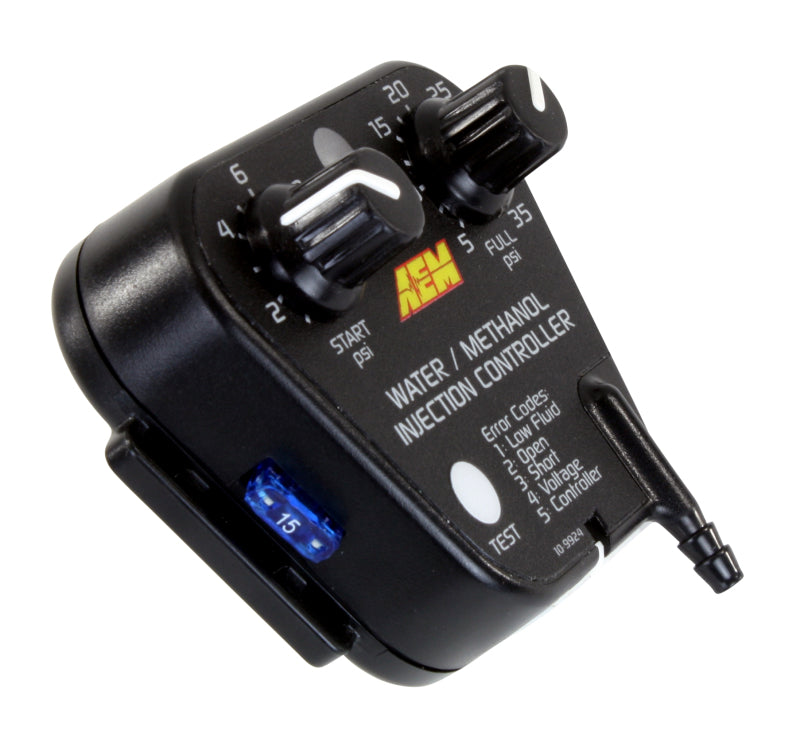

Large adjustment knobs and numbering for easy programming
LED dash light for system status and low fluid warning
Includes "Boost Safe" readiness failsafe system
20 ft. of high-pressure nylon injection tubing
Integrated fuse and mounting tabs
CONTROLLER FEATURES:
