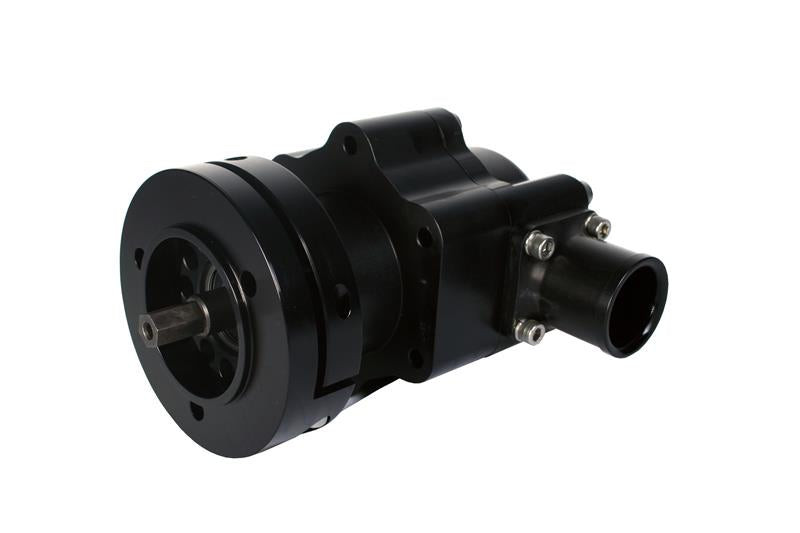

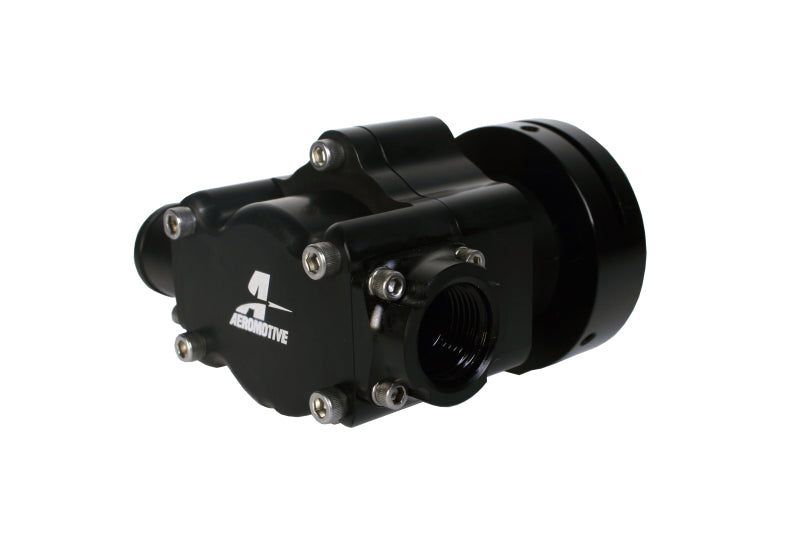

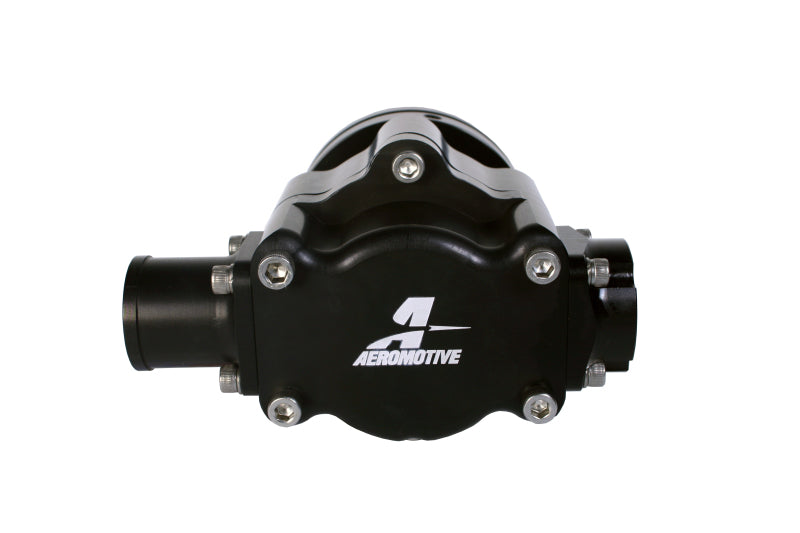

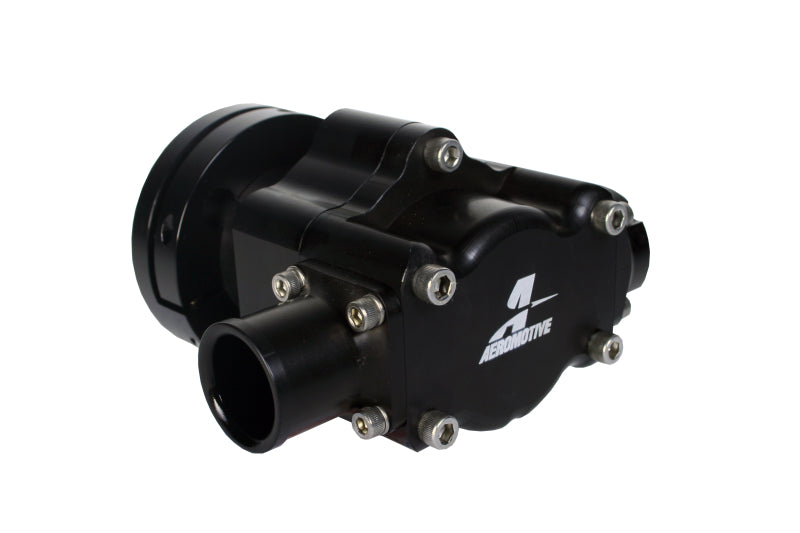

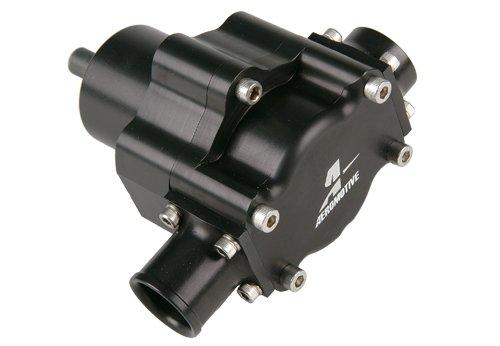

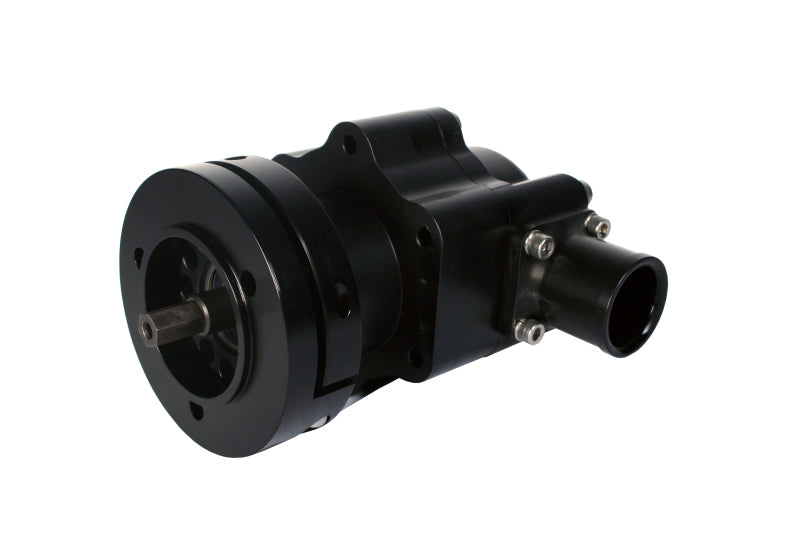

Aeromotive Atomic Hex Drive Fuel Pump - 11117
- Catalog SKU
- aer11117
- Manufacturer part #
- 11117
- ✓Secure checkout
- ✓Enthusiast support
- ✓Free shipping on eligible $300+ merchandise subtotals in the lower 48 states
- Returns policy
Some products and vendors are excluded, including freight/LTL and oversized items.
One Parts Desk request covers fitment, availability, and timing.
Price matches are reviewed before purchase and are not guaranteed.
Project Garage
Plan this exact partSave the selected option to a build plan in this browser. No account required.
Fitment is not verified for your saved vehicle.
Product details
Product information
Overview
12 GPM Hex Drive Mechanical Fuel Pump. Designed to feed serious EFI and Carbureted engines, gasoline, ethanol or methanol. The 12 GPM Hex Drive Pump must be driven by a 3/8" female hex, allowing the pump to be driven from your camshaft or off the back of a properly prepared dry-sump oil pump. It may also be mounted off the engine, or in the back of the vehicle, driven by a Heavy Duty Cable Drive like that from Waterman Racing. It can be used in high or low pressure applications. Flows u p to 12 GPM. 5,000 HP on gas, up to 2500 HP methanol. High efficiency, Gerotor pumping mechanism. Tough, Type III hard coat anodized body. CNC Machined from 6061 T6 aircraft aluminum. Hex Drive Collar with 3-bolt Enderle bolt pattern. Standard male 3/8" hex driveshaft. Includes both 1.25' barb and AN-16 Male inlet. ORB-12 female outlet port. EFI applications require high-flow bypass regulators.
direct drive provides convenience; can handle either gas or alcohol; supports around 5000 HP with gas; supports around 2500 HP with methanol
Features & Benefits
- EFI applications require high-flow return style regulators: P/N 13132, 13133, 13137 or 13113.
- Sold Separately: Electric Priming/Starting Kit: P/N 17301

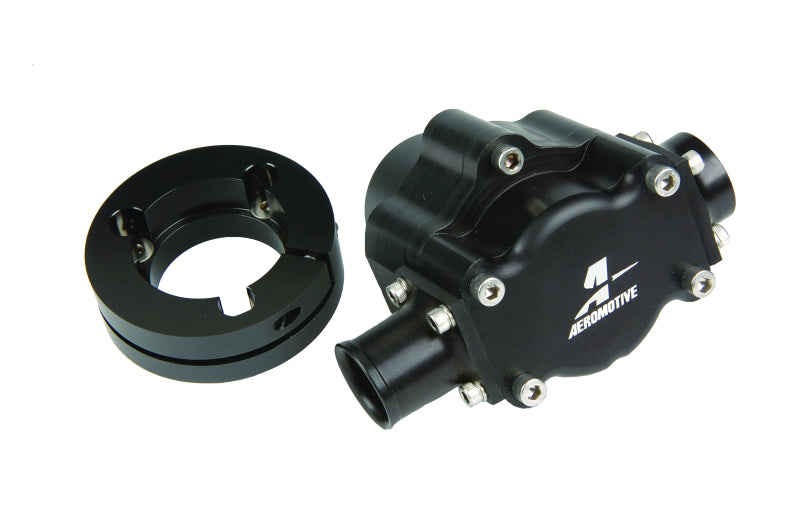

- Hex Drive Collar with 3-bolt Enderle bolt pattern.

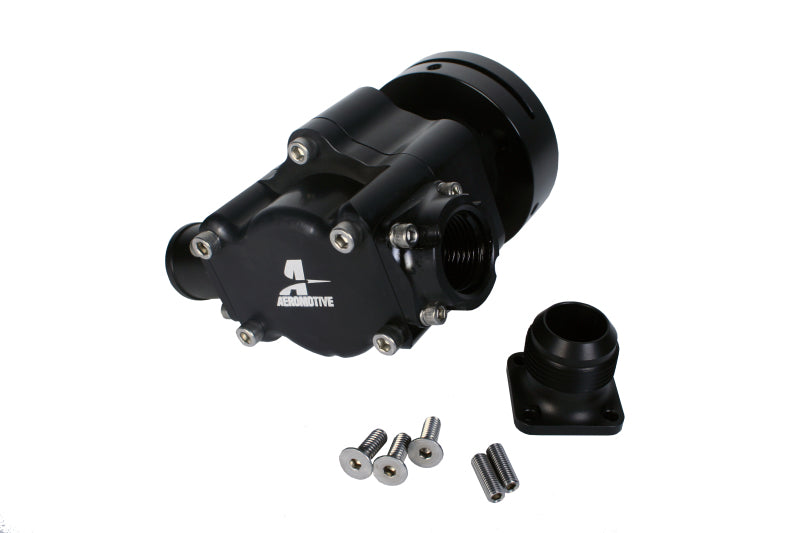

- Includes both 1.25′ barb and AN-16 Male inlet.
- CNC Machined from 6061 T6 aircraft aluminum.
- High efficiency, Gerotor pumping mechanism.
- 5,000+ HP on gas, up to 2500 HP methanol.
- Tough, Type III hard coat anodized body.
- Standard male 3/8″ hex driveshaft.
- ORB-12 female outlet port.

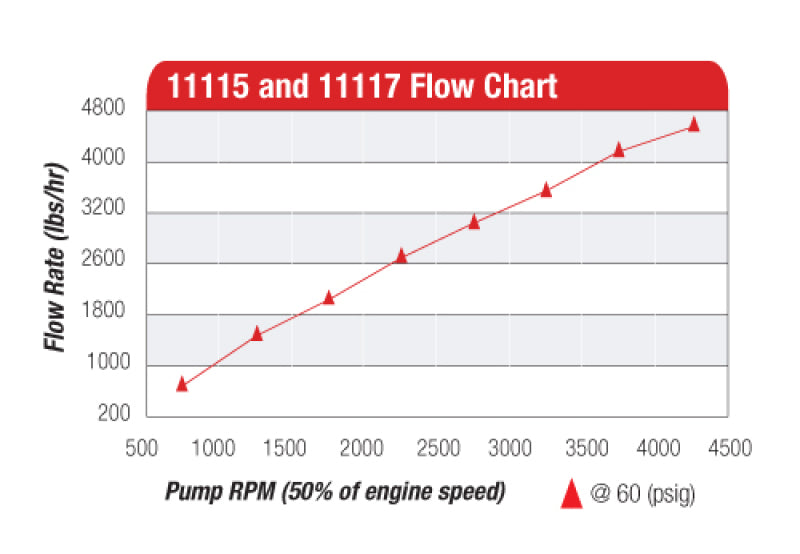

- Flows up to 12 GPM
