CSF 11-16 BMW 135i(X) 5 Door F20 / M135i(X) 3 Door F21 Race-Spec Oil Cooler - 8145
- Catalog SKU
- csf8145
- Manufacturer part #
- 8145
- ✓Secure checkout
- ✓Enthusiast support
- ✓Free shipping on eligible $300+ merchandise subtotals in the lower 48 states
- Returns policy
Some products and vendors are excluded, including freight/LTL and oversized items.
One Parts Desk request covers fitment, availability, and timing.
Price matches are reviewed before purchase and are not guaranteed.
Project Garage
Plan this exact partSave the selected option to a build plan in this browser. No account required.
Fitment is not verified for your saved vehicle.
Product details
Product information
Overview

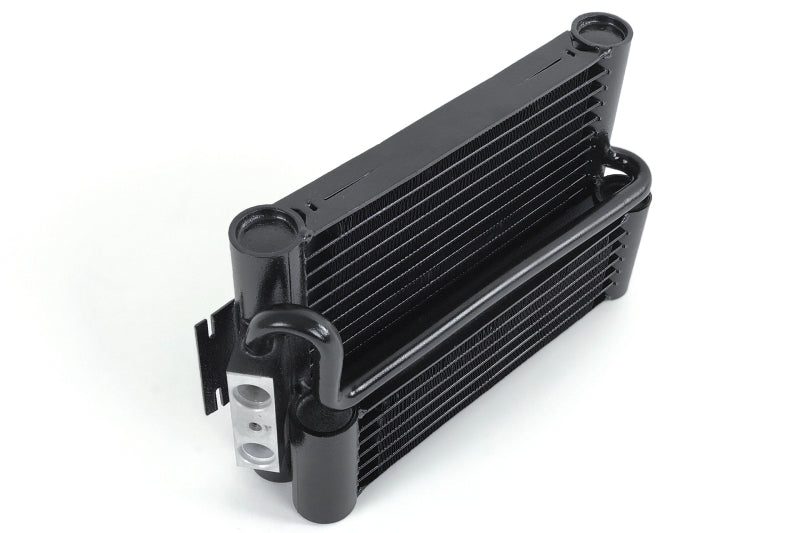

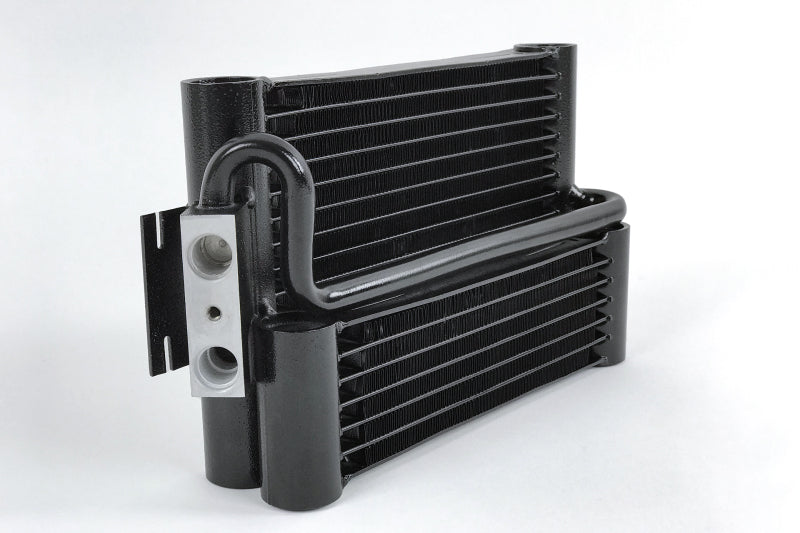

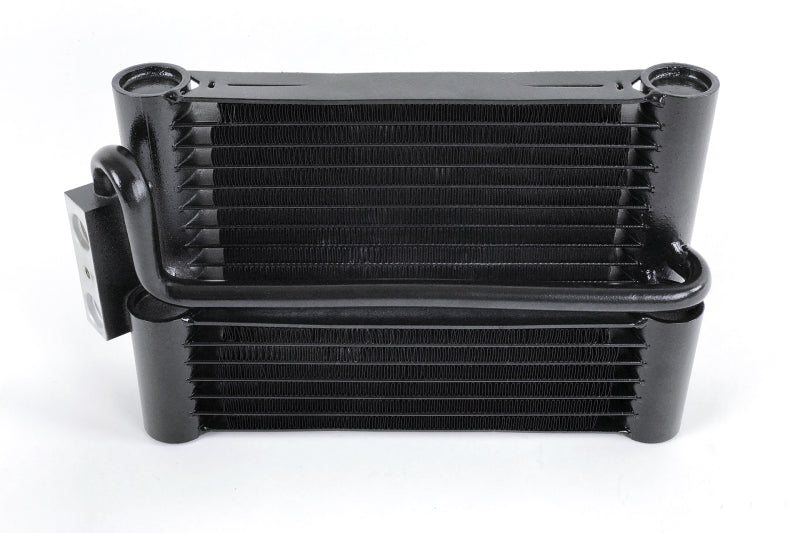

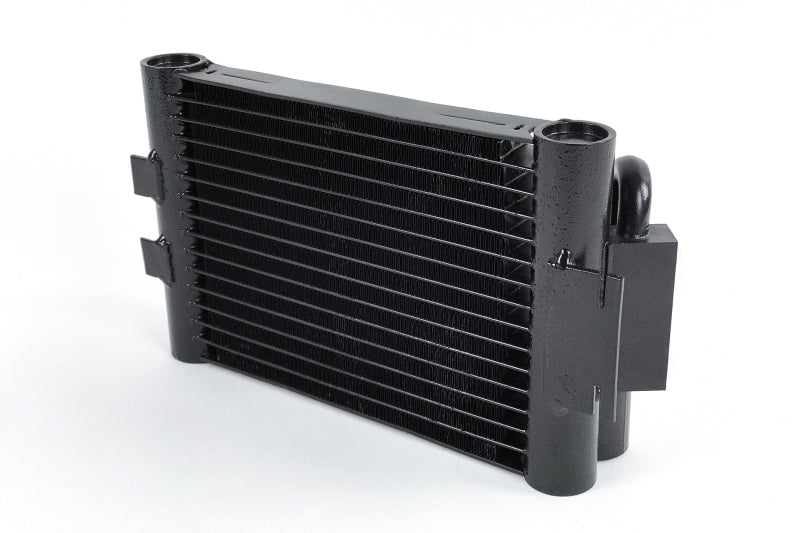

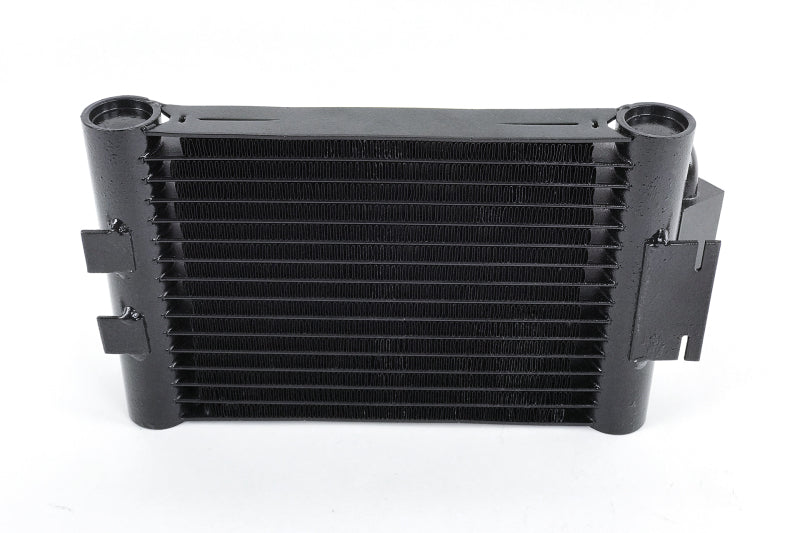

Utilizing CSF's AC Condenser technology, their innovative dual-core in-series system features an additional 5 rows of super-high pressure multi-channel micro-tubes on the rear side of the oil cooler. The high performance tube spec, along with the high-efficiency multi-louvered fin design allows for maximum surface area contact and an approximate 40% increase in heat rejection. The High-Performance Race-Spec Oil Cooler directly replaces the factory unit, easily bringing engine oil temperatures down to a consistent and manageable level, even under extreme & extensive driving conditions.
The CSF #8145 Cooling product is designed to be a "Drop-In Fit" application. The product will install in the OEM Location with no modifications necessary unless otherwise noted or instructions are included in the product package. Please see the manufacturer repair manual for standard installation instructions. If you do not feel confident installing this product CSF recommends taking it to a qualified installation facility.
Features & Benefits
- "Drop-In Fit" Requiring No Modifications to Install - Accepts All Attaching OEM Components Including Oil-Line Connections, Mounting Brackets and Shroud/Ducting
- Requires Additional Half Quart for Proper Fill-up During Installation (OEM Cooler: 7 Qts./ CSF's Upgrade Race-Spec N55 Oil Cooler: 7.5 Quarts)
- Secondary In-Series Backside Cooler has an Additional 5 Rows of Cooling for a 40% Increase in Heat Rejection
- Made with CSF's AC Condenser Technology Using a 1-Row Super-High Pressure 26mm Multi-Channel Microtube
- World's 1st and Only True "Plug-And-Play" Upgraded Engine Oil Cooler for the BMW N55 Engine
- Converted to a Single-Pass Design with High Pressure Return Line for Optimal Flow
- High-Density Multi-Louvered Fin Design for Maximum Surface Area Contact
- Track Tested and Proven by Hittman Racing's M235iR Endurance Race Car
- Innovative 2-Core In-Series System
Application & fitment
Fitment has not been independently verified for your vehicle. Confirm the manufacturer application against your year, make, model, trim, and modifications before ordering.
Shipping & availability
Processing and carrier timing vary by stock status and destination. Final shipping services and costs are confirmed at checkout.
