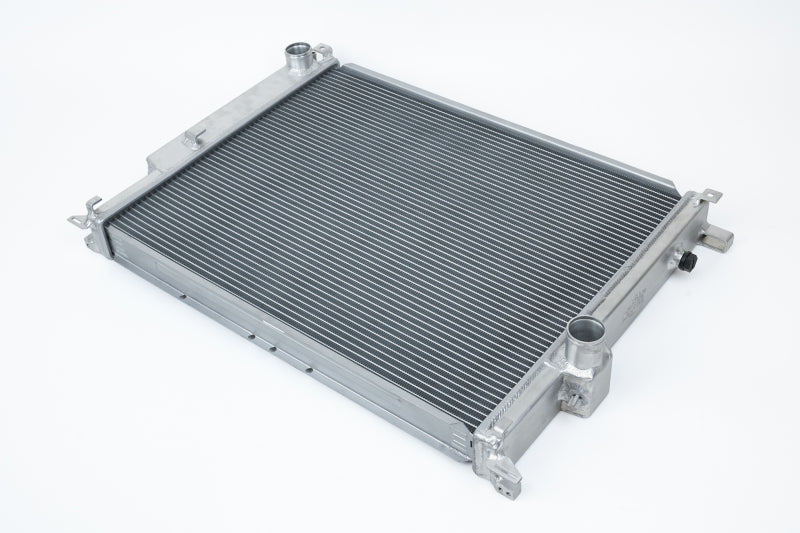

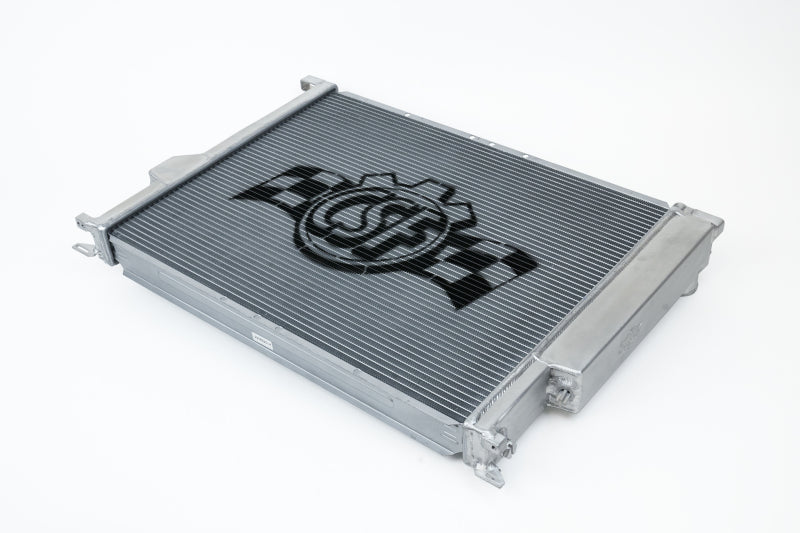

CSF BMW S54 Swap Into E36 / E46 Chassis High Performance Radiator - 7211
- Catalog SKU
- csf7211
- Manufacturer part #
- 7211
- ✓Secure checkout
- ✓Enthusiast support
- ✓Free shipping on eligible $300+ merchandise subtotals in the lower 48 states
- Returns policy
Some products and vendors are excluded, including freight/LTL and oversized items.
One Parts Desk request covers fitment, availability, and timing.
Price matches are reviewed before purchase and are not guaranteed.
Project Garage
Plan this exact partSave the selected option to a build plan in this browser. No account required.
Fitment is not verified for your saved vehicle.
Product details
Product information
Overview

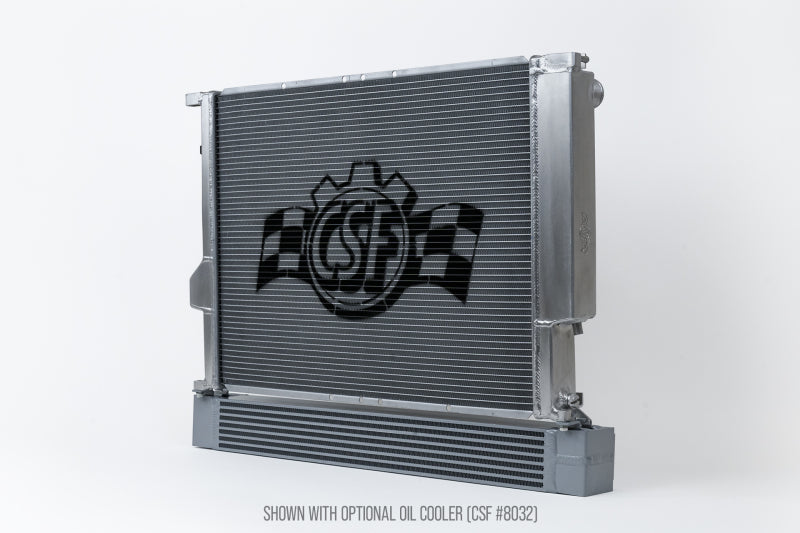

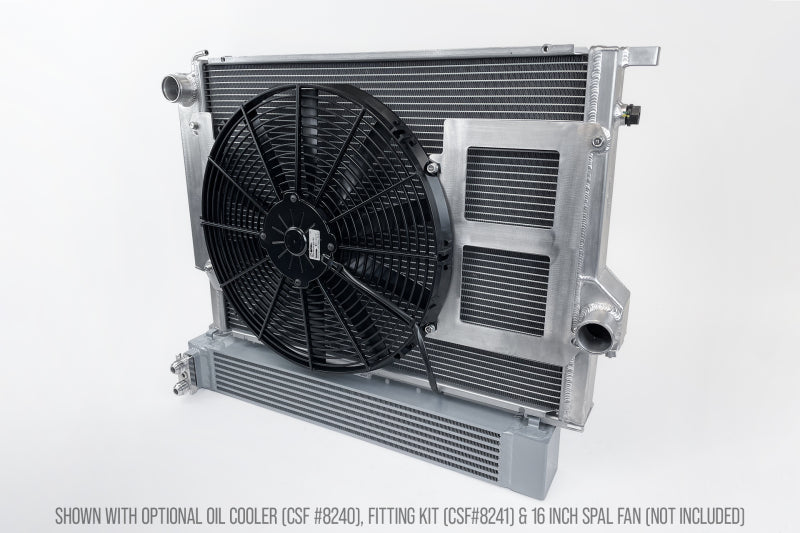

Because the S54 requires a much more robust oil cooling system than the E36's S52, CSF made special provisions to fit two different race spec oil coolers. To do this, the height of the radiator was reduced slightly so the oil coolers can fit under it in a factory style location. The radiator includes mounting brackets which can be adjusted to fit both oil coolers (CSF #8032 & #8240). CSF also includes brackets for an electric fan conversion. These brackets are designed to fit a single 16 inch SPAL Fan (not included). While it is possible to retain a clutch type fan, it is much easier to convert to an electric fan on top of the performance benefits.
The CSF #7211 Cooling product is designed for engine swap applications. The product will install in the OEM Location but may require special hoses or connections. If you do not feel confident installing this product CSF recommends taking it to a qualified installation facility.
Features & Benefits

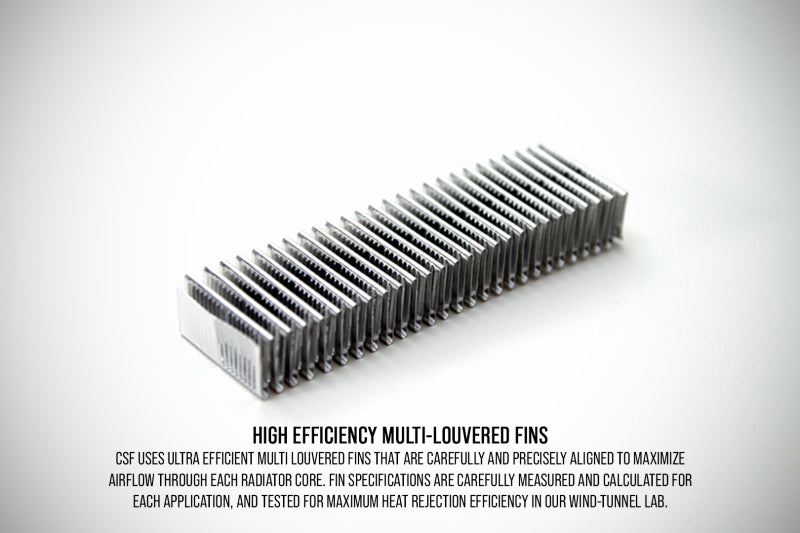

- 6.5mm Tall Ultra Efficient Fins with a Multi-Louvered Design for Maximum Surface Area Contact

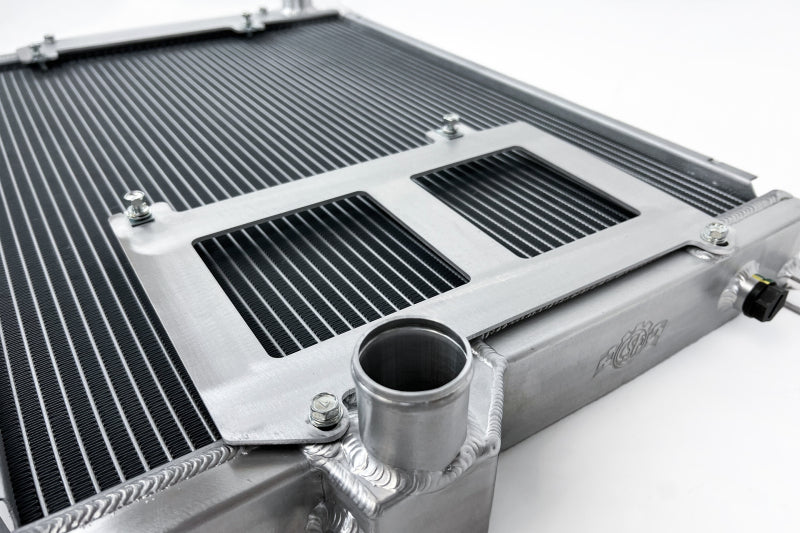

- Includes 2 top covers (black and satin) to cover the top plate for a clean OEM+ look
- True Plug-and-Play "Drop-in Fit" Installation Requires Absolutely No Modifications

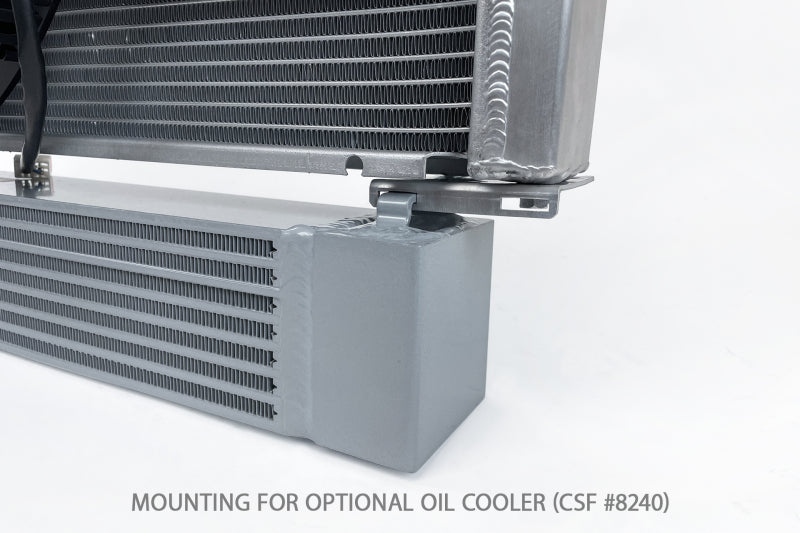

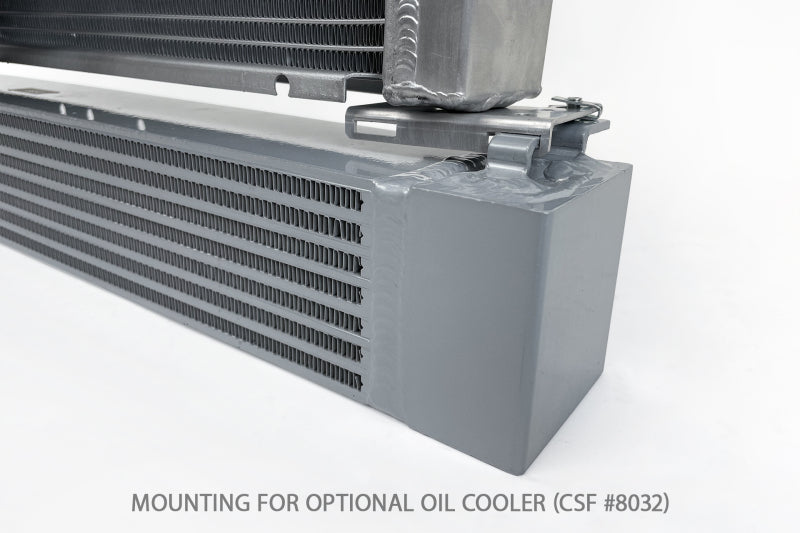

- Includes Oil Cooler Mounting Brackets that fit both the CSF #8240 & CSF #8032

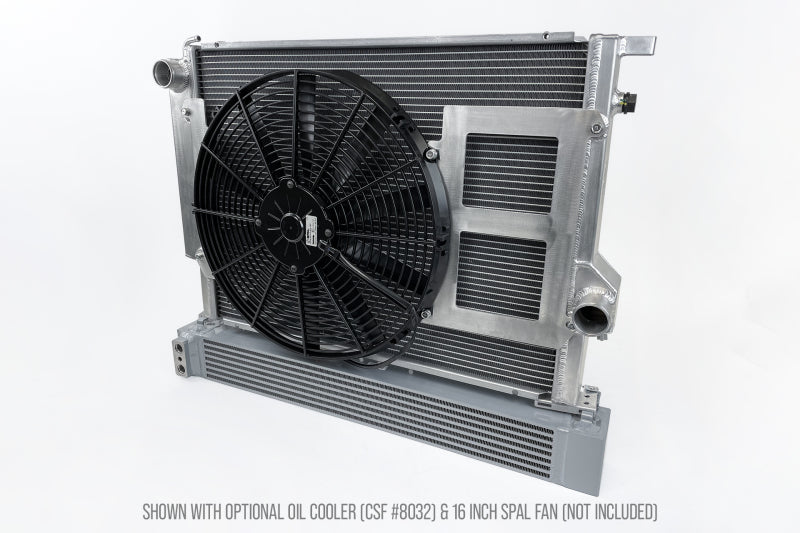

- Includes fan brackets for 16 inch SPAL Fan (SPAL #30100400 - not included)

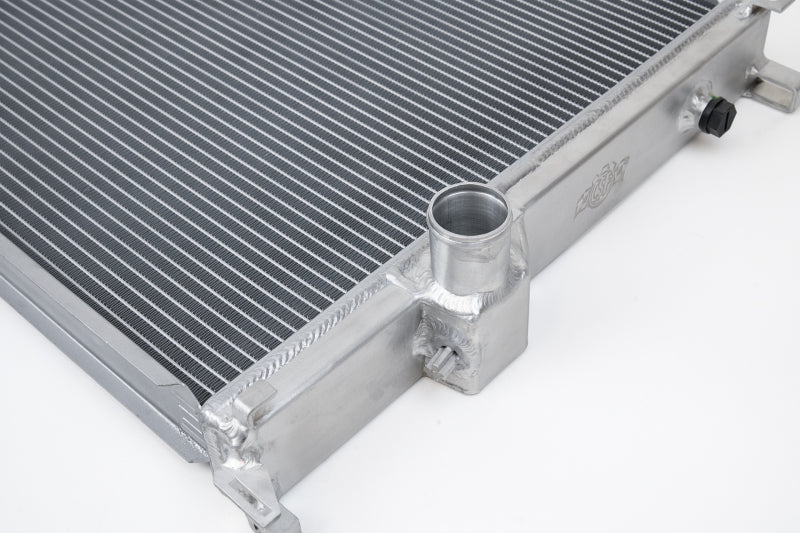

- CNC Machined Mounting Brackets, Fittings, and OEM Style Inlet/Outlet
- 100% All Aluminum TIG-Welded Construction
- 2-Row - 42mm Ultra-High-Performance Core
- Individually Leak and Pressure Tested

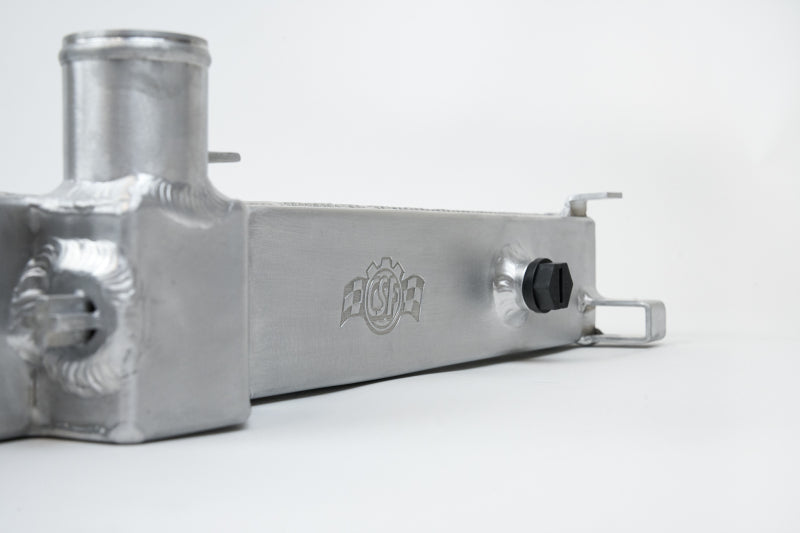

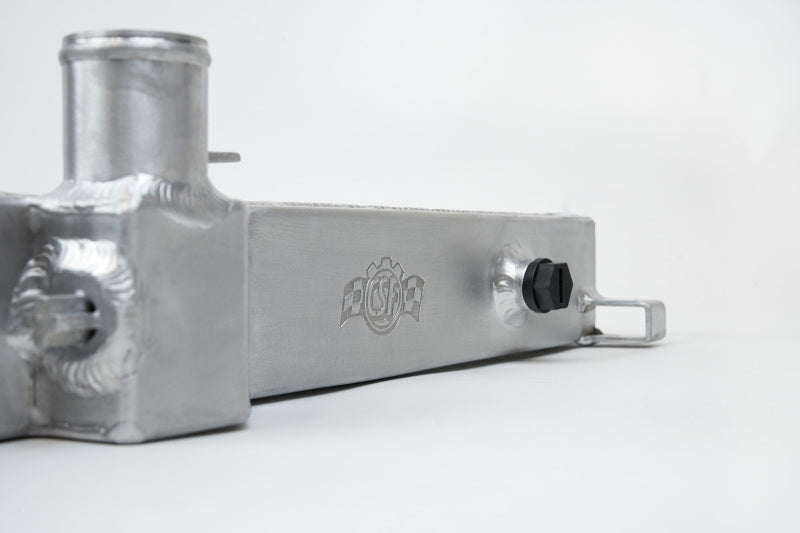

- All-Aluminum Race Style Drain Plug

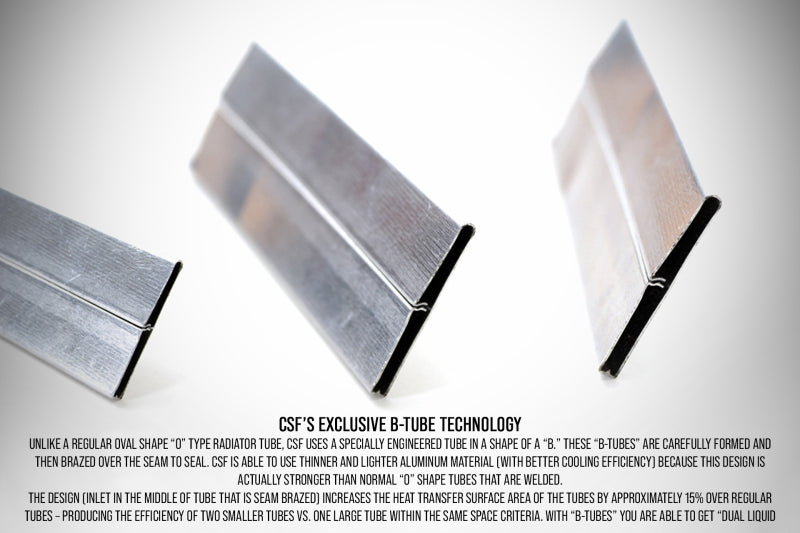

- CSF's Exclusive B-Tube Technology
- 2-Year Limited Warranty
- Smooth Satin Finish
