CSF

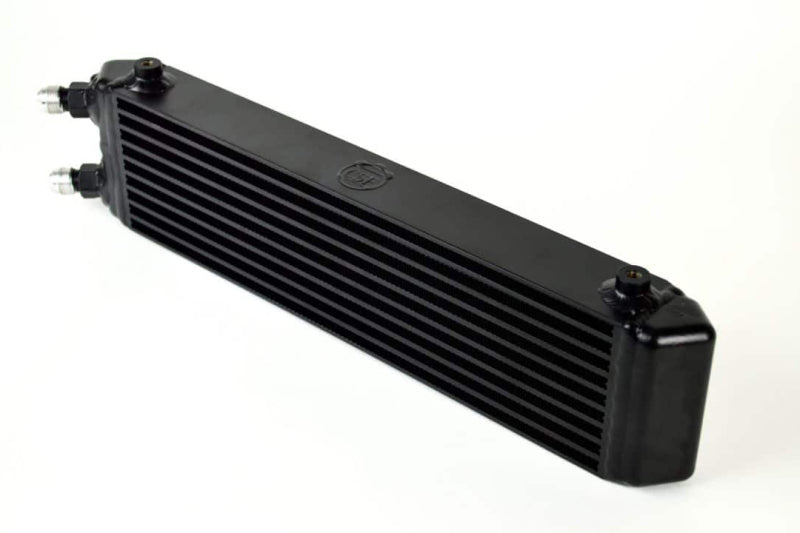

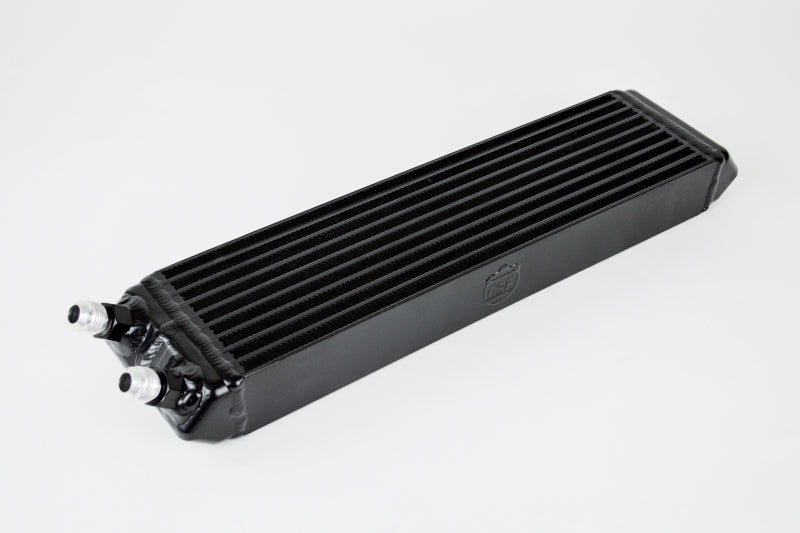

CSF Universal Dual-Pass Internal/External Oil Cooler - 22.0in L x 5.0in H x 2.25in W - 8066
- Catalog SKU
- csf8066
- Manufacturer part #
- 8066
- ✓Secure checkout
- ✓Enthusiast support
- ✓Free shipping on eligible $300+ merchandise subtotals in the lower 48 states
- Returns policy
Some products and vendors are excluded, including freight/LTL and oversized items.
One Parts Desk request covers fitment, availability, and timing.
Price matches are reviewed before purchase and are not guaranteed.
Project Garage
Plan this exact partSave the selected option to a build plan in this browser. No account required.
Fitment is not verified for your saved vehicle.
Product details
Product information
Overview
The unique design of CSF's oil cooler line has distinct advantages over conventional style oil coolers (plate-type/stacked oil coolers). The oil coolers can be placed in tighter spaces or different areas of the vehicle that don't have much vertical surface area. Longer rectangular sizes can also help with avoiding the stacking of too many coolers which may cause airflow issues to other components in the cooling system. Inlet/outlet port placement is much easier to route oil lines. Typical oil cooler lines have to be routed from different/opposite ends of the cooler often facing up or down. Usually one line has to run across from one side of the cooler to the other to then be routed together to the feed/return connection of the oil system. The CSF oil coolers are much more robust, durable, and can withstand a higher peak burst rate. This allows the cooler to be mounted in areas that might get high debris (front fascia, diff cooler, side vents, etc...). The CSF oil cooler is designed to withstand a tremendous amount of vibration and debris.
The CSF #8066 is a universal cooling product and will require some custom work and/or fabrication to install. If you do not feel confident installing this product CSF recommends taking it to a qualified installation facility.
Features & Benefits
- Heavy duty bar/plate construction for durability & strength (Ideal for external placement)
- Unique semi-gloss / matte black powder coat finish using thermal rejecting powder
- Turbulated 8-row core w/ high density multi-louvered fin pitch
- Flip-able universal design for inlet/outlet on either side
- 2 M8 Mounting Bosses (w/ steel helicoil)

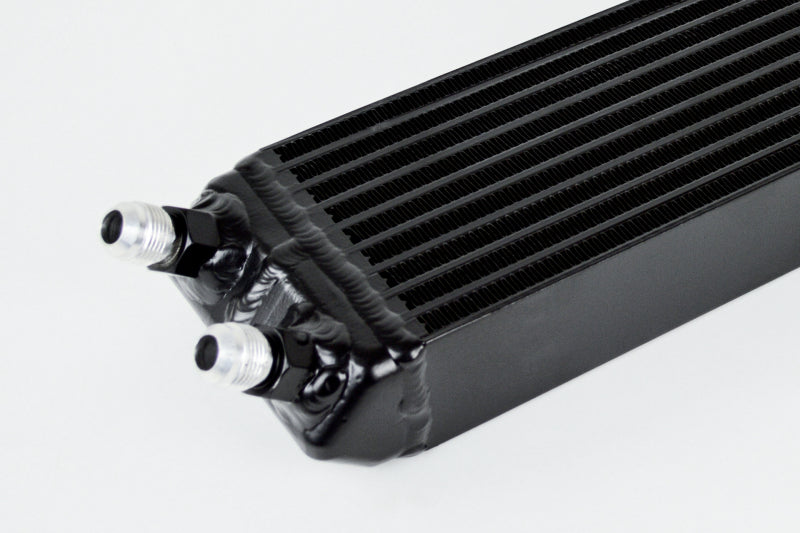

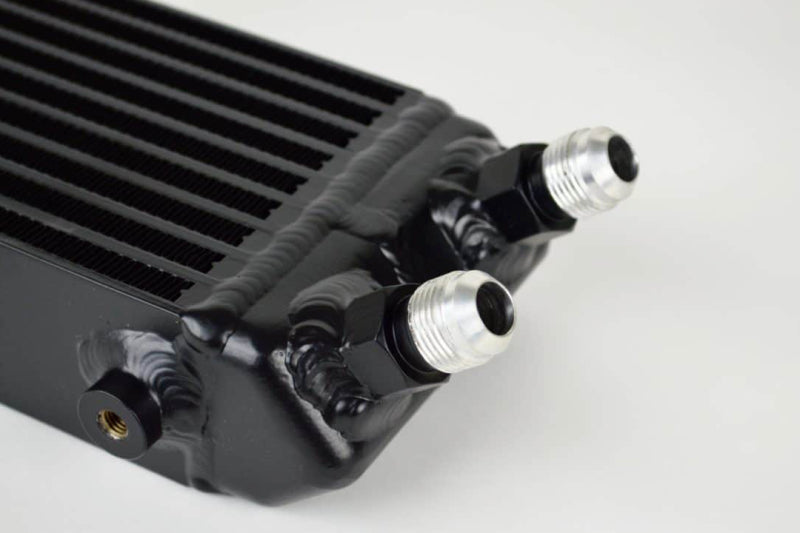

- -10 AN Male inlet/outlet connections

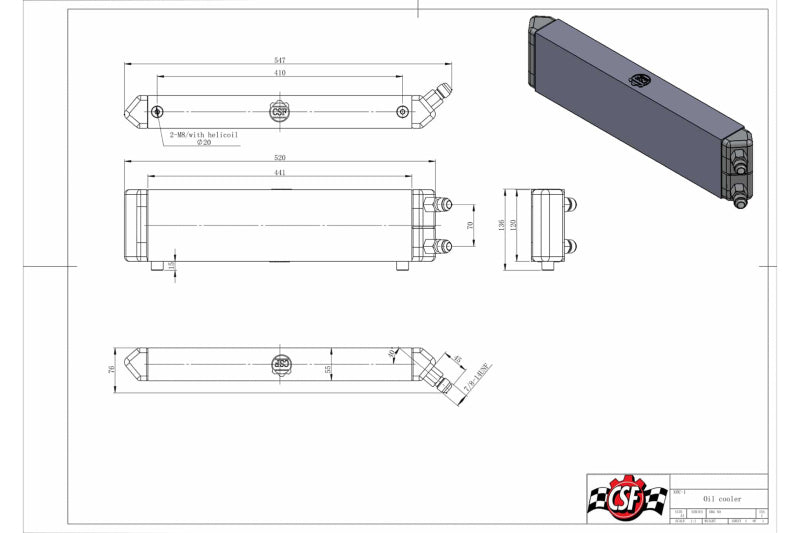

- Dimensions: 22'L x 5'H x 2.25'W
- Fluid Capacity: 0.68L (0.72 qt)
- Dual-pass design
Application & fitment
Fitment has not been independently verified for your vehicle. Confirm the manufacturer application against your year, make, model, trim, and modifications before ordering.
Shipping & availability
Processing and carrier timing vary by stock status and destination. Final shipping services and costs are confirmed at checkout.
