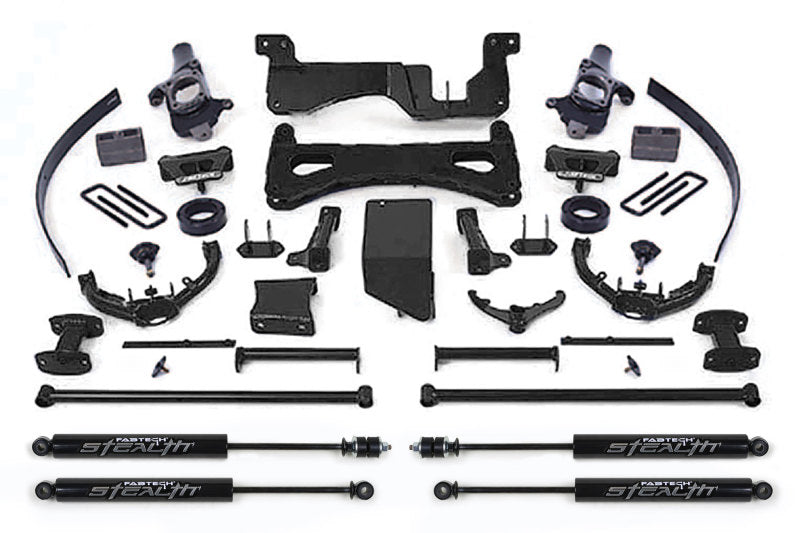

Fabtech 01-06 GM C/K2500HD 8in Perf Sys w/Stealth - K1015M
- Catalog SKU
- fabK1015M
- Manufacturer part #
- K1015M
- ✓Secure checkout
- ✓Enthusiast support
- ✓Free shipping on eligible $300+ merchandise subtotals in the lower 48 states
- Returns policy
Some products and vendors are excluded, including freight/LTL and oversized items.
One Parts Desk request covers fitment, availability, and timing.
Price matches are reviewed before purchase and are not guaranteed.
Project Garage
Plan this exact partSave the selected option to a build plan in this browser. No account required.
Fitment is not verified for your saved vehicle.
Product details
Product information
Overview
The 8" Performance Suspension System is accomplished via one-piece cast drop down steering knuckles attaching to heavy-duty 1/4" thick, high arched lower control arm crossmembers with tubular upper control arms. Fabtech’s combination of steering knuckle, high arched crossmembers and upper control arms provides an excellent ride quality with high ground clearance. This system will provide a true 8 inches of lift without adjustment to the torsion bars allowing the use of 37" tall tires. The front differential is properly relocated to eliminate front driveshaft vibration on 2001-06 vehicles with the stock driveshaft. On late model 2007-08 vehicles with Magna 1625 transfer cases the system requires the use of a CV front driveshaft to address high speed 4WD use. New tubular upper control arms fit into the stock frame pockets using urethane bushings. Upper control arms include double shock mounting tabs for integration with Fabtech’s optional front dual shock hoop system. The front suspension is completed with an differential skid plate, tubular crossmember supports and impact struts while the torsion bar drop down brackets properly align the torsion bars to the relocated stock lower control arms. The rear suspension is lifted using a 4" block kit with 2" add a leafs. The system is completed with rear bump stop brackets and a rear driveshaft carrier bearing drop bracket.
Features & Benefits
- Heavy Duty 1/4" Thick, High Arched Crossmember
- Everything You Will Need To Lift Your Vehicle
- No Driveshaft Change Required For Auto Trac
- Allows Use Of Stock Tires And Wheels
- Retains Factory Steering Centerlink
- Retains Factory Upper Control Arms
- Increased Caster For More Control
- Ductile Iron Steering Knuckles
- New Tubular Upper Control Arms
- Front Differential Skid Plate
- Quick No Weld Installation
- Torsion Bar Drop Brackets
- Billet Sway Bar End Links
- Rear Block & U-bolt Kit
- Rear Add-a-leaf
- Impact Struts
