Fabtech 03-05 Hummer H2 Suv/Sut 4WD w/Rr Air Bags 6in Perf Sys w/Dlss Shks - K5001DL
- Catalog SKU
- fabK5001DL
- Manufacturer part #
- K5001DL
- ✓Secure checkout
- ✓Enthusiast support
- ✓Free shipping on eligible $300+ merchandise subtotals in the lower 48 states
- Returns policy
Some products and vendors are excluded, including freight/LTL and oversized items.
One Parts Desk request covers fitment, availability, and timing.
Price matches are reviewed before purchase and are not guaranteed.
Project Garage
Plan this exact partSave the selected option to a build plan in this browser. No account required.
Fitment is not verified for your saved vehicle.
Product details
Product information
Overview

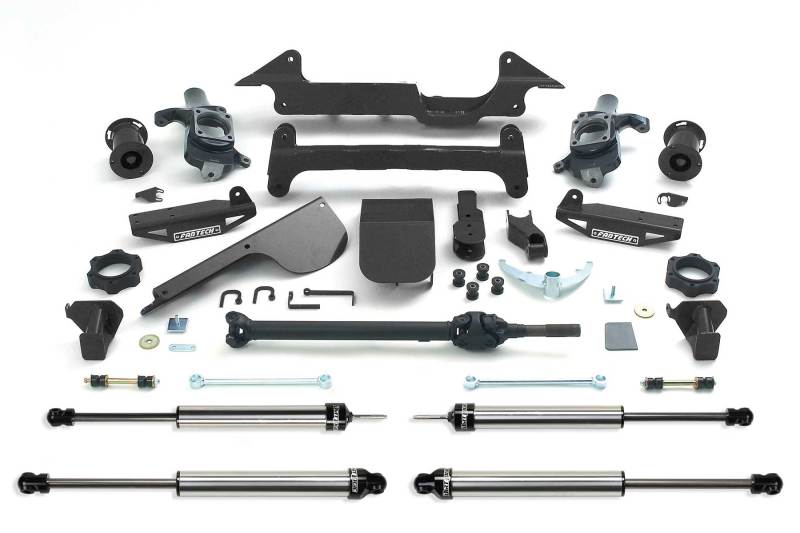

Our Hummer system is constructed much like all of our IFS systems with extended steering knuckles and high clearance crossmembers but the similarities stop there. To properly address the H2's fulltime transfer case we include a CV style front driveshaft with this system to provide smooth driveline operation. Also unique to this system is two 1/4'' thick skid plates, one for the front differential and one for the transfer case. Rear lift on factory air bag H2's comes from a super stout bag spacer while coil spring models receive replacement coil springs that are driver and passenger specific. Includes front and rear 2.25 Dirt Logic Stainless Steel shocks.
TIRE SIZE - 37/12.50R17 Wheel - 17X10 W/4 5/8" BS W/MINOR TRIMMING; TIRE SIZE - 37/13.50R20 Wheel - 20X10 W/5" BS W/MINOR TRIMMING; TIRE SIZE - 38/15.50R18 Wheel - 18X10 W/5" BS W/MINOR TRIMMING; TIRE SIZE - 40/13.50R17 Wheel - 17X10 W/4 5/8" BS W/MINOR TRIMMING; 61. INCLUDES FRONT CV DRIVESHAFT.; 46. KIT WILL ONLY FIT MODELS W/ 11.25 IN. ROTOR
Features & Benefits
- Everything You Will Need To Lift Your Vehicle
- No Driveshaft Change Required For Auto Trac
- Allows Use Of Stock Tires And Wheels
- Retains Factory Steering Centerlink
- Retains Factory Upper Control Arms
- Increased Caster For More Control
- Quick No Weld Installation
