Fabtech
Fabtech 07-13 GM C1500 P/U w/o Autoride 2WD 6in Basic Sys w/Perf Shks - K1027
- Catalog SKU
- fabK1027
- Manufacturer part #
- K1027
- ✓Secure checkout
- ✓Enthusiast support
- •Freight shipping calculated separately
- Returns policy
Some products and vendors are excluded, including freight/LTL and oversized items.
One Parts Desk request covers fitment, availability, and timing.
Price matches are reviewed before purchase and are not guaranteed.
Project Garage
Plan this exact partSave the selected option to a build plan in this browser. No account required.
Fitment is not verified for your saved vehicle.
Product details
Product information
Overview

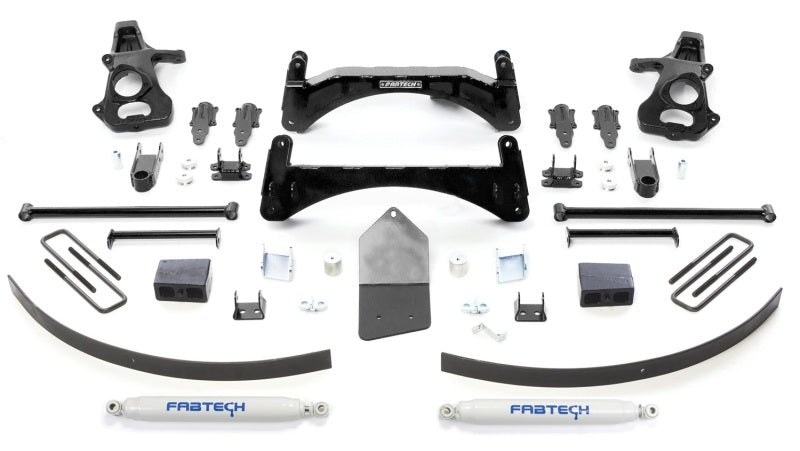

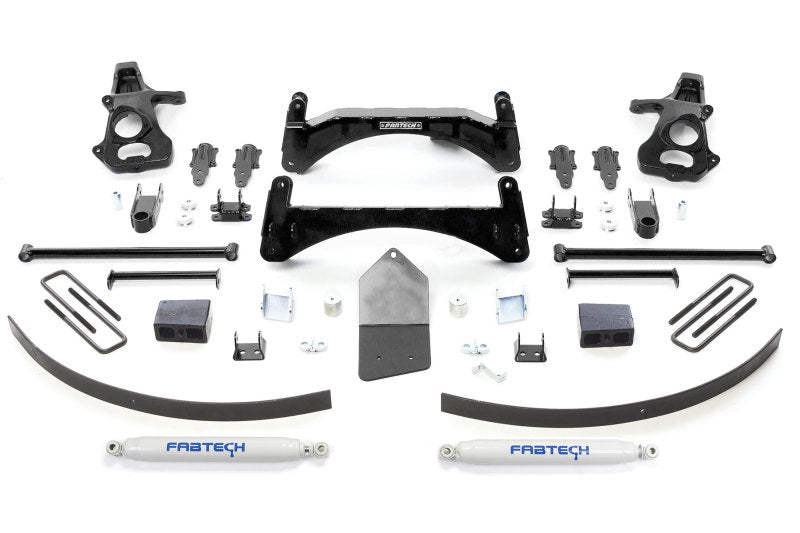

Our 6in Suspension systems for the T900 platform uses our industry leading crossmember and spindle technology. Fabtech pushes the envelope with superior ride height to properly clear 35in tall tires. Extensive design work was given to the extended length steering knuckles to keep the track width near stock with superior turning radius for maneuverability in tight spots. Lower control arm crossmembers are strengthened with cross tubes backed up by tubular frame struts to distribute front suspension impact loads. The front differential is protected with a tightly formed 1/4in thick steel skid plate. Rear suspension lift is accomplished via a block and add a leaf system.With two systems available, the Basic system features all the above componentry with a front coilover spacer system utilizing the factory coilover assembly for a stock like ride. The Performance system also offers the same componentry but with an upgrade to the Dirt Logic 2.5 or Dirt Logic 4.0 Adjustable Coilover shock in place of the factory front coilover assembly. Rear shock options include Performance shocks or Dirt Logic 2.25 shocks. Both systems have been properly designed to work with the factory Stabilitrak safety functions without reprogramming the vehicle's computer.
TIRE SIZE - 35/12.50R17 Wheel - 17X8 W/5" BS W/MINOR TRIMMING; TIRE SIZE - 35/12.50R20 Wheel - 20X9 W/5" BS W/MINOR TRIMMING; TIRE SIZE - 325/65R18 Wheel - 18X9 W/5" BS W/MINOR TRIMMING; 1. WILL NOT FIT MODELS WITH FACTORY AUTORIDE SHOCKS.
Features & Benefits
- Everything You Will Need To Lift Your Vehicle
- Designed For The Budget Minded Enthusiast
- Utilizes The Stock Radius Arm
Downloads & Resources
Application & fitment
Fitment has not been independently verified for your vehicle. Confirm the manufacturer application against your year, make, model, trim, and modifications before ordering.
Shipping & availability
Processing and carrier timing vary by stock status and destination. Final shipping services and costs are confirmed at checkout.
This product requires LTL freight and is excluded from free-shipping promotions.
