Fabtech
Fabtech 07-18 GM K1500 w/OE Forged UCA 3.5in UCA System w/DL 2.5 Resi Coilovers & Rear DL Shocks - K1108DL
- Catalog SKU
- fabK1108DL
- Manufacturer part #
- K1108DL
- ✓Secure checkout
- ✓Enthusiast support
- ✓Free shipping on eligible $300+ merchandise subtotals in the lower 48 states
- Returns policy
Some products and vendors are excluded, including freight/LTL and oversized items.
One Parts Desk request covers fitment, availability, and timing.
Price matches are reviewed before purchase and are not guaranteed.
Project Garage
Plan this exact partSave the selected option to a build plan in this browser. No account required.
Fitment is not verified for your saved vehicle.
Product details
Product information
Overview

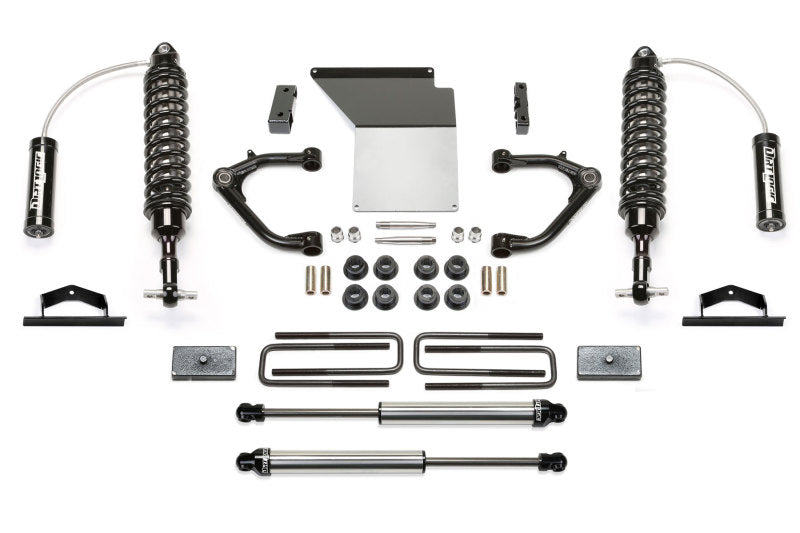

As an upgrade to our popular 4'' Budget System we offer the system with our Uniball Upper Control Arms. The Uniball Upper Control Arms feature .120'' wall 4130 Chromoly tubing with a 1.50'' OD and 1'' FK Stainless PTFE Uniballs for unsurpassed strength. The system also includes front differential drop brackets, a 1/4'' thick steel skid diff plate along with 1 1/2'' rear lift block and u-bolts. The 4'' System is available with our high end Dirt Logic 2.5 Coilovers for 10'' of front Wheel travel and Dirt Logic 2.25 rear shocks for aggressive offroad driving. Uniball Upper Control Arms are available separately as an upgrade to stock, previously installed Fabtech'suspensions or other aftermarket suspension systems.
TIRE SIZE - 33/12.50R17 Wheel - 17X8 W/4 1/2" BS W/MINOR TRIMMING; TIRE SIZE - 275/65R18 Wheel - 18X8 W/4 1/2" BS W/MINOR TRIMMING; TIRE SIZE - 295/55R20 Wheel - 20X9 W/5" BS W/MINOR TRIMMING
Features & Benefits
- Regulates Wheel Motion In Relation To Body
- Custom Engineered For High Quality Ride
- Upper Control Arm Kit
Application & fitment
Fitment has not been independently verified for your vehicle. Confirm the manufacturer application against your year, make, model, trim, and modifications before ordering.
Shipping & availability
Processing and carrier timing vary by stock status and destination. Final shipping services and costs are confirmed at checkout.
