Fabtech 07-18 Jeep JK 4-Door 3in Trail Ii w/Dlss Shks - K4052DL
- Catalog SKU
- fabK4052DL
- Manufacturer part #
- K4052DL
- ✓Secure checkout
- ✓Enthusiast support
- ✓Free shipping on eligible $300+ merchandise subtotals in the lower 48 states
- Returns policy
Some products and vendors are excluded, including freight/LTL and oversized items.
One Parts Desk request covers fitment, availability, and timing.
Price matches are reviewed before purchase and are not guaranteed.
Project Garage
Plan this exact partSave the selected option to a build plan in this browser. No account required.
Fitment is not verified for your saved vehicle.
Product details
Product information
Overview

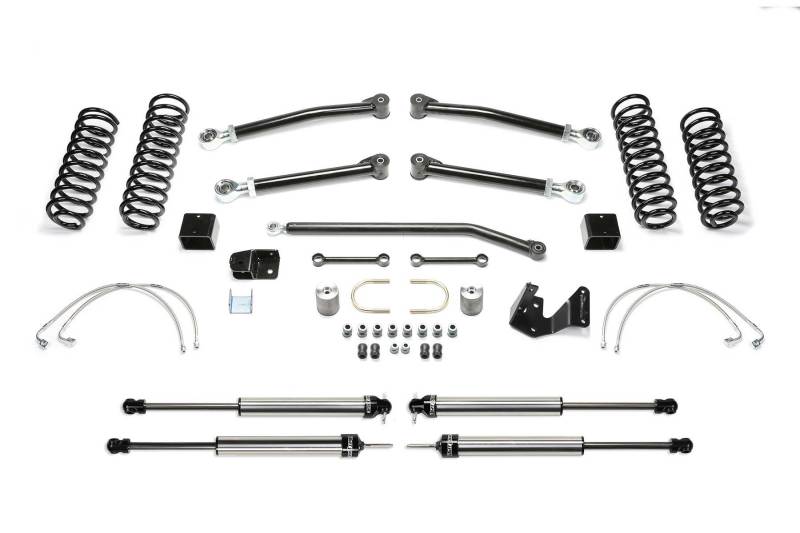

Utilizing the factory link arm mounts Fabtech's Trail short arm suspensions are built for aggressive offroad use while providing a smooth and quite highway ride. Each system has features and benefits that address all variants of off highway travel use including rock crawling, aggressive trail use and overland expeditions. The Trail system replaces the four lower link arms due to their vulnerability to offroad obstacles. Link arms come with large poly urethane bushings on one end with internal threads on the other to accept the ground breaking Fabtech 5 Ton Joint for longevity and a quite ride. These systems utilize Fabtech's Standard coil springs that are a single rate design and provide great all around suspension performance. Factory load carrying capacities are retained in these quality springs. Includes Lower Short Arm Links Front & Rear, Standard Coil Springs Front & Rear, Adjustable Track Bar Front, Sway Bar Links Front, Track Bar Bracket w/ Support Rear, Brake Lines Front & Rear, E Brake Bracket, Front Bump Stop Extensions, Rear Bump Stop Brackets and Dirt Logic 2.25 shocks.
TIRE SIZE - 35/12.50R17 Wheel - 17X9 W/4 1/2" BS W/MINOR TRIMMING; TIRE SIZE - 35/12.50R18 Wheel - 18X9 W/4 1/2" BS W/MINOR TRIMMING; TIRE SIZE - 35/12.50R20 Wheel - 20X9 W/5" BS W/MINOR TRIMMING; TIRE SIZE - 37/12.50R18 Wheel - 18X9 W/4 1/2" BS W/CUTTING; TIRE SIZE - 37/12.50R20 Wheel - 20X9 W/5" BS W/CUTTING; W/TUBE FENDERS: TIRE SIZE - 37/12.50R17 Wheel - 17X9 W/4 1/2" BS W/CUTTING; TIRE SIZE - 325/60R20 Wheel - 20X9 W/5" BS W/MINOR TRIMMING; TIRE SIZE - 325/65R18 Wheel - 18X9 W/4 1/2" BS W/MINOR TRIMMING; 148. EXHAUST SPACERS REQUIRED FOR ALL INSTALLATIONS ON 2012-CURRENT JEEP WRANGLERS; 249. FOR HEAVY OFFROAD USE, FRONT DRIVESHAFT IS REQUIRED. ORDER P/N FTS94057.; 250. FOR HEAVY OFFROAD USE, REAR DRIVESHAFT IS REQUIRED. SEE A QUALITY DRIVELINE SUPPLIER TO ORDER.
Features & Benefits
- Guarantee Superior Performance And Functionality
Application & fitment
Fitment has not been independently verified for your vehicle. Confirm the manufacturer application against your year, make, model, trim, and modifications before ordering.
Shipping & availability
Processing and carrier timing vary by stock status and destination. Final shipping services and costs are confirmed at checkout.
