Fabtech
Fabtech 14-18 GM C/K1500 P/U w/oE Alm Or Stmp Stl UCA 4in Perf Sys w/Dl 2.5 & 2.25 - K1120DL
- Catalog SKU
- fabK1120DL
- Manufacturer part #
- K1120DL
- ✓Secure checkout
- ✓Enthusiast support
- ✓Free shipping on eligible $300+ merchandise subtotals in the lower 48 states
- Returns policy
Some products and vendors are excluded, including freight/LTL and oversized items.
One Parts Desk request covers fitment, availability, and timing.
Price matches are reviewed before purchase and are not guaranteed.
Project Garage
Plan this exact partSave the selected option to a build plan in this browser. No account required.
Fitment is not verified for your saved vehicle.
Product details
Product information
Overview

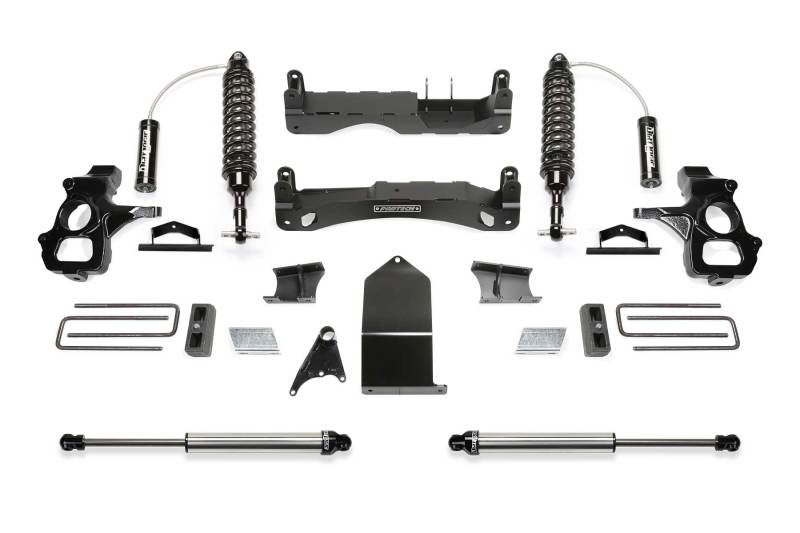

Fabtech's new 4in crossmember systems utilize their proven heavy duty construction and design features found in their 6in systems but with less lift for use with 33in tall tires. These 4in systems feature high arched lower control arm crossmembers constructed of 1/4in thick steel for maximum strength. The Fabtech ductile iron steering knuckles retain the stock track width keeping tires under the fender for a clean appearance. Rear lift is accomplished with a block and u-bolt configuration. The Performance System features Dirt Logic Stainless Steel 2.5 Resi Coilover front shocks and Dirt Logic Stainless Steel 2.25 rear shocks for aggressive offroad capabilities with a smooth highway ride.
TIRE SIZE - 33/12.50R17 Wheel - 17X8 W/4 1/2" BS W/MINOR TRIMMING; TIRE SIZE - 275/65R18 Wheel - 18X8 W/4 1/2" BS W/MINOR TRIMMING; TIRE SIZE - 295/55R20 Wheel - 20X9 W/5" BS W/MINOR TRIMMING; 8. WILL NOT FIT ALL Wheel DRIVE MODELS.; 14. CAN NOT USE OEM Wheel AND TIRE.; DOES NOT FIT STANDARD CAB.; 129. FOR USE ON VEHICLES WITH POWER STEERING ONLY.; 166. WILL NOT FIT MODELS WITH FACTORY MAGNERIDE SHOCKS.
Features & Benefits
- Everything You Will Need To Lift Your Vehicle
- No Driveshaft Change Required For Auto Trac
- Allows Use Of Stock Tires And Wheels
- Retains Factory Steering Centerlink
- Retains Factory Upper Control Arms
- Increased Caster For More Control
- Quick No Weld Installation
Application & fitment
Fitment has not been independently verified for your vehicle. Confirm the manufacturer application against your year, make, model, trim, and modifications before ordering.
Shipping & availability
Processing and carrier timing vary by stock status and destination. Final shipping services and costs are confirmed at checkout.
