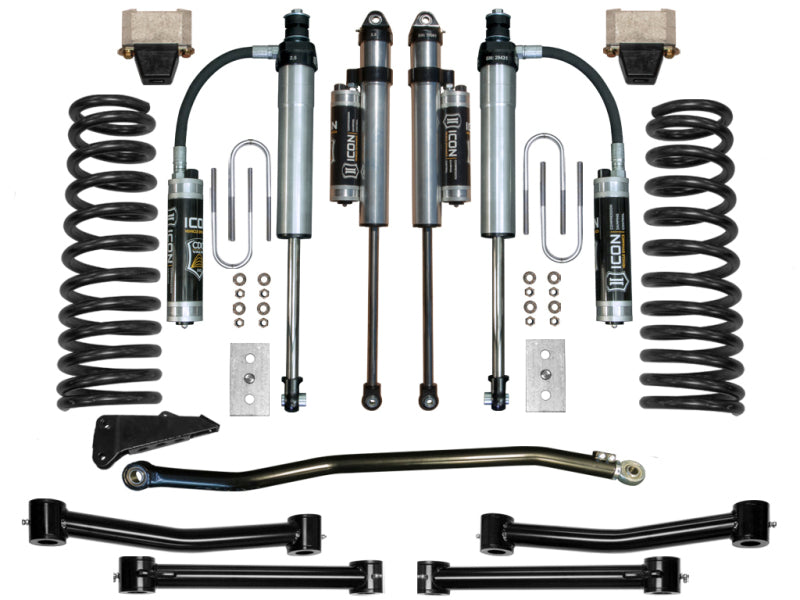

ICON 03-08 Ram 2500/3500 4.5in Stage 5 Suspension System - K214504T

2003-2008 Ram 2500/3500 4.5" Stage 5 Suspension System utilizes the same technology as the 2.5" systems while adding lift height, ground clearance, and user adjustability. Additional engineered front-end components are added to ensure proper steering geometry with improved function throughout the entire travel range whether on or off road. The Stage 5 System is comprised of dual rate coil springs, tubular steel upper & lower link arms, polyurethane bump stops w/ billet extension, sway bar drop brackets, forged pitman arm, track bar drop bracket, 2.5 Aluminum Series shocks w/ CDCV, bearing style adjustable track bar, and rear 2.5" lift blocks. ICON 2.5 Aluminum Series shocks extend the performance of the kit by increasing the duration of consistent damping regardless of situation, and give you the ability to tune the compression damping with the turn of an external knob. These shocks include FK bearings, one-piece impact extruded aluminum cylinders, and 7/8" shafts for strength. The adjustable track bar with bearings not only improves rigidity over flexible factory joints, but offers adjustability to center the front axle under the truck. ICON steel upper & lower links increase performance, strength, and range of alignment. These link arms decrease the bind found in the factory link bushings. This ultimate performance system with link arms offers extraordinary diversity across any terrain, all while keeping a smooth highway feel. Installing this kit allows proper clearance for 35" tall tires with no modifications, and some 37" tires with minor fender well trimming for clearance. With the endless hours ICON has spent testing and tuning our suspension components and shocks together, you can rest assured you have the best suspension solution on the market.

APPLICATION NOTE #126: Trucks Equipped With 03-06 Style Steering Will Require 4" Drop Pitman Arm (Not Included) Or Upgrade To 07-12 Steering Setup. Trucks Equipped With 07-12 Style Steering Will Need ICON Pitman Arm Part# 214101

Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required)

APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE

Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.25” Backspace / 13mm Offset

Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.50" Backspace / 12mm Offset

Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.50" Backspace / 12mm Offset

APPLICATION NOTE #6: SPRINGS ARE RATED FOR DIESEL ENGINES ONLY

OEM Wheels & Tires Fitment: Yes

Ships in Multiple Boxes

Features & Benefits

• 2.5 Aluminum Series front and rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
• ICON engineered dual rate coil springs with match tuned 2.5" V.S. Series shocks with CDCV
• Increased wheel travel and ride quality over stock with no change in towing capacity
• Correctly positioned steering and track bar components
• Adjustable track bar with PTFE lined FK bearings
• Heavy-duty steel upper and lower link bars
• No drive shaft modifications needed
• Level stance front to rear
• Less body roll than stock

Downloads & Resources

• Installation Instructions (PDF)
• Installation Instructions (PDF)
• Installation Instructions (PDF)
