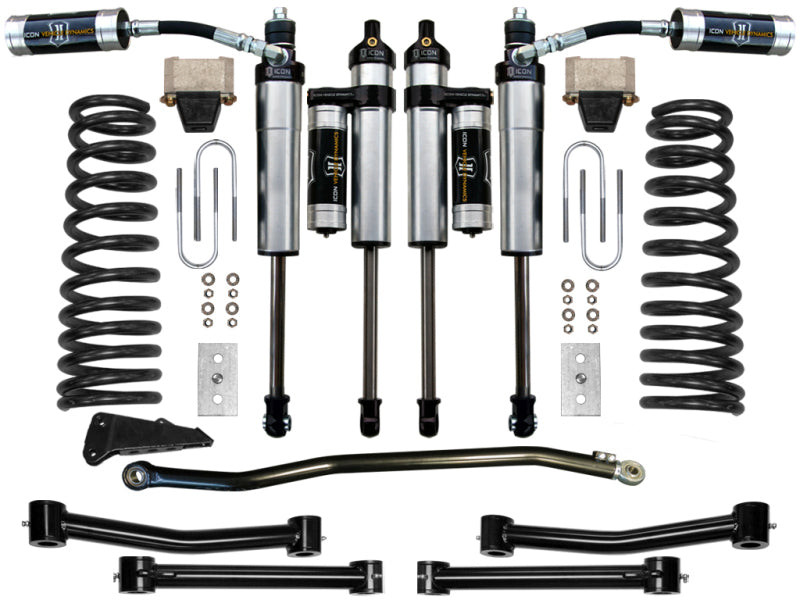

ICON 03-08 Ram 2500/3500 4WD 4.5in Stage 4 Suspension System - K214503T
- Catalog SKU
- icoK214503T
- Manufacturer part #
- K214503T
- ✓Secure checkout
- ✓Enthusiast support
- ✓Free shipping on eligible $300+ merchandise subtotals in the lower 48 states
- Returns policy
Some products and vendors are excluded, including freight/LTL and oversized items.
One Parts Desk request covers fitment, availability, and timing.
Price matches are reviewed before purchase and are not guaranteed.
Project Garage
Plan this exact partSave the selected option to a build plan in this browser. No account required.
Fitment is not verified for your saved vehicle.
Product details
Product information
Overview
2003-2008 Ram 2500/3500 4.5 Inch Stage 4 Suspension System utilizes the same technology as the 2.5 Inch systems while adding lift height and ground clearance. Additional engineered front-end components are added to ensure proper steering geometry with improved function throughout the entire travel range whether on or off road. ICON 2.5 Inch Series shocks extend the performance of the kit by increasing the duration of consistent damping regardless of situation. These shocks include FK bearings, billet top cap and rod ends, and 7/8" shafts for strength. The adjustable track bar with bearings not only improves rigidity over flexible factory joints, but offers adjustability to center the front axle under the truck. ICON steel upper and lower links increase performance, strength, and range of alignment. These link arms decrease the bind found in the factory link bushings. The multi leaf expansion pack improves compliance with a more progressive rate. This ultimate performance system with link arms offers extraordinary diversity across any terrain, all while keeping a smooth highway feel. Installing this kit allows proper clearance for 35" tall tires with no modifications, and some 37" tires with minor fender well trimming for clearance. With the endless hours ICON has spent testing and tuning our suspension components and shocks together, you can rest assured you have the best suspension solution on the market.
APPLICATION NOTE #126: Trucks Equipped With 03-06 Style Steering Will Require 4" Drop Pitman Arm (Not Included) Or Upgrade To 07-12 Steering Setup. Trucks Equipped With 07-12 Style Steering Will Need ICON Pitman Arm Part# 214101
Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required)
APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.25” Backspace / 13mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.50" Backspace / 12mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.50" Backspace / 12mm Offset
APPLICATION NOTE #6: SPRINGS ARE RATED FOR DIESEL ENGINES ONLY
OEM Wheels & Tires Fitment: Yes
Ships in Multiple Boxes
Features & Benefits
- ICON engineered dual rate coil springs with match tuned 2.5 Aliminum Series reservoir shocks
- Increased wheel travel and ride quality over stock with no change in towing capacity
- Correctly positioned steering and track bar components
- Adjustable track bar with PTFE lined FK bearings
- Heavy-duty steel upper and lower link bars
- No drive shaft modifications needed
- Level stance front to rear
- Less body roll than stock
What's Included
| Qty | Part | Part # |
|---|---|---|
| 1 | ICON 03-12 Dodge Ram HD 4WD 4.5in Dual Rate Spring Kit | 214010 |
| 1 | ICON 03-12 Dodge Ram HD Fixed Tubular Link Kit | 214027 |
| 1 | ICON 03-12 Dodge Ram HD Adj Track Bar Kit | 214030 |
| 1 | ICON 03-12 Dodge Ram HD 4.5in Box Kit | 214040 |
| 1 | ICON 99-10 Ford F-250/F-350 Super Duty Dually/03-12 Ram HD 15in U-Bolt Kit | 37023 |
| 1 | ICON 03-12 Dodge Ram HD 4WD 2.5in Block Kit | 211205 |
| 1 | ICON 03-12 Dodge Ram HD 2-3in Rear 2.5 Series Shocks VS PB - Pair | 217701P |
| 1 | ICON 03-12 Dodge Ram HD 4.5in Front 2.5 Series Shocks VS RR - Pair | 217810P |
