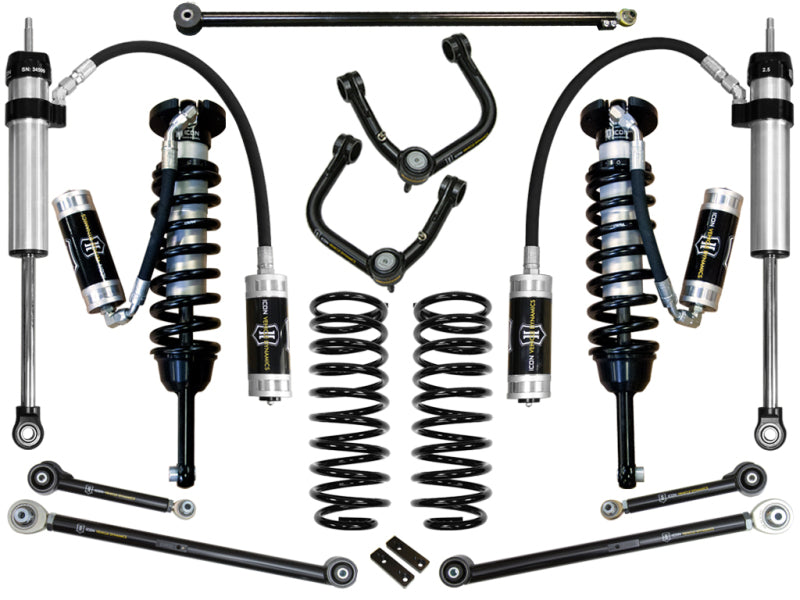

ICON 03-09 Toyota 4Runner/FJ 0-3.5in Stage 6 Suspension System w/Tubular Uca - K53056T
- Catalog SKU
- icoK53056T
- Manufacturer part #
- K53056T
- ✓Secure checkout
- ✓Enthusiast support
- ✓Free shipping on eligible $300+ merchandise subtotals in the lower 48 states
- Returns policy
Some products and vendors are excluded, including freight/LTL and oversized items.
One Parts Desk request covers fitment, availability, and timing.
Price matches are reviewed before purchase and are not guaranteed.
Project Garage
Plan this exact partSave the selected option to a build plan in this browser. No account required.
Fitment is not verified for your saved vehicle.
Product details
Product information
Overview
ICON’s 2003-2009 Toyota 4Runner/2007-2009 FJ Cruiser Stage 6 suspension system provides a significant increase to the on and off-road performance of the vehicle. This system includes the components featured in the Stage 5 setup – ICON tubular Delta Joint upper control arm kit, 2.5 Series Remote Reservoir front and rear shocks, 2” rear coil springs, and a tubular rear lower link arm kit - but sees the addition of a tubular rear upper link kit and an adjustable rear track bar. These additions improve strength and durability, while allowing for complete control of rear suspension adjustments. The remote reservoir design allows for increased shock oil volume and enhanced cooling so that the rear of the vehicle can work harder for longer durations without noticeable “fade” occurring. The 2.5 Aluminum Series Remote Reservoir rear shocks also feature ICON’s “Bump Zone” technology which significantly increases damping ability in the last 2” of compression travel, preventing harsh bottom-out sensation and giving the vehicle a much more controlled ride quality over varying terrain. ICON's tubular steel lower links are much stronger than the OE units, feature a low maintenance multi-durometer bushing, and can be adjusted for optimum pinion angle. On top of it all, these links have been designed to provide correct roll steer geometry for the best possible handling on and off-road.
APPLICATION NOTE #35: REMOTE RESERVOIR MOUNTING BRACKETS MAY INTERFERE WITH AFTERMARKET BUMPER MOUNTS / WINDSHIELD WASHER BOTTLES
Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset
APPLICATION NOTE #47: 700LB/IN EXPEDITION COIL AVAILABLE FOR HEAVIER EQUIPPED VEHICLES
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.00” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.00” Backspace / 0mm Offset
OEM Wheels & Tires Fitment: Yes
Ships in multiple boxes
Features & Benefits
- Tubular upper and lower rear links offer increased strength, improved geometry, and pinion angle adjustment
- Extended Travel remote reservoir coilovers matched with ICON UCAs provide increased front droop travel
- Vehicle specific tuned front and rear shocks for superior shock damping and control
- Adjustable rear track bar proper rear axle placement under vehicle
- Corrosion resistant CAD plated coilover shock body with 7/8" shaft
- 2.5 Aluminum Series remote reservoir rear shocks with 7/8" shafts
- FK Rod End bearings for extended longevity and minimal deflection
- Bolt-on system means no cutting or welding necessary for install
- Adjustable coilovers provide 0-3.5" of front lift height
- 6061 aircraft grade aluminum CNC machined components
- Increased wheel travel and ride quality over stock
