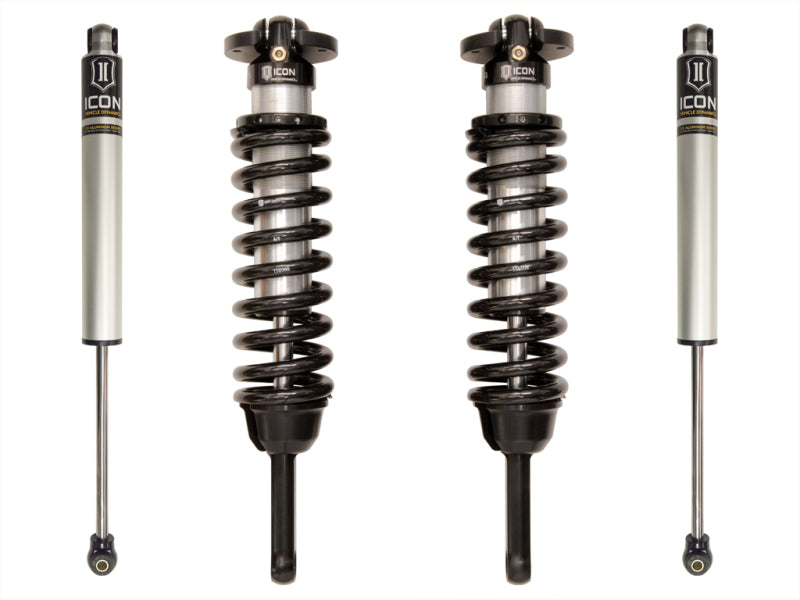

ICON 05-11 Toyota Hilux 0-3in Stage 1 Suspension System - K53136
- Catalog SKU
- icoK53136
- Manufacturer part #
- K53136
- ✓Secure checkout
- ✓Enthusiast support
- ✓Free shipping on eligible $300+ merchandise subtotals in the lower 48 states
- Returns policy
Some products and vendors are excluded, including freight/LTL and oversized items.
One Parts Desk request covers fitment, availability, and timing.
Price matches are reviewed before purchase and are not guaranteed.
Project Garage
Plan this exact partSave the selected option to a build plan in this browser. No account required.
Fitment is not verified for your saved vehicle.
Product details
Product information
Overview
ICON Vehicle Dynamics’ Toyota Hilux suspension systems have been designed with maximum performance and the serious driver in mind. The varying uses of this vehicle worldwide were acknowledged and catered to in ICON’s research and development process. The Hilux Stage 1 system provides a baseline level of performance that will drastically improve on and off-road vehicle ride characteristics. ICON's Vehicle-specific tuned 2.5” coilover shocks feature a internal reservoir for exceptional cooling properties, and ICON-engineered Eibach coil springs for superior vehicle “feel” throughout the range of travel. These 2.5" coilovers are height adjustable from 0-3” allowing you to level the Hilux front to back, and install a larger tire when desired. ICON 2.0 Aluminum Series monotube rear shocks balance performance of the truck front to rear for a great all-around feel on any terrain. ICON has taken into account the stiffer chassis of the Hilux, realizing a much more robust overall shock tune was required for sufficient damping ability across varying terrains and differing vehicle payloads. This attention to detail is why ICON Vehicle Dynamics performance suspension systems are the ultimate solution for the Toyota Hilux.
APPLICATION NOTE #82: Rear Springs Can Be Added For Additional Rear Lift Height Up To 2’” To Match The Front 3” Lift Height Adjustment
Recommended Aftermarket Tires: 33" x 11.25" (Larger tires may fit but fender trimming and modifications will be required.)
APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset
APPLICATION NOTE #47: 700LB/IN EXPEDITION COIL AVAILABLE FOR HEAVIER EQUIPPED VEHICLES
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.00” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.00” Backspace / 0mm Offset
OEM Wheels & Tires Fitment: Yes
Ships in multiple boxes
Features & Benefits
- Increased wheel travel and ride quality over stock with no change in towing capacity
- Vehicle specific tuned front and rear shocks for superior shock damping and control
- Improved shock durability for the varying terrains and many uses this vehicle faces
- 100% Bolt-on system - no drilling, cutting, or welding necessary for install
- Corrosion resistant CAD plated coilover shock body with 7/8 shaft
- FK rod end bearings for extended longevity and minimal deflection
- 6061 Aircraft grade aluminum CNC machined components
- Adjustable coilovers from 0-3" of lift height
- 2.0 aluminum body rear shock with 5/8" shaft
