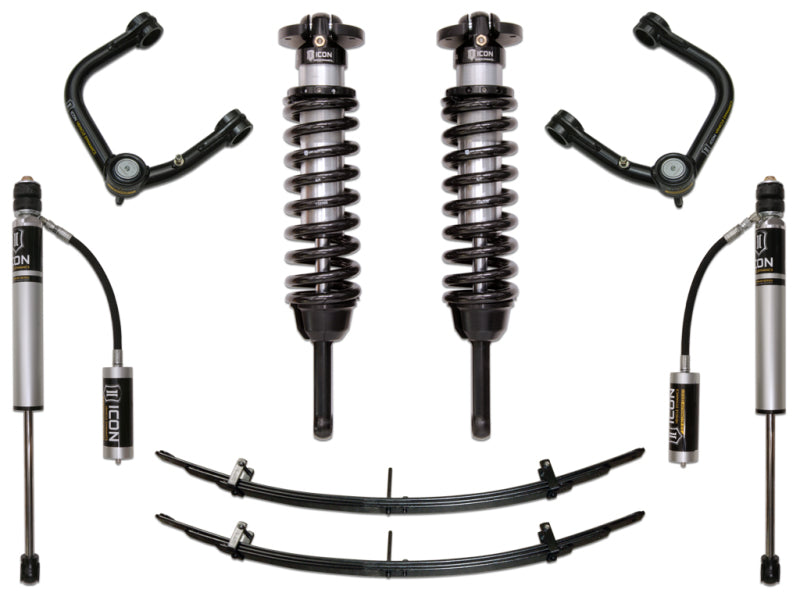

ICON 05-15 Toyota Tacoma 0-3.5in/2016+ Toyota Tacoma 0-2.75in Stg 3 Suspension System w/Tubular Uca - K53003T
- Catalog SKU
- icoK53003T
- Manufacturer part #
- K53003T
- ✓Secure checkout
- ✓Enthusiast support
- ✓Free shipping on eligible $300+ merchandise subtotals in the lower 48 states
- Returns policy
Some products and vendors are excluded, including freight/LTL and oversized items.
One Parts Desk request covers fitment, availability, and timing.
Price matches are reviewed before purchase and are not guaranteed.
Project Garage
Plan this exact partSave the selected option to a build plan in this browser. No account required.
Fitment is not verified for your saved vehicle.
Product details
Product information
Overview
ICON Vehicle Dynamics Toyota Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. The Stage 3 system includes vehicle-specific tuned 2.5” Extended Travel coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from 0-3.5” of lift on 2005-2015 or 0-2.75” on 2016-2023 models, allowing the use of larger, more aggressive wheel and tire combinations. When used with an ICON upper control arm, these extended travel coilovers add increased droop travel to the front suspension. The included ICON tubular upper control arm kit is designed to improve the overall performance of the Toyota Tacoma with corrected front-end geometry, built in additional caster, and improved suspension component clearance. Additionally, replacing the OE ball joint with the serviceable ICON Delta Joint allows for full bump and droop travel of the front suspension while eliminating bind. The included rear Add-A-Leaf Kit Installs in place of the factory overload leaves and effectively lowers the rear spring rate by approximately 10% for a more compliant ride while also providing 1.5" of rear lift over stock. ICON 2.0 Aluminum Series Remote Reservoir rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2005-2023 Toyota Tacoma Stage 3 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
TECH NOTE: 2017-2023 Tacoma TRD Pro models will have front lift height range of 0-1.25" over stock and rear lift height of 1" over stock
Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
APPLICATION NOTE #55: Shocks are fully serviceable. Coilover heights indicated are for a stock equipped vehicle
APPLICATION NOTE #111: Bump Stop Spacer Kit 51045 can be installed to increase preload .25” beyond maximum
APPLICATION NOTE #18: These systems are to be used with aftermarket upper control arms only
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5 with 4.75” Backspace / 0mm Offset
APPLICATION NOTE #47: 700Lb/In Expedition Coil available for heavier equipped vehicles
Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 5.00” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9 with 5.00” Backspace / 0mm Offset
TECH NOTE: Not compatible with 2005-2015 2WD 5-Lug Toyota Tacoma models
APPLICATION NOTE #110: Trimming required for recommended tire size
APPLICATION NOTE #109: 2016-2023 Tacoma Llft range Is 0-2.75”
OEM Wheels & Tires Fitment: Yes
Ships in Multiple Boxes
Features & Benefits
- Adjustable coilovers provide up to 3.5" of front lift height on 2005-2015 models and up to 2.75" on 2016-2023 models
- Add-A-Leaf Kit replaces OE overload leaf spring for more compliant ride quality and 1.5" of rear lift
- Tubular UCAs for added strength, durability, and alignment correction for better drivability
- Vehicle specific tuned front and rear shocks for superior shock damping and control
- Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
- 2.0 Aluminum Series remote reservoir rear shocks with 5/8" shafts
- FK Rod End bearings for extended longevity and minimal deflection
- Bolt-on system means no cutting or welding necessary for install
- UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint
- 6061 aircraft grade aluminum CNC machined components
- Extended Travel coilovers offer maximum wheel travel
- Increased wheel travel and ride quality over stock
