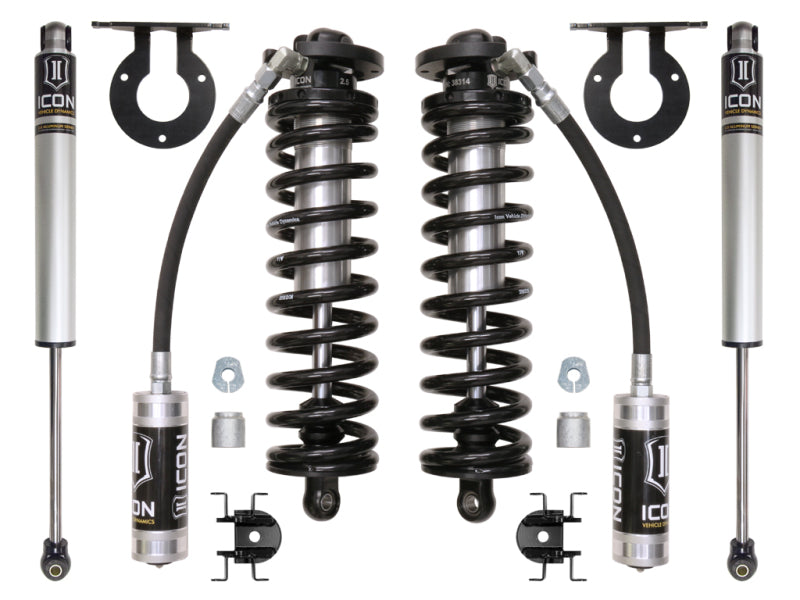

ICON 05-16 Ford F-250/F-350 2.5-3in Stage 1 Coilover Conversion System - K63101
- Catalog SKU
- icoK63101
- Manufacturer part #
- K63101
- ✓Secure checkout
- ✓Enthusiast support
- ✓Free shipping on eligible $300+ merchandise subtotals in the lower 48 states
- Returns policy
Some products and vendors are excluded, including freight/LTL and oversized items.
One Parts Desk request covers fitment, availability, and timing.
Price matches are reviewed before purchase and are not guaranteed.
Project Garage
Plan this exact partSave the selected option to a build plan in this browser. No account required.
Fitment is not verified for your saved vehicle.
Product details
Product information
Overview

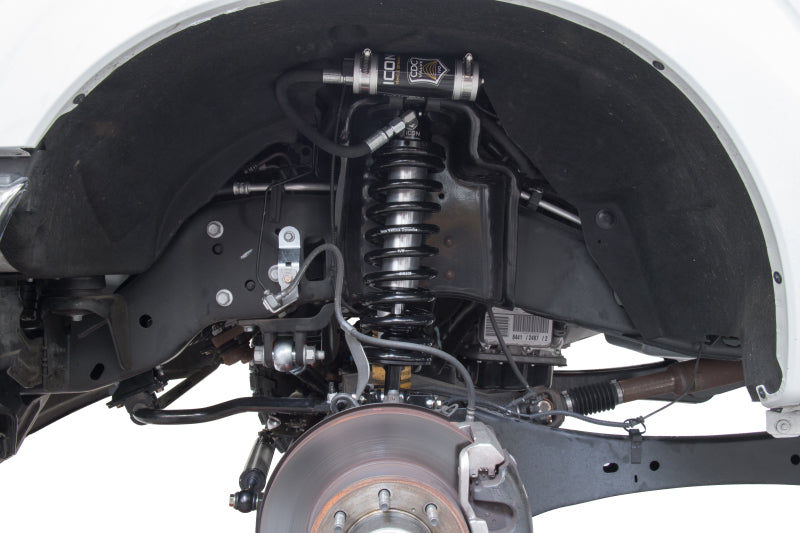

ICON's 2.5 VS Series Remote Reservoir Bolt-In Coilover Conversion Kit will add a new level of performance and adjustability to 2005-2016 F-250 and F-350 trucks. The advantage of utilizing a coilover conversion kit is that they have been designed to increase the overall damping ability of the vehicle while at the same time allowing for user-defined ride height adjustment. The 2.5" Remote Reservoir Coilover featured in these kits is based off of ICON’s 2.5 VS Series shock line - meaning that features like Eibach coil springs, FK Rod End bearings, and vehicle-specific valving come standard. Quality machined components and a fully serviceable design make for a product that will stand the test of time, yet retain the ability to be rebuilt or re-valved as necessary.
TECH NOTE: 2005-2016 F-250s require 4” rear blocks with 15” U-bolt kit to sit level with 2.5” lifted front. ICON block kit part # 194275 and U-bolt kit part # 37003 (2005-2010 models) or part # 67003 (2011-2016 models) are recommended.
APPLICATION NOTE #30: AN ADJUSTABLE TRACK BAR MAY BE NEEDED TO REALIGN THE AXLE FROM LEFT TO RIGHT, OR TO ADD ADDITIONAL STRENGTH
Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
APPLICATION NOTE #88: REMOVAL OF THE COIL CENTERING CUP IN FACTORY COIL BUCKET REQUIRED FOR INSTALLATION.
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset
APPLICATION NOTE #6: SPRINGS ARE RATED FOR DIESEL ENGINES ONLY
OEM Wheels & Tires Fitment: Yes
Ships in multiple boxes
Features & Benefits
- Vehicle-specific shock valving provides unparalleled ride quality and control
- Eibach coil springs guaranteed for life against sagging or breakage
- Corrosion resistant CAD plated coilover shock body with 7/8" shaft
- FK Rod End bearings for extended longevity and minimal deflection
- Decreased body roll and improved on and off-road ride dynamics
- Coilover conversion allows for addition of secondary shock
- Bolt-in system fits in OE coil bucket location
- Shocks are fully rebuildable and revalveable
- Ride height adjustable coilovers (2.5-3")
