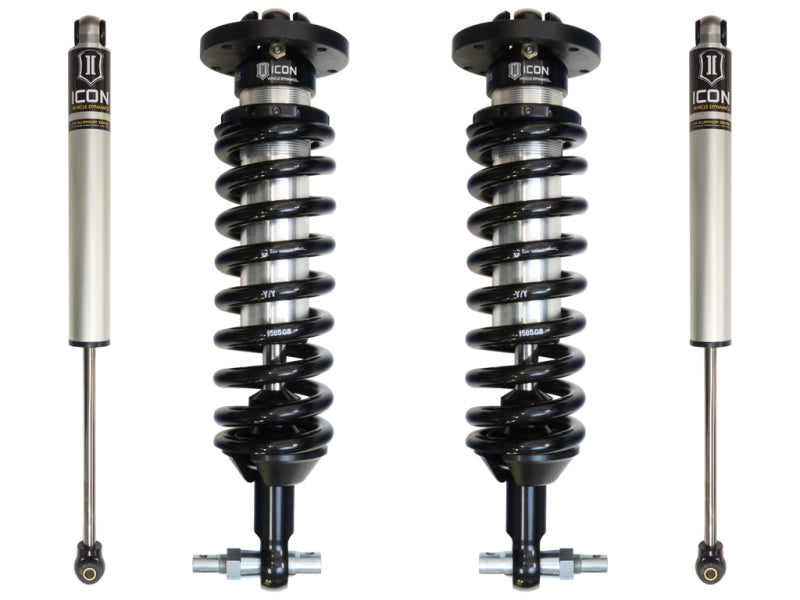

ICON 07-18 GM 1500 1-3in Stage 1 Suspension System - K73001
- Catalog SKU
- icoK73001
- Manufacturer part #
- K73001
- ✓Secure checkout
- ✓Enthusiast support
- ✓Free shipping on eligible $300+ merchandise subtotals in the lower 48 states
- Returns policy
Some products and vendors are excluded, including freight/LTL and oversized items.
One Parts Desk request covers fitment, availability, and timing.
Price matches are reviewed before purchase and are not guaranteed.
Project Garage
Plan this exact partSave the selected option to a build plan in this browser. No account required.
Fitment is not verified for your saved vehicle.
Product details
Product information
Overview
ICON Vehicle Dynamics 2007-2018 GM Silverado/Sierra 1500 suspension systems are designed to dramatically increase the on and off-road ride quality. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. With wheel travel and ride quality in mind, ICON engineers researched each component of the GM platform’s suspension and addressed any areas where performance could be extracted. The Stage 1 system includes vehicle-specific tuned 2.5 coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered Eibach coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from 1-3” allowing the use of larger, more aggressive wheel and tire combinations. ICON 2.0 Aluminum Series monotube rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics GM Silverado/Sierra 1500 Stage 1 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
APPLICATION NOTE #83: TRIMMING OF THE UPPER CONTROL ARM STOP REQUIRED OR DOWN TRAVEL WILL BE LIMITED BY UPPER ARM STOP
APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.00” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.00” Backspace / 0mm Offset
TECH NOTE: Included rear shocks are compatible with 0-2" of rear lift on most models
APPLICATION NOTE #48: SLIGHT MODIFICATIONS TO FACTORY SHOCK MOUNTS MAY BE REQUIRED
TECH NOTE: Not compatible with models equipped Magnetic Ride Control
TECH NOTE: Not recommended for Hybrid models
OEM Wheels & Tires Fitment: Yes
Ships in multiple boxes
Features & Benefits
- Increased wheel travel and ride quality over stock with no change in towing capacity
- Vehicle specific tuned front and rear shocks for superior shock damping and control
- Adjustable coilovers allow for f 1-3" of front lift height over stock
- Corrosion resistant CAD plated coilover shock body with 7/8" shaft
- FK rod end bearings for extended longevity and minimal deflection
- 2.0 Aluminum Series rear IFP shocks with 5/8" shock shafts
- 6061 Aircraft grade aluminum CNC machined components
- High strength alloy CNC machined lower bar pin
- Fits 2WD and 4WD models
Downloads & Resources
Application & fitment
Fitment has not been independently verified for your vehicle. Confirm the manufacturer application against your year, make, model, trim, and modifications before ordering.
Shipping & availability
Processing and carrier timing vary by stock status and destination. Final shipping services and costs are confirmed at checkout.
