ICON 07-18 Jeep Wrangler JK 4.5in Stage 2 Suspension System - K24002
- Catalog SKU
- icoK24002
- Manufacturer part #
- K24002
- ✓Secure checkout
- ✓Enthusiast support
- ✓Free shipping on eligible $300+ merchandise subtotals in the lower 48 states
- Returns policy
Some products and vendors are excluded, including freight/LTL and oversized items.
One Parts Desk request covers fitment, availability, and timing.
Price matches are reviewed before purchase and are not guaranteed.
Project Garage
Plan this exact partSave the selected option to a build plan in this browser. No account required.
Fitment is not verified for your saved vehicle.
Product details
Product information
Overview

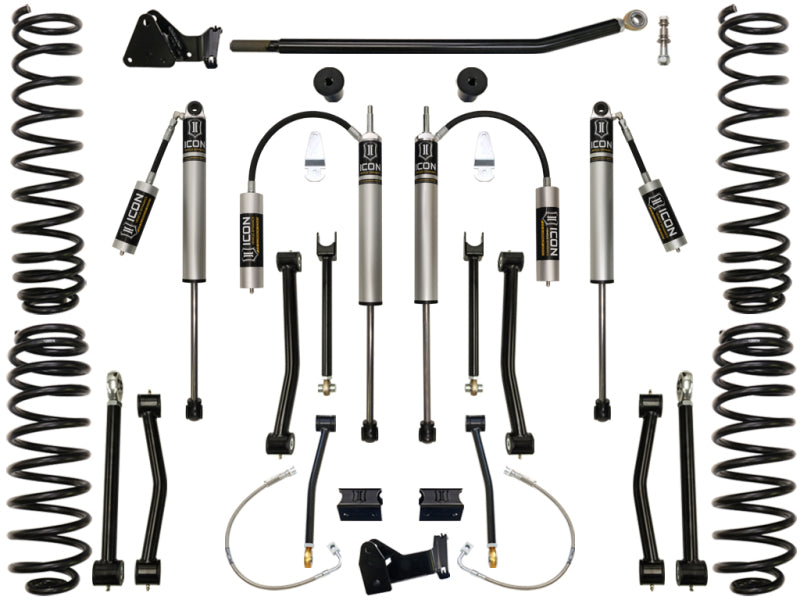

The ICON Stage 2 Jeep JK 4.5" suspension system includes dual-rate coil springs, track bar drop brackets, high-steering components, bump stop spacers, rear brake lines, rear sway bar links, complete set of front and rear links, and 2.0 Aluminum Series remote reservoir shocks. Tested and tuned, the ICON JK Stage 2 suspension system offers stability and drivability over a wide range of off-road terrains, while keeping a smooth on road feel for every day driving. Adding the remote reservoirs to the 2.0 shocks keeps them at a cooler operating temperature during heavy use for more consistent shock damping and overall performance. Installing this kit allows proper clearance for 35" tall tires with no modifications and 37" tires with aftermarket high clearance fenders.
TECH NOTE: ICON’s advertised lift heights are based around a typical Jeep JK build which usually includes added weight of accessories such as heavier front bumper/winch and heavier rear bumper/spare tire. Lift heights may be higher than advertised if installed on a stock weighted vehicle.
Recommended Aftermarket Tires: 35" x 12.50" (Larger 37" tire packages will fit with minor modifications or aftermarket high clearance fenders, test fitment recommended)
APPLICATION NOTE #62: FRONT DRIVESHAFT CAN HIT CERTAIN MODEL SKID PLATES AT FULL DROOP AND MAY NEED TO BE TRIMMED FOR FULL ARTICULATION
APPLICATION NOTE #80: Front Drive Shaft Required For Proper Front Driveline Clearance (ICON Part #22014 [12-Up] / #22016 [07-11]
APPLICATION NOTE #66: 2 DOOR MODELS SIT SLIGHTLY HIGHER THAN 4 DOOR MODELS BUT REMAIN LEVEL WHEN INSTALLED
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.5” Backspace / -6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 4.5” Backspace / -12mm Offset
APPLICATION NOTE #123: MAY REQUIRE REAR ALIGNMENT CAM KIT
APPLICATION NOTE #150: SHOCKS ARE FULLY SERVICEABLE
OEM Wheels & Tires Fitment: Yes
Ships In Multiple Boxes
Features & Benefits
- All links utilize dual-rate bushings or PTFE-lined rod ends for tuned vibration isolation, controlled deflection, with maximum articulation and responsiveness
- High-steer flip kit for proper steering geometry without a drop pitman arm and increased ground clearance over stock
- Includes high-performance rebuildable and revalvable remote reservoir 2.0 Aluminum Series shocks
- Stainless steel high-steer taper adapter eliminates drilling the factory knuckle
- Dual-rate coil springs front and rear guaranteed never to sag
- Increased wheel travel and articulation over stock
- No welding or cutting required
- 100% returnable to stock
