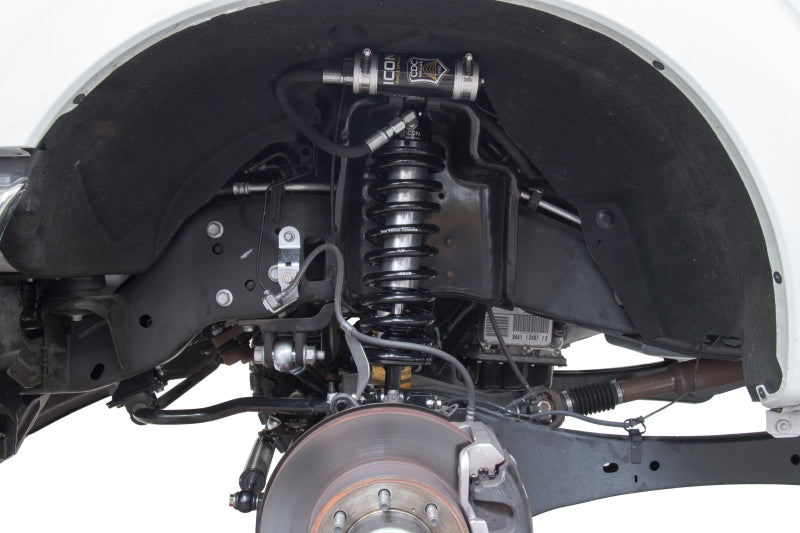

ICON 08-10 Ford F250/F350 2.5-3in Stage 6 Coilover Conversion System w/ Expansion Packs - K63186

The ICON 2.5-3” coilover conversion suspension system is a great way to lift your 4WD 2008-2010 Ford F-250/F-350 Super Duty while improving ride quality and performance. This upgraded Stage 6 system is great for towing, rough construction site terrains, and country dirt roads all while keeping a smooth highway feel. Also included in this stage are ICON's CDC Valve front, front secondary, and rear shocks, for those desiring an easy way to tune the ride externally with 10 settings, from soft to hard. ICON's Stage 6 System is comprised of 2.5 Series CDCV remote reservoir coilovers that are adjustable from 2.5-3” of front lift over stock, CDCV 2.5 Aluminum Series remote reservoir front secondary shocks for maximum front damping ability, adjustable front track bar with massive FK rod end, fabricated ICON radius arms, dual steering stabilizer kit with ICON 2.0 Aluminum Series stabilizers, alignment cams for adding caster, rear leaf spring expansion packs with blocks and U-bolts for a more compliant ride and reduced axle wrap, and ICON 2.5 Aluminum Series CDCV piggyback reservoir rear shocks. ICON 2.5 Series remote and piggyback reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. With the endless hours ICON has spent testing and tuning our suspension components and shocks as a complete package, you can rest assured you have the best suspension solution on the market.

TECH NOTE: Replaces OE rear blocks for .5" of rear lift over stock on F-250. Lowers F-350 rear ride height by .5" compared to stock.

TECH NOTE: ICON track bar bracket part # 64039 is also recommended to correct bump steer geometry for 2.5-5.5" of front lift

Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)

APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE

APPLICATION NOTE #88: REMOVAL OF THE COIL CENTERING CUP IN FACTORY COIL BUCKET REQUIRED FOR INSTALLATION.

Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset

Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset

Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset

APPLICATION NOTE #6: SPRINGS ARE RATED FOR DIESEL ENGINES ONLY

APPLICATION NOTE #151: FITS SINGLE REAR WHEEL MODELS ONLY

TECH NOTE: Not compatible with F-350 Cab & Chassis models

TECH NOTE: Compatible with 4WD models only

OEM Wheels & Tires Fitment: Yes

Features & Benefits

• Fabricated radius arms offer on vehicle caster adjustment, increased strength, and improved tire clearance at steering lock
• All shocks equipped with CDC Valves for 10 settings of compression damping adjustment, from soft to hard
• Ride height adjustable 2.5 Series remote reservoir coilovers provide 2.5-3" of front lift over stock
• Vehicle specific tuned remote reservoir 2.5 Aluminum Series secondary shocks for added shock damping
• Leaf spring expansion packs and blocks for more compliant ride quality and reduced axle wrap
• Improved ride quality and performance compared to stock with no change in towing capacity
• On-vehicle adjustable track bar for optimum front axle centering and minimal deflection
• Vehicle specific tuned piggyback reservoir 2.5 Aluminum Series rear shocks
• Dual steering stabilizer kit for smooth wheel control while driving
• Lifetime guarantee that springs won’t sag or break
• No drive shaft modifications required
• Less body-roll than stock
