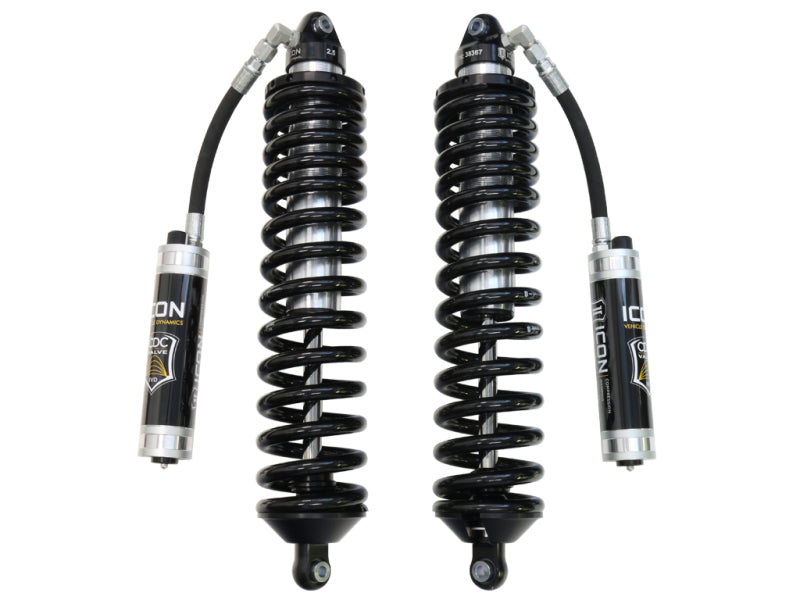

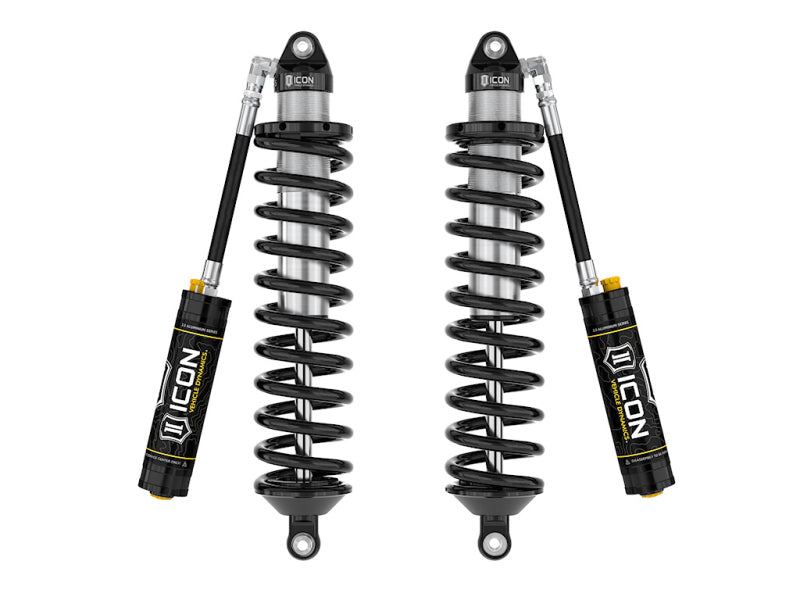

ICON 08-16 Ford F-250/F-350 Super Duty 4WD 7-9in 2.5 Series Shocks VS RR CDCV Coilover Kit - 61700C

The ICON Vehicle Dynamics Coilover Conversion System transforms the front suspension of 2008-2016 Ford Super Duty trucks by replacing the factory coil spring arrangement with a high-performance, bolt-in coilover system designed for use with ICON fabricated shock hoops. Ride height adjustable coilovers provide 7-9" of front lift, delivering improved suspension tuning capability along with reduced body roll and significantly enhanced on- and off-road ride dynamics. Vehicle-specific shock valving is engineered to provide exceptional ride quality and precise control, while remote reservoirs increase shock oil capacity and dissipate heat to maintain consistent damping performance during extended off-road use. ICON's exclusive Compression Damping Control Valves are included for precisely dialing in your suspension performance. CDCV controls fluid flow under compression, allowing you to achieve the perfect tune whether driving on the street, slow-crawling through the rocks or mobbing across the desert at full throttle. The corrosion-resistant CAD plated coilover shock bodies, 7/8" shafts for exceptional strength, and ICON-engineered dual-rate coil springs are backed by a lifetime guarantee against sagging or breakage. High-strength FK rod end bearings minimize deflection while providing long-lasting durability in demanding environments. Designed with future performance upgrades in mind, the coilover conversion also allows for the addition of a secondary shock, making it an ideal foundation for high-performance Super Duty suspension systems.

Recommended Aftermarket Tires: 37" x 12.50" (larger tires may fit but fender trimming and modifications will be required)

APPLICATION NOTE #54: ICON Coilover Conversion Hoops part number 61950L & 61950R are required for installation

APPLICATION NOTE #120: Secondary shock options available, contact ICON for more details.

Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset

Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset

Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset

ICON Coilover Conversion Hoops Part # 61950L & 61950R required for installation

APPLICATION NOTE #115: Lift heights based on 4WD Crew Cab diesel

APPLICATION NOTE #6: Springs are rated for diesel engines

APPLICATION NOTE #1: Only fits 4WD models

Factory Wheels & Tires Fitment: Yes

Features & Benefits

• ICON engineered dual rate coil springs guaranteed for life against sagging or breakage
• Remote reservoirs maintain cooler operating temperatures during extended off-road use
• Vehicle-specific shock valving provides unparalleled ride quality and control
• ICON CDCV equipped for 10 settings of external compression damping adjustment
• Ride height adjustable coilovers provide 7-9" of front lift over stock
• Corrosion resistant CAD plated coilover shock body with 7/8" shaft
• FK Rod End bearings for extended longevity and minimal deflection
• Decreased body roll and improved on and off-road ride dynamics
• Coilover conversion allows for addition of secondary shock
• Bolt-in system fits in ICON fabricated shock hoops
• Shocks are fully rebuildable and revalveable
