ICON 09-12 Ram 2500/3500 4.5in Stage 4 Suspension System - K214553T
- Catalog SKU
- icoK214553T
- Manufacturer part #
- K214553T
- ✓Secure checkout
- ✓Enthusiast support
- ✓Free shipping on eligible $300+ merchandise subtotals in the lower 48 states
- Returns policy
Some products and vendors are excluded, including freight/LTL and oversized items.
One Parts Desk request covers fitment, availability, and timing.
Price matches are reviewed before purchase and are not guaranteed.
Project Garage
Plan this exact partSave the selected option to a build plan in this browser. No account required.
Fitment is not verified for your saved vehicle.
Product details
Product information
Overview

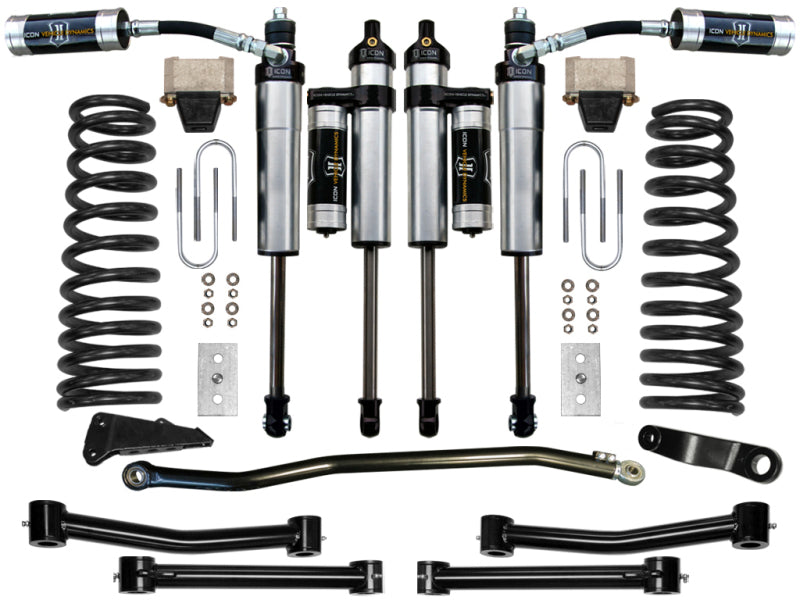

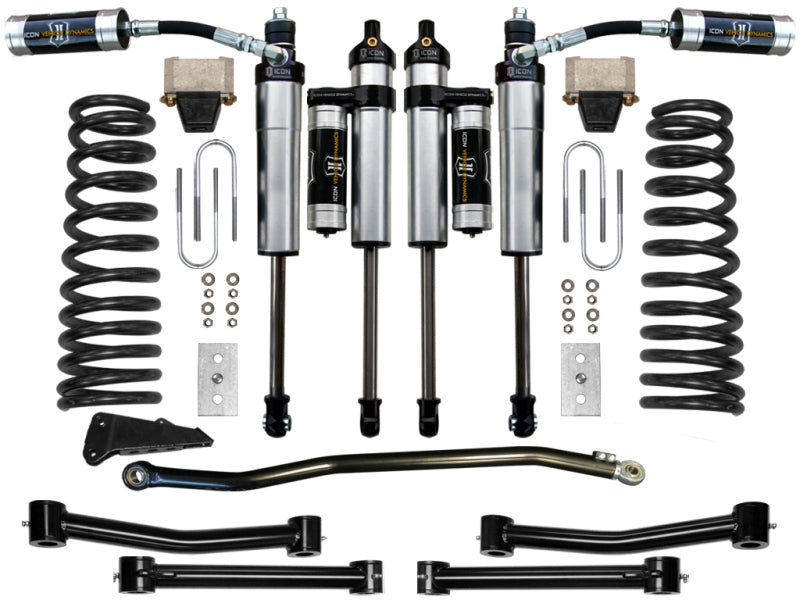

2009-2012 Ram 2500/3500 4.5" Stage 4 Suspension System utilizes the same technology as the 2.5" systems while adding lift height and ground clearance. Additional engineered front-end components are added to ensure proper steering geometry with improved function throughout the entire travel range whether on or off road. The Stage 4 System is comprised of dual rate coil springs, tubular steel upper & lower link arms, polyurethane bump stops w/ billet extension, sway bar drop brackets, forged pitman arm, track bar drop bracket, 2.5 Aluminum Series shocks, and bearing style adjustable track bar. ICON 2.5" Aluminum Series shocks extend the performance of the kit by increasing the duration of consistent damping regardless of situation. These shocks include FK bearings, billet top cap & rod ends, and 7/8" shafts for strength. The adjustable track bar with bearings not only improves rigidity over flexible factory joints, but offers adjustability to center the front axle under the truck. ICON steel upper & lower links increase performance, strength, and range of alignment. These link arms decrease the bind found in the factory link bushings. This ultimate performance system with link arms offers extraordinary diversity across any terrain, all while keeping a smooth highway feel. Installing this kit allows proper clearance for 35" tall tires with no modifications, and some 37" tires with minor fender well trimming for clearance. With the endless hours ICON has spent testing and tuning our suspension components and shocks together, you can rest assured you have the best suspension solution on the market.
Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required)
APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.25” Backspace / 13mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.50" Backspace / 12mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.50" Backspace / 12mm Offset
APPLICATION NOTE #101: CALL ICON FOR 2013 RAM 2500/3500 VEHICLES
APPLICATION NOTE #6: SPRINGS ARE RATED FOR DIESEL ENGINES ONLY
OEM Wheels & Tires Fitment: Yes
Ships in Multiple Boxes
Features & Benefits
- ICON engineered dual rate coil springs with match tuned 2.5 Aluminum Series reservoir shocks
- Increased wheel travel and ride quality over stock with no change in towing capacity
- Correctly positioned steering and track bar components
- Adjustable track bar with PTFE lined FK bearings
- Heavy-duty steel upper and lower link bars
- No drive shaft modifications needed
- Level stance front to rear
- Less body roll than stock
