ICON 10-23 Toyota 4Runner 2.5 Series Ext Travel VS RR CDEV Coilover Kit - 700LB - 58747E-700
- Catalog SKU
- ico58747E-700
- Manufacturer part #
- 58747E-700
- ✓Secure checkout
- ✓Enthusiast support
- ✓Free shipping on eligible $300+ merchandise subtotals in the lower 48 states
- Returns policy
Some products and vendors are excluded, including freight/LTL and oversized items.
One Parts Desk request covers fitment, availability, and timing.
Price matches are reviewed before purchase and are not guaranteed.
Project Garage
Plan this exact partSave the selected option to a build plan in this browser. No account required.
Fitment is not verified for your saved vehicle.
Product details
Product information
Overview

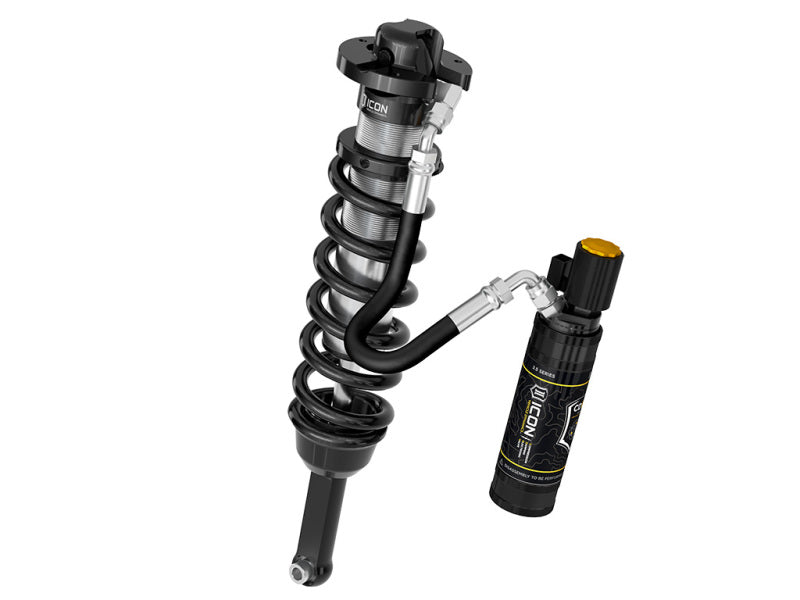

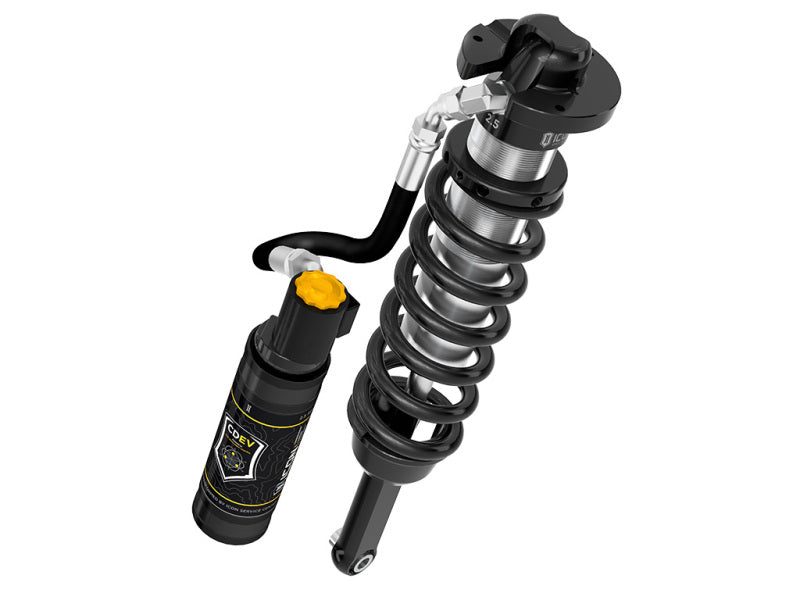

The ICON Vehicle Dynamics V.S. Series 2.5” remote reservoir coilover shocks w/ CDEV are an incredible upgrade for the front end of the 2010-2024 Toyota 4runner. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while offering 0-3.5” of lift height adjustability for use of larger, more aggressive wheel and tire combinations. Upgraded coil springs are included to better support added weight from accessories such as front bumpers and winches. ICON's larger 2.5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. The ICON CDE Valve upgrade is included for those desiring an easy way to tune the ride electronically from inside the vehicle.
TECH NOTE: 700lb/in spring rate only recommended for trucks with additional weight added to front end. See ICON Help Center for information.
APPLICATION NOTE #111: Bump stop spacer kit available that can be installed to increase threads showing beyond max recommendation.
Recommended Aftermarket Tires: 33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
APPLICATION NOTE #55: Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.
TECH NOTE: Also requires installation of IIC kit (Part # 53504) and CDEV rear shocks (Part # 57810EP)
APPLICATION NOTE #18: These systems are to be used with aftermarket upper control arms only.
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5 w/ 4.75" Backspace / 0mm Offset

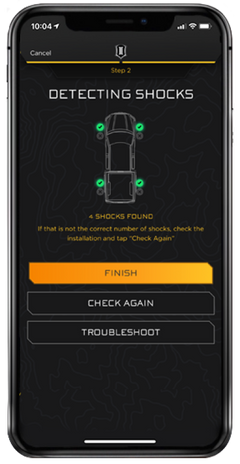

TECH NOTE: An iOS operated device is required to run ICON Intelligent Control App
Recommended Aftermarket Wheels: ICON Alloys - 20x9 w/ 5" Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9 w/ 5" Backspace / 0mm Offset
Factory Wheels & Tires Fitment: Yes
Features & Benefits
- ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
- Corrosion resistant CAD plated shock bodies with 7/8" induction hardened, chrome plated shafts
- External reservoirs to attain cooler operating temperatures during extended off-road use
- FK rod end bearings for extended longevity and minimal deflection
- Bolt-on kit - no cutting or welding necessary for installation
- Vehicle specific tuned for superior shock damping and control
- ICON engineered coil springs with 700 lbs/in spring rate
- 6061 Aircraft grade aluminum CNC machined components
- Increased wheel travel and ride quality over stock
- Adjustable for 0-3.5" of lift height over stock
- 100% Rebuildable
- 100% Revalveable
