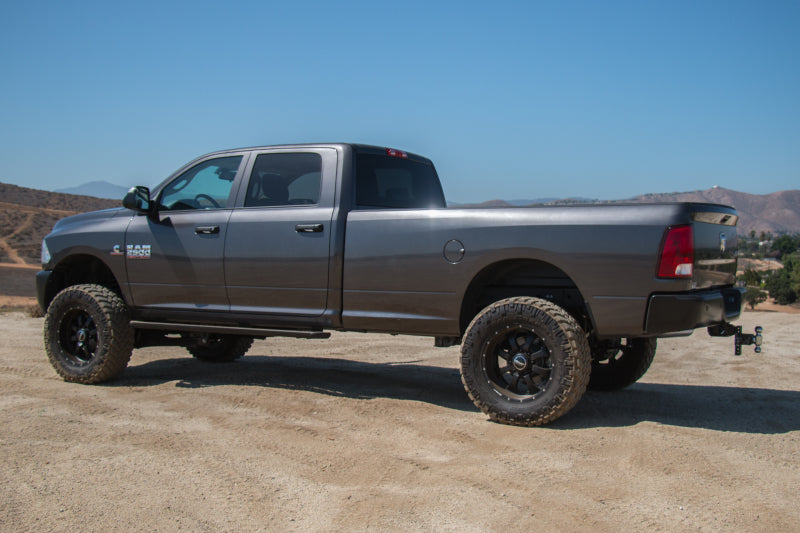

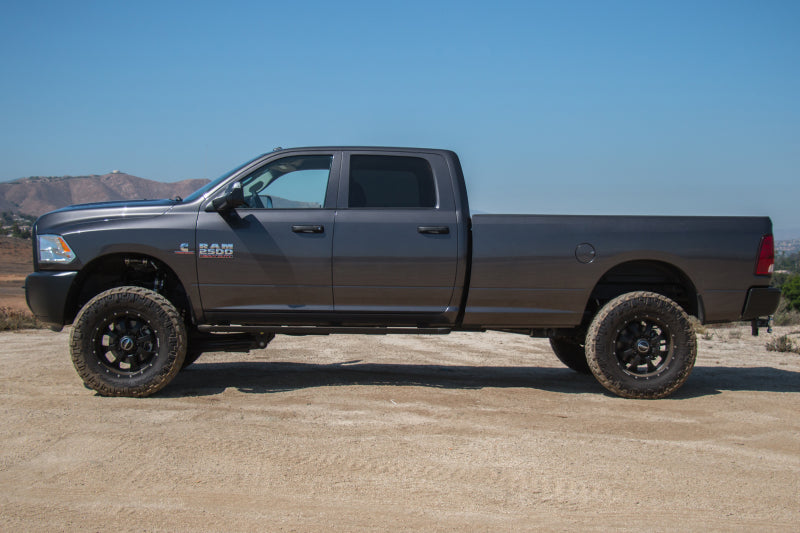

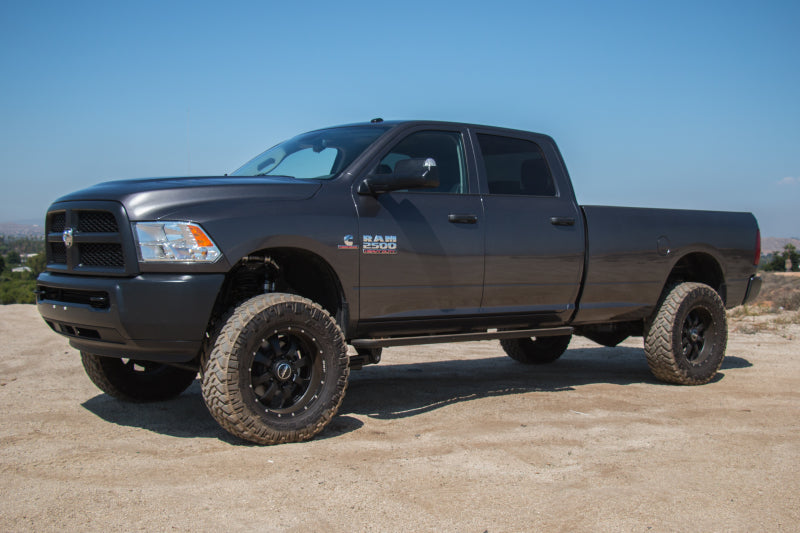

ICON 14-18 Ram 2500 4WD 4.5in Stage 3 Suspension System (Performance) - K214523P
- Catalog SKU
- icoK214523P
- Manufacturer part #
- K214523P
- ✓Secure checkout
- ✓Enthusiast support
- ✓Free shipping on eligible $300+ merchandise subtotals in the lower 48 states
- Returns policy
Some products and vendors are excluded, including freight/LTL and oversized items.
One Parts Desk request covers fitment, availability, and timing.
Price matches are reviewed before purchase and are not guaranteed.
Project Garage
Plan this exact partSave the selected option to a build plan in this browser. No account required.
Fitment is not verified for your saved vehicle.
Product details
Product information
Overview
ICON Vehicle Dynamics suspension systems for the 2014-2026 Ram 2500 4WD were designed with exceptional performance and ride quality in mind. This Stage 3 system includes ICON-engineered 4.5” dual rate coil springs, high-strength laser cut bracketry, billet bump stop spacers, fabricated rear coil spacers, and all hardware necessary for a complete install. Vehicle-specific ICON 2.5 Aluminum Series remote reservoir shocks help deliver balanced performance front to rear, while CDC (Compression Damping Control) Valve technology allows the user to adjust compression characteristics of the shocks with the turn of a knob. These features make this Stage 3 system a huge upgrade for 2014-2026 Ram 2500 4WD trucks that are not only used for daily driving and towing, but spirited off-road driving as well.
APPLICATION NOTE #607: 2019-2026 Ram 2500/3500 models require an aftermarket, high-angle front driveshaft to prevent bind. ICON part numbers 212511 or 212512 are recommended.
APPLICATION NOTE #645: Provides 4.5" of front lift on most Ram 2500 submodels. Provides 2.5" of front lift on Ram 2500 Rebel.
Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required)
APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install
APPLICATION NOTE #103: Vehicles Equipped With 2 Piece Driveshafts Require Carrier Shim Kit 214211
APPLICATION NOTE #99: Performance rear springs may cause reduced ride height while towing
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.25” Backspace / 13mm Offset
APPLICATION NOTE #12: Helper air bags are recommended for hauling/towing heavy loads
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.50" Backspace / 12mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.50" Backspace / 12mm Offset
APPLICATION NOTE #105: Not For Vehicles With Rear Factory Air Ride
APPLICATION NOTE #6: Springs Are Rated For Diesel Engines Only
APPLICATION NOTE #1: Only fits 4WD models
OEM Wheels & Tires Fitment: Yes
Ships in Multiple Boxes
Features & Benefits
- 2.5 Aluminum Series piggyback reservoir rear shocks compliment rear coils in both length and damping tune for increased rear wheel travel and suspension performance
- ICON-engineered dual rate front coil springs deliver 4.5" of front lift and exceptional vehicle control over varying terrain
- Vehicle specific tuned front 2.5 Aluminum Series remote reservoir shocks provide superior damping and ride quality
- All shock absorbers equipped with CDC Valves for 10 settings of compression damping adjustment, from soft to hard
- Vehicle specific tuned front and rear 2.5 Aluminum Series shocks provide superior damping and ride quality
- PTFE lined spherical track bar bearings eliminate bushing deflection for improved handling characteristics
- Performance triple rate rear coil springs provide 2" of rear lift and more compliant ride quality
- Precision CNC laser cut, fabricated radius arm drop brackets correct suspension geometry
- Allows use of larger, more aggressive wheel tire combinations up to 37" diameter
- Adjustable front and rear track bars realign axles and improve strength
- Increased wheel travel and suspension performance over stock
- Level stance from front to rear of vehicle

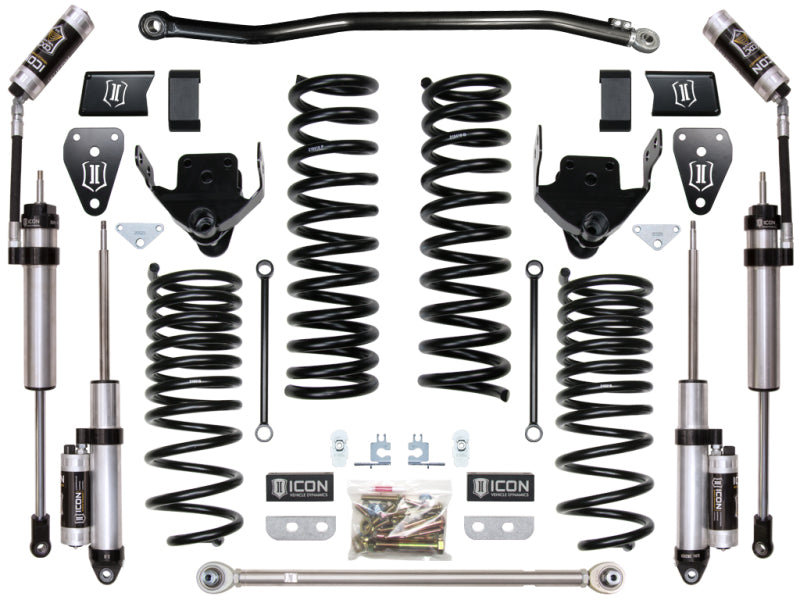

What's Included
| Qty | Part | Part # |
|---|---|---|
| 1 | ICON 2014+ Ram 2500 4.5in Front Dual Rate Spring Kit | 214201 |
| 1 | ICON 2014+ Ram 2500 2in Rear Performance Spring Kit | 214202 |
| 1 | ICON 2014+ Ram 2500 Rear Adjustable Track Bar Kit | 214204 |
| 1 | ICON 2014+ Ram 2500 4.5in Box Kit | 214205 |
| 1 | ICON 2014+ Ram 2500 4.5in Front 2.5 Series Shocks VS RR CDCV - Pair | 217803CP |
| 1 | ICON 2014+ Ram 2500 2in Performance Rear 2.5 Series Shocks VS PB CDCV - Pair | 217706CP |
| 1 | ICON 2014+ Ram 2500 Front Adjustable Track Bar Kit | 214214 |
