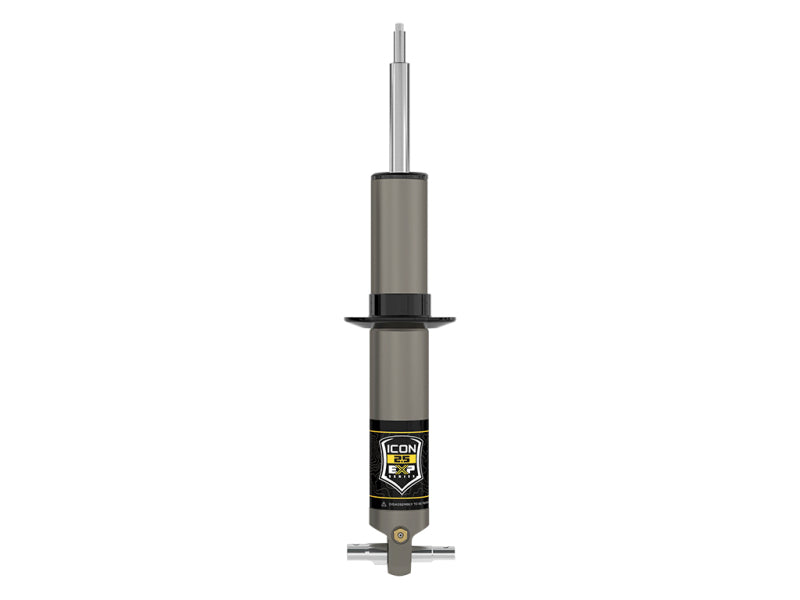

ICON 19-23 GM 1500 2.5 EXP Front Coilover Shock - 71607

EXP Series shocks utilize a one-piece digressive piston design and are custom tuned for the 2019-2023 GM 1500 in conjunction with their stock front coil springs to maximize damping performance and provide unsurpassed ride quality, on and off-road. The increased piston size and shock oil volume provided by the 2.5-inch diameter aluminum body also provide superior heat dissipation compared to the smaller, steel bodied OE shocks, resulting in longer-lasting shock performance over prolonged use at higher speeds and through rougher terrain. For those who would like to further tune their suspension, EXP shocks are fully re-valvable (and rebuildable) by any qualified shock technician, with parts available from ICON.

APPLICATION NOTE #350: Most Chevrolet Silverado and GMC Sierra submodels equipped with gasoline engines will have front lift height range of 2.375-3.75” over stock (lift heights vary slightly depending on trim/engine)

APPLICATION NOTE #338: Silverado 1500 and Sierra 1500 submodels equipped with Adaptive Ride Control also require concurrent installation of aftermarket rear shocks

APPLICATION NOTE #346: Most Chevrolet Silverado and GMC Sierra submodels equipped with diesel engines will have front lift height range of 1.75-3" over stock

APPLICATION NOTE #331: Silverado 1500 and Sierra 1500 submodels equipped with Adaptive Ride Control also require part numbers 71021 and 71022

Recommended Aftermarket Tires (Silverado 1500): 35"x12.50" (Minor fender trimming and modifications may be required)

Recommended Aftermarket Tires (Sierra 1500): 34"x12.00" (Minor fender trimming and modifications may be required)

APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE

APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install

APPLICATION NOTE #345: EXP Coilovers are sold individually. A quantity of 2 are required per vehicle.

APPLICATION NOTE #347: Not compatible with Silverado 1500 Trail Boss or Sierra 1500 AT4 submodels

APPLICATION NOTE #327: Not compatible with Silverado 1500 ZR2 or Sierra 1500 AT4X submodels

Recommended Aftermarket Wheels: ICON Alloys - 17x8.5 with 4.75” Backspace / 0mm Offset

Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 5” Backspace / 0mm Offset

Recommended Aftermarket Wheels: ICON Alloys - 20x9 with 5” Backspace / 0mm Offset

APPLICATION NOTE #110: TRIMMING REQUIRED FOR RECOMMENDED TIRE SIZE

OEM Wheels & Tires Fitment: Yes

Features & Benefits

• One-piece impact extruded aluminum hard anodized cylinders offer excellent corrosion resistance and consistent finish
• Adjustable ride heights from 2.375-3.75” of front lift over stock with the use of snap ring
• Inverted shaft up design featuring 7/8” diameter, induction hardened, chrome plated shaft
• CNC machined 6061 aluminum components with a black anodize finish
• PTFE lined bearings for extended longevity and minimal deflection
• 100% Bolt-on - no cutting or welding necessary for installation
• Vehicle specific design for the 2019-2026 GM 1500 trucks
• 2.5 Aluminum Series Shock with Internal Reservoir
• Fully rebuildable and re-tunable
• Utilizes factory coils

Downloads & Resources

• Installation Instructions (PDF)
