ICON 19-23 RAM 1500 2-3in Stage 7 Suspension System - Tubular - K213117T

The dual-rate rear coil design provides a softer ride height spring rate with a firmer overload rate that combine to deliver on-road comfort with excellent bottoming resistance and superior off-road performance. 1.5” of rear lift height over stock allows a for level stance front to rear. An adjustable rear track bar ensures proper rear axle alignment and removes bushing deflection caused by soft rubber, stock track bar bushings. Tubular rear upper and lower links feature PTFE-lined FK rod ends and multi durometer bushings for increased suspension articulation and reduced deflection with link arm length adjustability. ICON 2.5 Aluminum Series CDCV piggyback reservoir rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The included ICON CDC Valves are externally adjustable valves that restrict oil flow into the reservoir which creates 10 levels of compression damping force ranges. The ICON Vehicle Dynamics 2019-2026 Ram 1500 Stage 7 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.

APPLICATION NOTE #55: Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.

APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install

APPLICATION NOTE #653: 2019-2026 Ram 1500 Rebel will have lift height range of 1.25-2.25" over stock

Recommended Aftermarket Tires: 35" x 12.50" (fender trimming and modifications will be required.)

APPLICATION NOTE #99: Performance rear springs may cause reduced ride height while towing

Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.00" Backspace / 0mm Offset

Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.00" Backspace / 0mm Offset

APPLICATION NOTE #654: Provides 1" of rear lift on 2019-2026 Ram 1500 Rebel

APPLICATION NOTE #100: Spring not rated for EcoDiesel equipped trucks

APPLICATION NOTE #131: Will not fit 2019-2024 Ram 1500 Classic models

APPLICATION NOTE #105: Not for vehicles with rear factory air ride

APPLICATION NOTE #184: Will not fit Ram 1500 TRX or Ram 1500 RHO

OEM Wheels & Tires Fitment: Yes

Features & Benefits

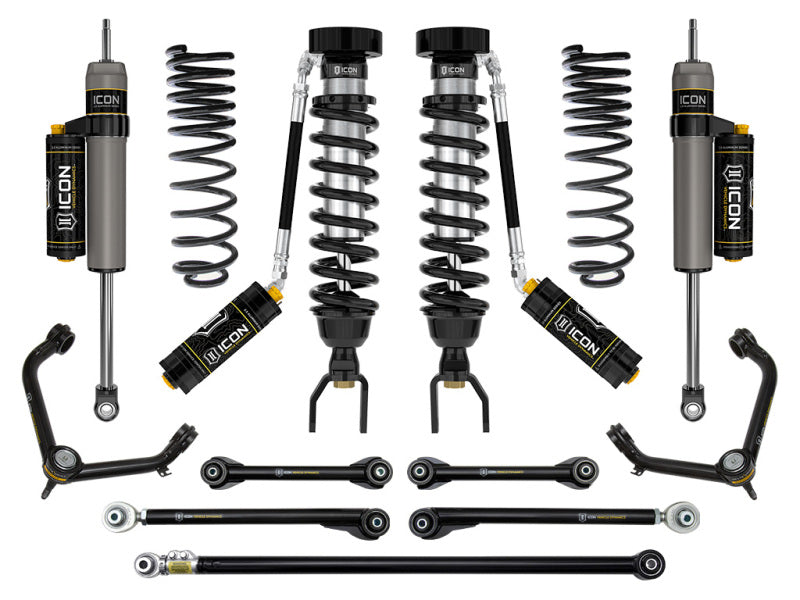

• Tubular rear upper and lower links improve strength, articulation, and are adjustable in length for various ride heights and driveline angles
• All shock absorbers equipped with CDC Valves for 10 settings of compression damping adjustment, from soft to hard
• Tubular Upper Control Arms with Delta Joint ball joints for added strength, durability, and alignment spec range
• Dual rate rear coil springs improve performance and ride quality while providing 1.5" of rear lift
• On-vehicle adjustable rear track bar for precise track alignment using ICON’s Double Adjuster
• 2.5 Series front coilovers with remote reservoirs for improved shock cooling and performance
• Vehicle specific tuned front and rear shocks for superior damping and vehicle control
• Increased wheel travel and ride quality over stock with no change in towing capacity
• Adjustable remote reservoir coilovers yield 2-3" of front lift height over stock
• 2.5 Aluminum Series rear piggyback reservoir shocks with 7/8" polished shafts
• 100% Bolt-on system - no drilling, cutting, or welding necessary for install
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• FK rod end bearings for extended longevity and minimal deflection
• 6061 Aircraft grade aluminum CNC machined components
