ICON 2005+ Ford Super Duty Front Lower Adjustable Link Kit - 164502
- Catalog SKU
- ico164502
- Manufacturer part #
- 164502
- ✓Secure checkout
- ✓Enthusiast support
- ✓Free shipping on eligible $300+ merchandise subtotals in the lower 48 states
- Returns policy
Some products and vendors are excluded, including freight/LTL and oversized items.
One Parts Desk request covers fitment, availability, and timing.
Price matches are reviewed before purchase and are not guaranteed.
Project Garage
Plan this exact partSave the selected option to a build plan in this browser. No account required.
Fitment is not verified for your saved vehicle.
Product details
Product information
Overview

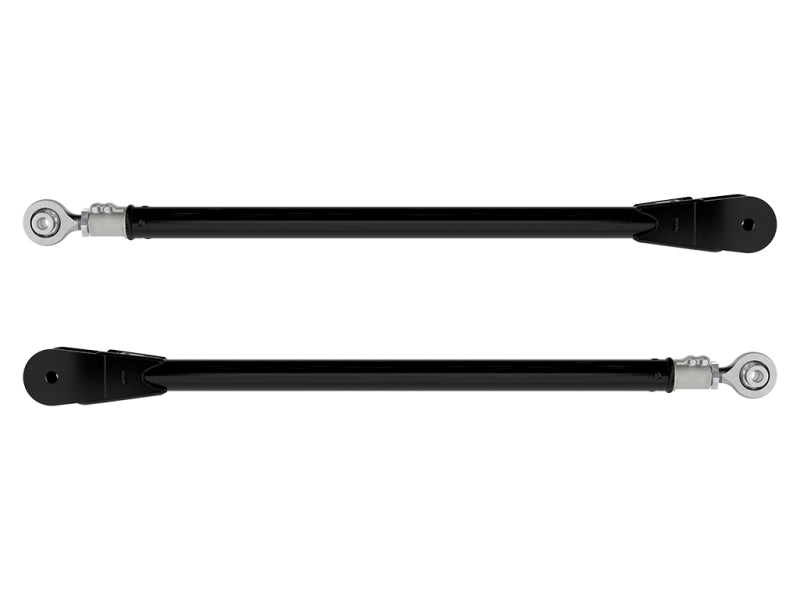

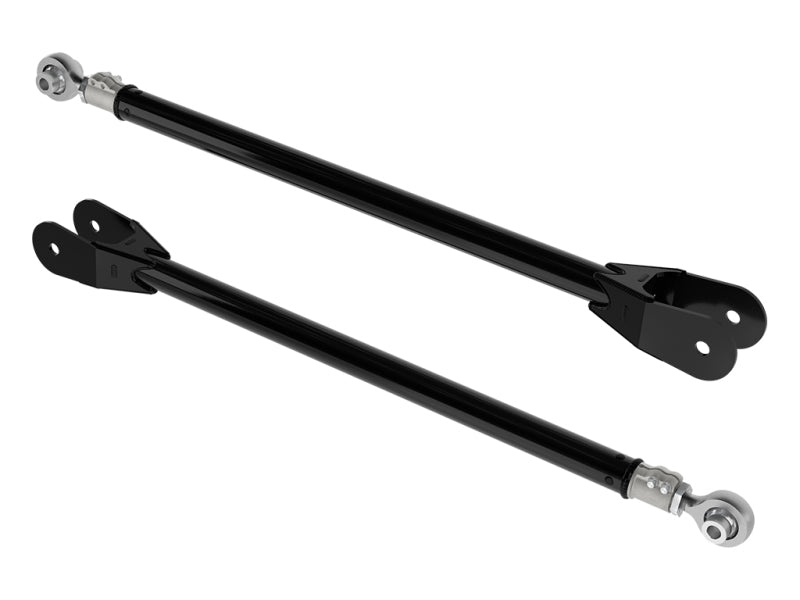

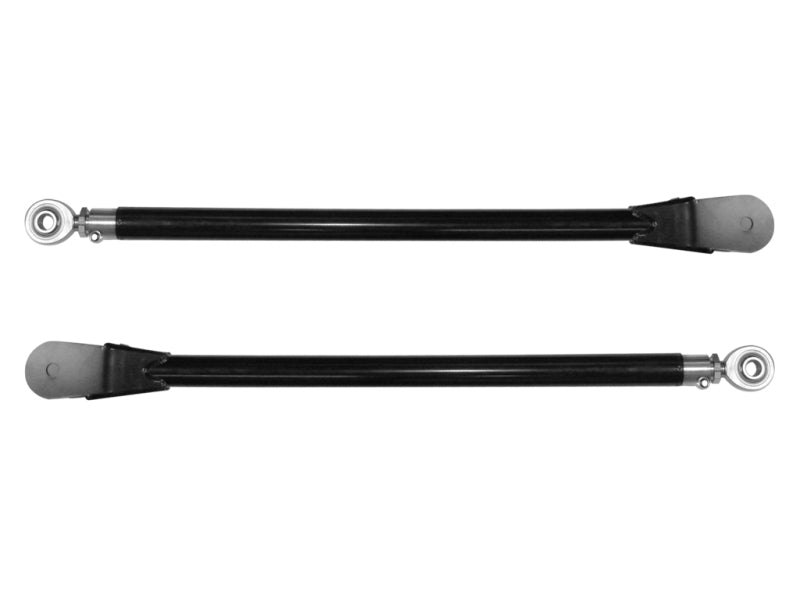

These lower links are an essential component of the ICON 2005-2026 Ford Super Duty 4-Link Conversion System. This 4-Link system not only gives your Ford Super Duty an aggressive look, it enhances the articulation of the front suspension by eliminating bushing bind and improves handling of the truck by maintaining consistent caster angles through the entirety of the front suspension travel range. The large, deflective radius arm bushings are replaced with competition grade, PTFE lined spherical bearings in each link. This harder surface minimizes deflection to further increase the overall handling characteristics for maximum predictability and suspension responsiveness. Additionally, the ICON double adjusters in the lower links allows tuning of caster angle while the links are installed on the vehicle, easing the front-end alignment process.
APPLICATION NOTE #488: 2017-2022 models require ICON 4-Link brackets part number 164504 and ICON upper links part number 164501 for complete installation.
APPLICATION NOTE #486: 2005-2010 models require ICON 4-Link brackets part number 164500 and ICON upper links part number 164501 for complete installation.
APPLICATION NOTE #487: 2011-2016 models require ICON 4-Link brackets part number 164503 and ICON upper links part number 164501 for complete installation.
APPLICATION NOTE #489: 2023-2026 models require ICON 4-Link brackets part number 64053 and ICON upper links part number 64052 for complete installation.
Requires ICON 4-Link brackets, part # 164500, 164503, or 164504 and ICON upper links part # 164502 for complete installation.
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset
APPLICATION NOTE #485: Compatible with 2.5"-7" of front lift
Recommended Aftermarket Tires: Up to 37" x 12.50"
APPLICATION NOTE #1: Only fits 4WD models
Factory Wheels & Tires Fitment: Yes
Features & Benefits
- 4-Link system maintains consistent caster angles through suspension travel for superior handling characteristics
- Lower links are constructed from CNC machined 2” x .188” wall DOM steel tubing
- Allow on-vehicle caster adjustment via ICON double adjusters in lower links
- Fabricated components covered under ICON's Limited Lifetime Warranty
- Improves front end articulation and overall drivability
- Corrosion resistant semi-gloss black powder coat finish
- PTFE lined FK spherical bearings eliminate deflection
