ICON 2005+ Ford Super Duty Rear Fixed Front Upper Links - 164501
- Catalog SKU
- ico164501
- Manufacturer part #
- 164501
- ✓Secure checkout
- ✓Enthusiast support
- ✓Free shipping on eligible $300+ merchandise subtotals in the lower 48 states
- Returns policy
Some products and vendors are excluded, including freight/LTL and oversized items.
One Parts Desk request covers fitment, availability, and timing.
Price matches are reviewed before purchase and are not guaranteed.
Project Garage
Plan this exact partSave the selected option to a build plan in this browser. No account required.
Fitment is not verified for your saved vehicle.
Product details
Product information
Overview
These upper links are an essential component of the ICON 2005-2022 Ford Super Duty 4-Link Conversion System. This 4-Link system not only gives your Ford Super Duty an aggressive look, it enhances the articulation of the front suspension by eliminating bushing bind and improves handling of the truck by maintaining consistent caster angles through the entirety of the front suspension travel range. The large, deflective radius arm bushings are replaced with competition grade, PTFE lined spherical bearings in each link. This harder surface minimizes deflection to further increase the overall handling characteristics for maximum predictability and suspension responsiveness. Additionally, the ICON double adjusters in the lower links allows tuning of caster angle while the links are installed on the vehicle, easing the front-end alignment process.
TECH NOTE: Requires ICON 4-Link brackets depending on year range: part number 164500, 164503, or 164504, and ICON lower links, part number 164502, for complete installation.
Requires ICON 4-Link brackets, part # 164500, 164503, or 164504 and ICON lower links part # 164501 for complete installation.
TECH NOTE: Only fits 2005-2022 Ford Super Duty 4WD models
TECH NOTE: Compatible with 2.5"-7" of front lift
Features & Benefits
- 4-Link system maintains consistent caster angles through suspension travel for superior handling characteristics

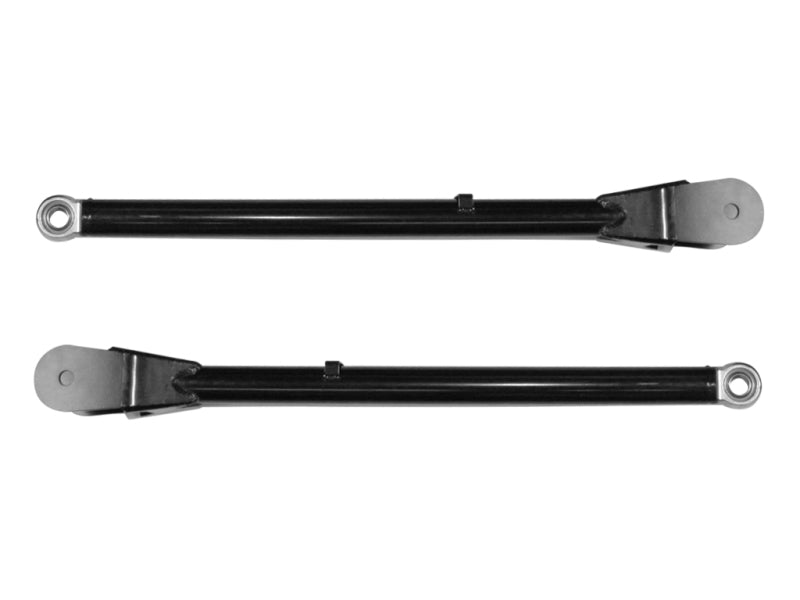

- Upper links are constructed from CNC machined 2” x .188” wall DOM steel tubing
- Allow on-vehicle caster adjustment via ICON double adjusters in lower links
- Fabricated components covered under ICON's Limited Lifetime Warranty
- Corrosion resistant semi-gloss black powder coat finish
- Improves front end articulation and overall drivability
- PTFE lined FK spherical bearings eliminate deflection
