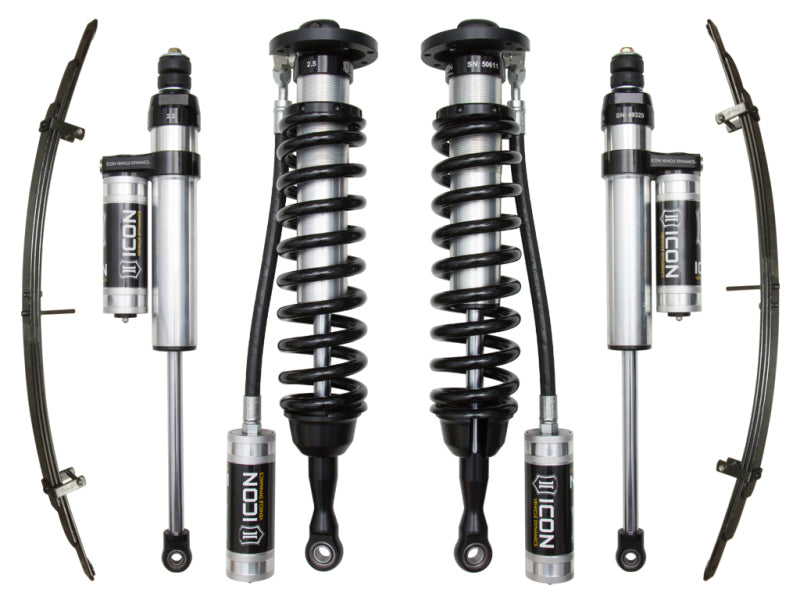

ICON 2007+ Toyota Tundra 1-3in Stage 4 Suspension System - K53024
- Catalog SKU
- icoK53024
- Manufacturer part #
- K53024
- ✓Secure checkout
- ✓Enthusiast support
- ✓Free shipping on eligible $300+ merchandise subtotals in the lower 48 states
- Returns policy
Some products and vendors are excluded, including freight/LTL and oversized items.
One Parts Desk request covers fitment, availability, and timing.
Price matches are reviewed before purchase and are not guaranteed.
Project Garage
Plan this exact partSave the selected option to a build plan in this browser. No account required.
Fitment is not verified for your saved vehicle.
Product details
Product information
Overview
ICON Vehicle Dynamics Toyota Tundra Stage 4 suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. The Stage 4 system includes vehicle-specific tuned 2.5” coilover shocks featuring a remote reservoir for exceptional cooling properties. These coilovers are also height adjustable from 1-3” of lift allowing the use of larger, more aggressive wheel and tire combinations. ICON 2.5 Aluminum Series piggyback rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2007-2021 Toyota Tundra Stage 4 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
APPLICATION NOTE #24: Factory UCA's Will Not Align Properly Past 2.5” Of Lift. Above 2.5” Of Lift An Aftermarket UCA Is Recommended.
APPLICATION NOTE #111: BUMP STOP SPACER KIT AVAILABLE THAT CAN BE INSTALLED TO INCREASE THREADS SHOWING BEYOND MAX RECOMMENDATION.
Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.75” Backspace / 25mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.625” Backspace / 16mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 6.00” Backspace / 25mm Offset
APPLICATION NOTE #110: TRIMMING REQUIRED FOR RECOMMENDED TIRE SIZE
APPLICATION NOTE #122: NOT COMPATIBLE WITH REAR TRD SWAY BAR KIT
OEM Wheels & Tires Fitment: Yes
Ships in Multiple Boxes
Features & Benefits
- Rear 2.5 Aluminum Series piggyback shocks with one-piece impact extruded aluminum cylinders and 7/8" shafts
- Increased wheel travel and ride quality over stock with no change in towing capacity
- Vehicle specific tuned front and rear shocks for superior shock damping and control
- 100% Bolt-on system - no drilling, cutting, or welding necessary for install
- Corrosion resistant CAD plated coilover shock body with 7/8" shaft
- FK rod end bearings for extended longevity and minimal deflection
- Rear expansion pack for 1.5” of lift and better ride quality
- 6061 Aircraft grade aluminum CNC machined components
- Adjustable coilovers from 1-3" of lift height
