ICON

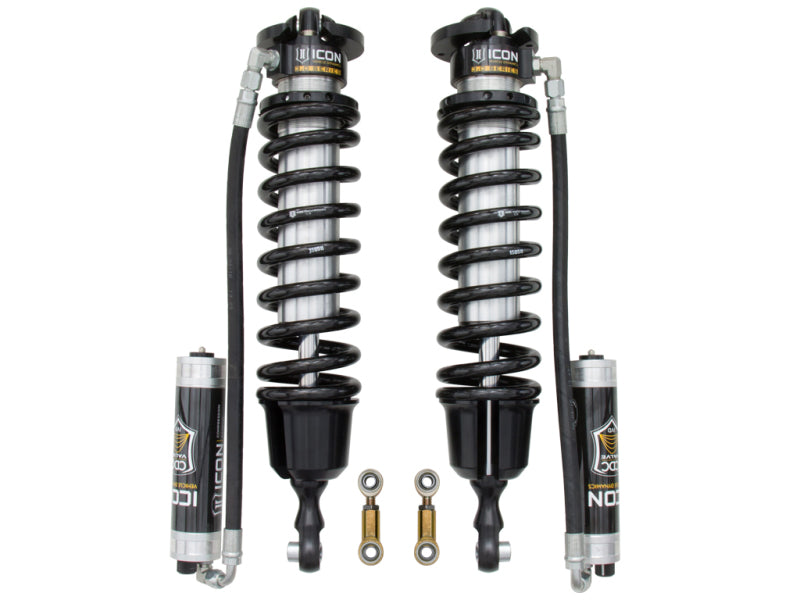

ICON 2007+ Toyota Tundra 3.0 Series Shocks VS RR CDCV Coilover Kit - 58755
- Catalog SKU
- ico58755
- Manufacturer part #
- 58755
- ✓Secure checkout
- ✓Enthusiast support
- ✓Free shipping on eligible $300+ merchandise subtotals in the lower 48 states
- Returns policy
Some products and vendors are excluded, including freight/LTL and oversized items.
One Parts Desk request covers fitment, availability, and timing.
Price matches are reviewed before purchase and are not guaranteed.
Project Garage
Plan this exact partSave the selected option to a build plan in this browser. No account required.
Fitment is not verified for your saved vehicle.
Product details
Product information
Overview

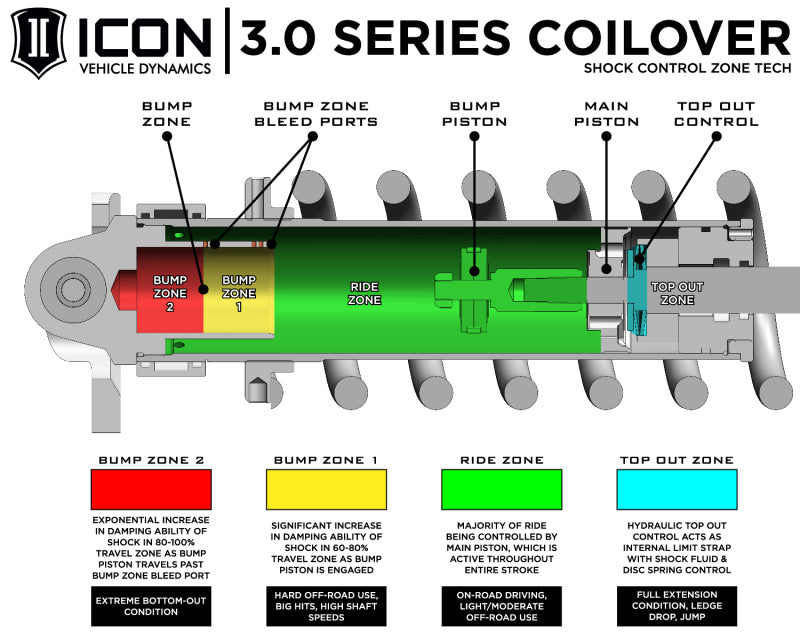

Compared to the 2.5” diameter coilovers the 3.0 Series shocks see a piston surface area increase of 50% in the ride zone, and 100% in the “Bump Zone”. This translates into increased stability and vehicle control at the extremes of off-road use, with benefits also making themselves apparent in on-road driving conditions. The multi-stage hydraulic Bump Zone featured in these 3.0 Series shocks exponentially increases bottom-out resistance as the shock travels through the last 40% of travel, keeping vehicle dynamics in check during those hard hits or unexpected obstacles.
APPLICATION NOTE #111: Bump stop spacer kit available that can be installed to increase threads showing beyond max recommendation.
Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
APPLICATION NOTE #55: Shocks are fully serviceable. Coilover heights indicated are for a stock equipped vehicle
APPLICATION NOTE #18: These systems are to be used with aftermarket upper control arms ONLY
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.75” Backspace / 25mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.625” Backspace / 16mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 6.00” Backspace / 25mm Offset
APPLICATION NOTE #110: Trimming required for recommended tire size
OEM Wheels & Tires Fitment: Yes
Features & Benefits
- Easy-to-adjust CDC Valve (Compression Damping Control) allows for end-user compression changes to suit all types of terrain and vehicle cargo configurations
- ICON’s multi-stage, tunable hydraulic “Bump Zone” exponentially increases bottom-out resistance in the last 40% of compression travel
- Increased wheel travel and vehicle specific valving provides comfortable and consistent ride quality on and off-road
- 10” aluminum reservoirs provide generous oil and nitrogen volume for consistent damping with temperature increase
- “ICON 1K” tested under rigorous off-road conditions to validate tune, performance, strength, and durability
- Significant increase in damping ability for excellent performance in extreme off-road conditions
- High quality ICON-engineered coil springs offer increased travel and performance
- PTFE lined COM12 spherical bearings ensure maximum strength and durability
- Adjustable coilovers provide 1.63-3.5” of front lift height over stock
- Multi stage CAD plated shock body with hard anodized piston and top cap

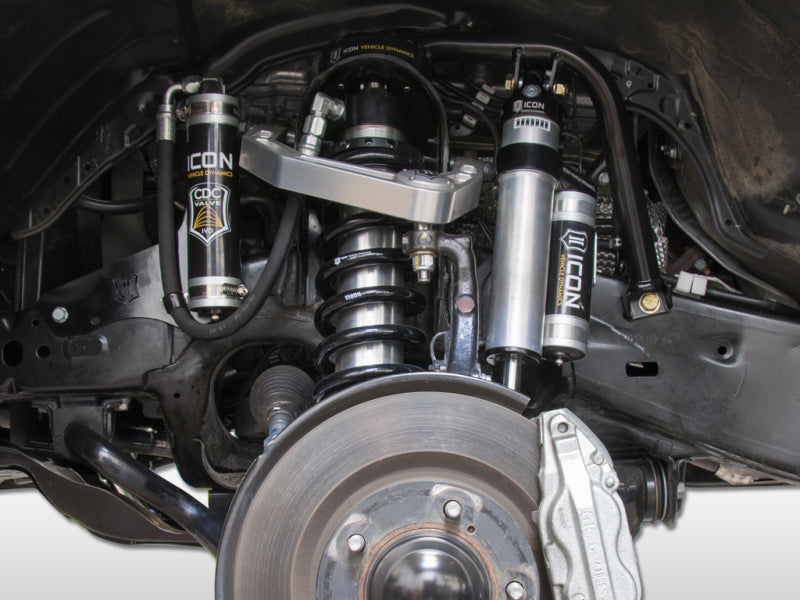

- Direct bolt-in to OEM shock location makes for an easy install
- Heavy duty 1” CNC machined shock shafts
- Fully serviceable
Downloads & Resources
Application & fitment
Fitment has not been independently verified for your vehicle. Confirm the manufacturer application against your year, make, model, trim, and modifications before ordering.
Shipping & availability
Processing and carrier timing vary by stock status and destination. Final shipping services and costs are confirmed at checkout.
