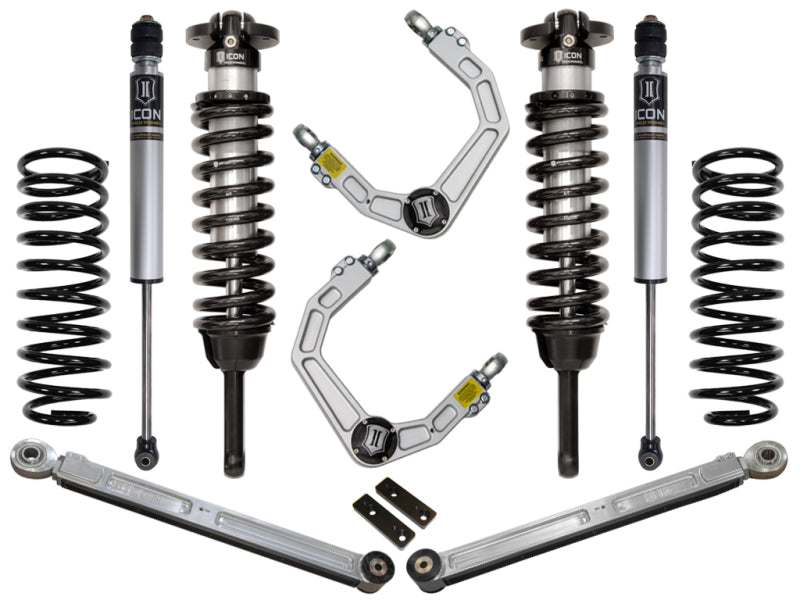

ICON 2010+ Toyota FJ/4Runner 0-3.5in Stage 3 Suspension System w/Billet Uca - K53063
- Catalog SKU
- icoK53063
- Manufacturer part #
- K53063
- ✓Secure checkout
- ✓Enthusiast support
- ✓Free shipping on eligible $300+ merchandise subtotals in the lower 48 states
- Returns policy
Some products and vendors are excluded, including freight/LTL and oversized items.
One Parts Desk request covers fitment, availability, and timing.
Price matches are reviewed before purchase and are not guaranteed.
Project Garage
Plan this exact partSave the selected option to a build plan in this browser. No account required.
Fitment is not verified for your saved vehicle.
Product details
Product information
Overview
ICON Vehicle Dynamics 2010-2024 Toyota 4Runner and 2010-2014 Toyota FJ Cruiser suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. This Stage 3 system includes vehicle-specific tuned 2.5” coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable for 0-3.5” of front lift over stock, allowing the use of larger, more aggressive wheel and tire combinations. Their extended travel length improves performance by increasing front wheel travel and require the addition of ICON front upper control arms. Billet aluminum Delta Joint upper control arms not only add strength and durability but help retain factory alignment specs, offer on-vehicle caster/camber adjustment, and allow proper wheel alignment at the lift height this system provides. ICON billet aluminum adjustable rear lower links are made from CNC machined 6061 aluminum and anodized for corrosion resistance. These link arm kits feature PTFE-lined FK rod ends and polyurethane bushings for increased suspension articulation, reduced deflection, and on-vehicle link arm length adjustability using ICON’s double adjuster system. ICON rear coil springs deliver on-road comfort and superior off-road performance with 2” of rear lift height over stock for a level stance front to rear. ICON 2.0 Aluminum Series internal reservoir rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2010-2024 Toyota 4Runner and 2010-2014 Toyota FJ Cruiser Stage 3 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
APPLICATION NOTE #111: Bump stop spacer kit available that can be installed to increase threads showing beyond max recommendation.
Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
APPLICATION NOTE #55: Shocks are fully serviceable. Coilover heights indicated are for a stock equipped vehicle.
APPLICATION NOTE #30: An adjustable track bar is recommended to realign the axle but not required.
APPLICATION NOTE #18: These systems are to be used with aftermarket upper control arms only.
APPLICATION NOTE #47: 700lb/in Expedition Coil available for heavier equipped vehicles.
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.00” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.00” Backspace / 0mm Offset
APPLICATION NOTE #102: KDSS equipped require rear track bar 54200.
OEM Wheels & Tires Fitment: Yes
Ships in multiple boxes
Features & Benefits
- Billet aluminum upper control arms for added strength, durability, adjustability, and improved alignment geometry
- Extended Travel coilovers matched with ICON UCA provides increased front droop travel
- Vehicle specific tuned front and rear shocks for superior shock damping and control
- Billet Aluminum rear lower links offer on vehicle pinion angle adjustment
- 2.0 Aluminum Series internal reservoir rear shocks with 5/8" shafts
- Corrosion resistant CAD plated coilover shock body with 7/8" shaft
- FK Rod End bearings for extended longevity and minimal deflection
- Bolt-on system means no cutting or welding necessary for install
- Adjustable coilovers provide 0-3.5" of front lift height
- 6061 aircraft grade aluminum CNC machined components
- Increased wheel travel and ride quality over stock
