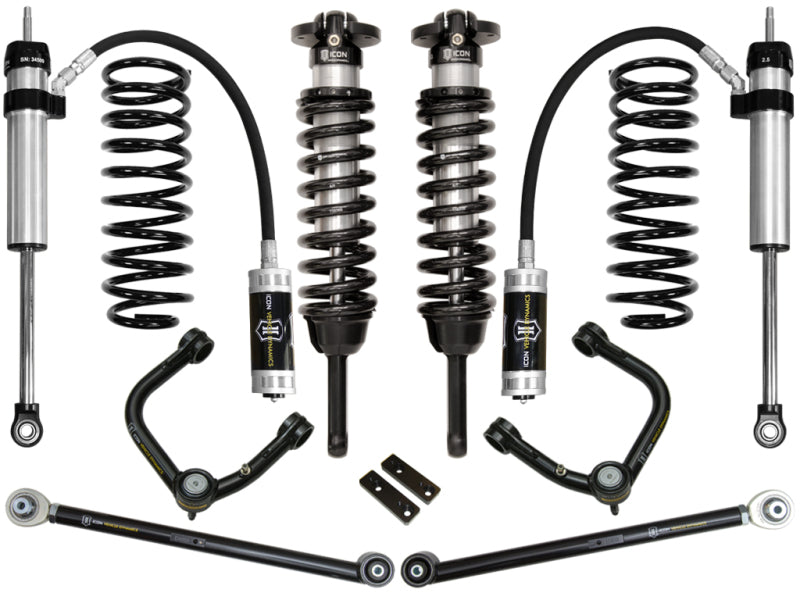

ICON 2010+ Toyota FJ/4Runner 0-3.5in Stage 4 Suspension System w/Tubular Uca - K53064T
- Catalog SKU
- icoK53064T
- Manufacturer part #
- K53064T
- ✓Secure checkout
- ✓Enthusiast support
- ✓Free shipping on eligible $300+ merchandise subtotals in the lower 48 states
- Returns policy
Some products and vendors are excluded, including freight/LTL and oversized items.
One Parts Desk request covers fitment, availability, and timing.
Price matches are reviewed before purchase and are not guaranteed.
Project Garage
Plan this exact partSave the selected option to a build plan in this browser. No account required.
Fitment is not verified for your saved vehicle.
Product details
Product information
Overview
ICON Vehicle Dynamics 2010-2024 Toyota 4Runner and 2010-2014 Toyota FJ Cruiser suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. This Stage 4 system includes vehicle-specific tuned, extended travel 2.5” coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable for 0-3.5” of front lift over stock, allowing the use of larger, more aggressive wheel and tire combinations. Tubular Delta Joint upper control arms not only add strength and durability, but help retain factory alignment specs, increasing caster over stock and allow proper wheel alignment at the lift height this system provides. ICON's tubular steel lower links are much stronger than the OE units, feature a low maintenance multi-durometer bushing, and can be adjusted for optimum pinion angle. ICON rear coil springs deliver on-road comfort and superior off-road performance with 2” of rear lift height over stock for a level stance front to rear. The 2.5 Aluminum Series rear shocks’ larger diameter offers outstanding performance off-road and a smooth ride on the street. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping, keeping the shocks at a cooler operating temperature during heavy use. They also feature a unique internal Bump Zone that creates an additional 20% of damping force to help better control hard bottom outs. The ICON Vehicle Dynamics Toyota 4Runner and Toyota FJ Cruiser Stage 4 system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
APPLICATION NOTE #111: Bump stop spacer kit available that can be installed to increase threads showing beyond max recommendation.
Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
APPLICATION NOTE #55: Shocks are fully serviceable. Coilover heights indicated are for a stock equipped vehicle.
APPLICATION NOTE #30: An adjustable track bar is recommended to realign the axle but not required.
APPLICATION NOTE #18: These systems are to be used with aftermarket upper control arms only.
APPLICATION NOTE #47: 700lb/in Expedition Coil available for heavier equipped vehicles.
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.00” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.00” Backspace / 0mm Offset
APPLICATION NOTE #102: KDSS equipped require rear track bar 54200.
OEM Wheels & Tires Fitment: Yes
Ships in multiple boxes
Features & Benefits
- Tubular rear lower links offer increased strength, improved geometry, and pinion angle adjustment
- Tubular upper control arms for added strength, durability, and improved alignment geometry
- Extended Travel coilovers matched with ICON UCA provides increased front droop travel
- Vehicle specific tuned front and rear shocks for superior shock damping and control
- Corrosion resistant CAD plated coilover shock body with 7/8" shaft
- 2.5 Aluminum Series remote reservoir rear shocks with 7/8" shafts
- FK Rod End bearings for extended longevity and minimal deflection
- Bolt-on system means no cutting or welding necessary for install
- Adjustable coilovers provide 0-3.5" of front lift height
- 6061 aircraft grade aluminum CNC machined components
- Increased wheel travel and ride quality over stock
