ICON

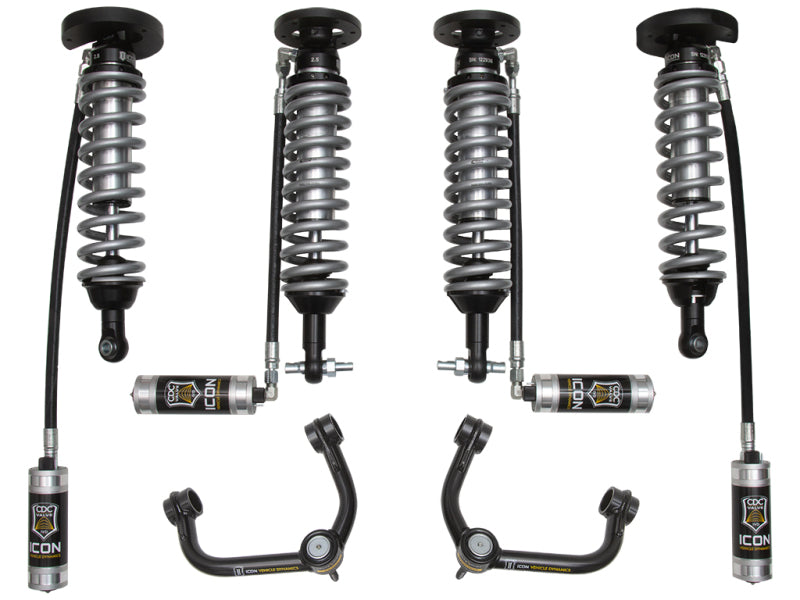

ICON 2014+ Ford ExpeditioICON 4WD .75-2.25in Stage 2 Suspension System w/Tubular Uca - K93302T
- Catalog SKU
- icoK93302T
- Manufacturer part #
- K93302T
- ✓Secure checkout
- ✓Enthusiast support
- ✓Free shipping on eligible $300+ merchandise subtotals in the lower 48 states
- Returns policy
Some products and vendors are excluded, including freight/LTL and oversized items.
One Parts Desk request covers fitment, availability, and timing.
Price matches are reviewed before purchase and are not guaranteed.
Project Garage
Plan this exact partSave the selected option to a build plan in this browser. No account required.
Fitment is not verified for your saved vehicle.
Product details
Product information
Overview
Like any application that makes its way into ICON’s research and development department, the Ford Expedition was examined thoroughly in stock form in an attempt to find where the OE components were limiting performance or could be improved upon. After hours of in-house R&D and thousands of miles of real-world testing a collection of ICON components including front and rear coilovers and upper control arms were organized into two staged suspension systems that each delivers a unique level of performance to the Expedition. A remarkable level of performance is established with the 2.5 Series remote reservoir CDC Valve shocks included in ICON’s Stage 1 system, and only improves with the addition of upper control arms (tubular steel or billet aluminum) in the Stage 2 systems. These systems drastically increase the vehicle’s ride quality, reduce body roll, maximize wheel travel, and provide a lift height range of .75-2.25” to allow for the fitment of larger, more aggressive wheel and tire combinations. A bolt-on design also makes for an easy install with the ability for the vehicle to be returned to stock if needed.
Recommended Aftermarket Tires: 33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.625" Backspace / 16mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25" Backspace / 6mm Offset
APPLICATION NOTE #124: REAR LIFT HEIGHTS OVER 1" INCREASE ADVANCETRAC SENSITIVITY
Factory Wheels & Tires Fitment: Yes
Features & Benefits
- Vehicle specific tuned front and rear shocks for superior damping and vehicle control
- Increased wheel travel and ride quality over stock with no change in towing capacity
- Tubular Upper Control Arms for added strength, durability, and alignment spec range
- 100% Bolt-on system - no cutting, or welding necessary for install
- Unique valving developed specifically for the 2014-2020 Expedition
- Corrosion resistant CAD plated coilover shock body with 7/8" shaft
- FK rod end bearings for extended longevity and minimal deflection
- 6061 Aircraft grade aluminum CNC machined components
- Adjustable coilovers from .75-2.25" of lift height
- High strength alloy CNC machined lower bar pin
Downloads & Resources
Application & fitment
Fitment has not been independently verified for your vehicle. Confirm the manufacturer application against your year, make, model, trim, and modifications before ordering.
Shipping & availability
Processing and carrier timing vary by stock status and destination. Final shipping services and costs are confirmed at checkout.
