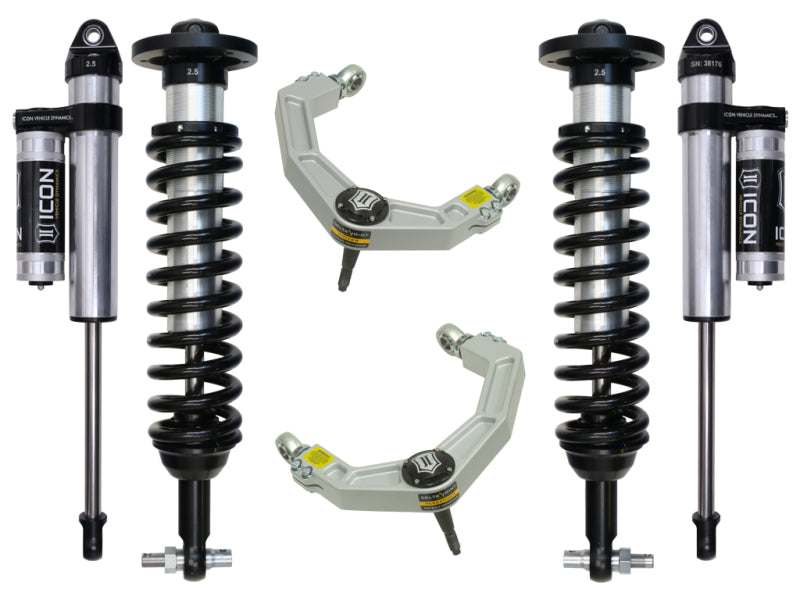

ICON 2015+ Ford F-150 2WD 0-3in Stage 3 Suspension System w/Billet Uca - K93093

ICON Vehicle Dynamics 2015-2020 Ford F150 2WD suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. The Stage 3 system includes vehicle-specific tuned 2.5” coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered Eibach coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from 0-3” of lift over stock allowing the use of larger, more aggressive wheel and tire combinations. Billet aluminum upper control arms on the F150 not only add strength and durability, but help retain factory alignment spec range increasing caster over stock. ICON 2.5 Aluminum Series Piggyback rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. 2.5" reservoir shocks ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. The ICON Vehicle Dynamics 2015-2020 F150 2WD Stage 3 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.

OEM Wheels & Tires Fitment: Not compatible with all available OE wheel/tire combinations. Aftermarket wheels with lower offset/less backspace recommended.

Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)

APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE

TECH NOTE: Models equipped with Power-Stroke diesel engines will have lift height range of 0-2.5" over stock

TECH NOTE: Included rear shocks are compatible with 0-1" of rear lift over stock on most models

Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset

Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.625" Backspace / 16mm Offset

Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25" Backspace / 6mm Offset

TECH NOTE: Only compatible with rear wheel drive (2WD/RWD) models

Ships in multiple boxes

Features & Benefits

• 2.5 Aluminum Series rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
• Billet aluminum upper control arms for added strength, durability, and improved alignment geometry
• Vehicle specific tuned front and rear shocks for superior damping and vehicle control
• Increased wheel travel and ride quality over stock with no change in towing capacity
• Unique valving developed for the lighter weight of the 2015-2020 F150
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• FK Rod End bearings for extended longevity and minimal deflection
• Bolt-on system - No cutting or welding necessary for install
• 6061 aircraft grade aluminum CNC machined components
• Adjustable coilovers provide 0-3" of lift height
• High strength alloy CNC machined lower bar pin

Downloads & Resources

• Installation Instructions (PDF)
• Installation Instructions (PDF)
• Installation Instructions (PDF)
