ICON
ICON 2015+ Ford F-150 4WD 0-2.63in Stage 1 Suspension System - K93081
- Catalog SKU
- icoK93081
- Manufacturer part #
- K93081
- ✓Secure checkout
- ✓Enthusiast support
- ✓Free shipping on eligible $300+ merchandise subtotals in the lower 48 states
- Returns policy
Some products and vendors are excluded, including freight/LTL and oversized items.
One Parts Desk request covers fitment, availability, and timing.
Price matches are reviewed before purchase and are not guaranteed.
Project Garage
Plan this exact partSave the selected option to a build plan in this browser. No account required.
Fitment is not verified for your saved vehicle.
Product details
Product information
Overview

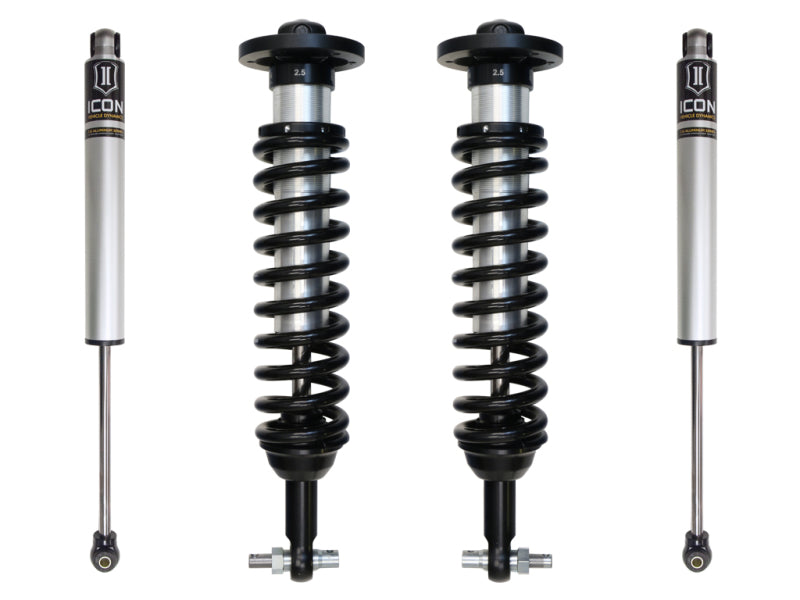

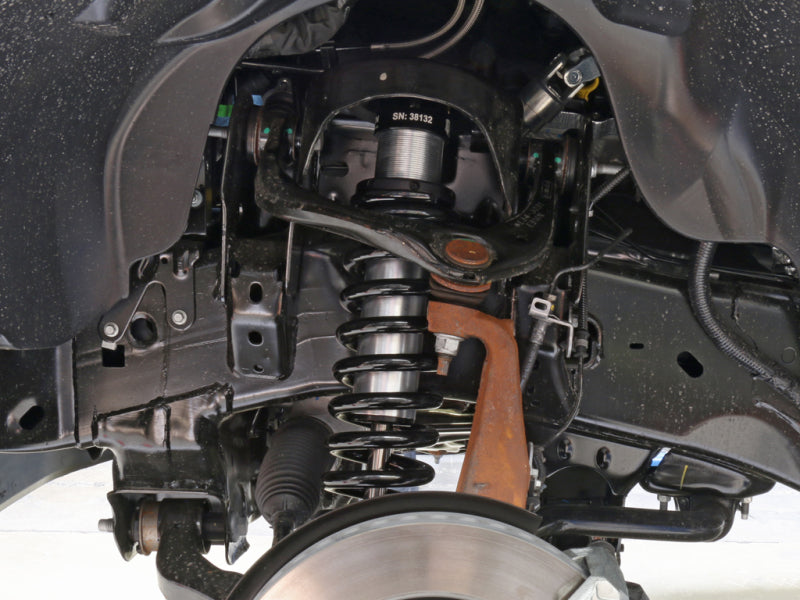

ICON Vehicle Dynamics 2015-2020 Ford F-150 4WD suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. The Stage 1 system includes vehicle-specific tuned 2.5” coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered Eibach coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from 0-2.63” allowing the use of larger, more aggressive wheel and tire combinations. ICON 2.0 Aluminum Series monotube rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2015-2020 F-150 4WD Stage 1 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
TECH NOTE: Lift heights above 2” over stock may require aftermarket front upper control arms to maintain proper alignment
Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
TECH NOTE: Models equipped with Power-Stroke diesel engines will have lift height range of 0-2.13" over stock
TECH NOTE: Included rear shocks are compatible with 0-1" of rear lift over stock on most models
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.625" Backspace / 16mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25" Backspace / 6mm Offset
TECH NOTE: Only compatible with 4-wheel drive (4WD) models
OEM Wheels & Tires Fitment: Yes
Ships in multiple boxes
Features & Benefits
- Vehicle specific tuned front and rear shocks for superior damping and vehicle control
- Increased wheel travel and ride quality over stock with no change in towing capacity
- 100% Bolt-on system - no drilling, cutting, or welding necessary for install
- Unique valving developed for the lighter weight of the 2015-2020 F-150
- FK rod end bearings for extended longevity and minimal deflection
- Corrosion resistant CAD plated coilover shock body with 7/8 shaft
- 2.0 aluminum body rear IFP shock with 5/8" polished shaft
- 6061 Aircraft grade aluminum CNC machined components
- Adjustable coilovers from 0-2.63" of lift height
- High strength alloy CNC machined lower bar pin
Downloads & Resources
Application & fitment
Fitment has not been independently verified for your vehicle. Confirm the manufacturer application against your year, make, model, trim, and modifications before ordering.
Shipping & availability
Processing and carrier timing vary by stock status and destination. Final shipping services and costs are confirmed at checkout.
