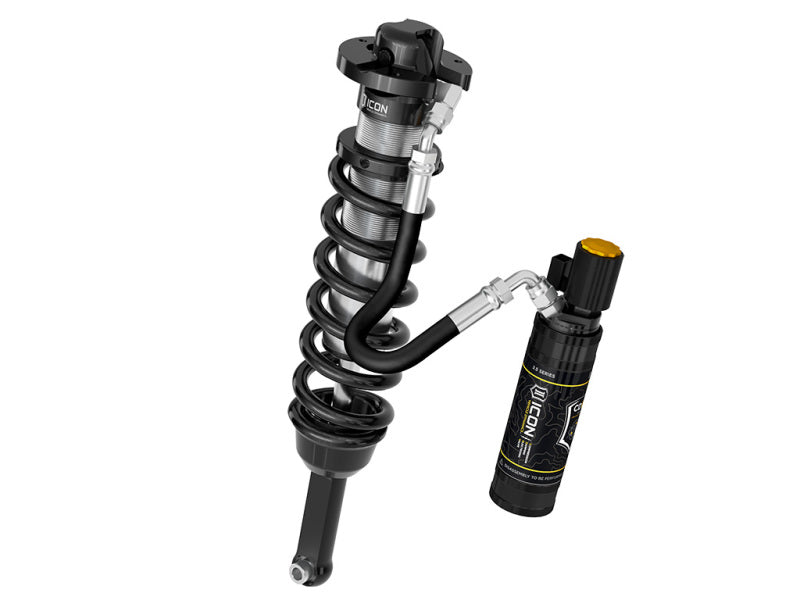

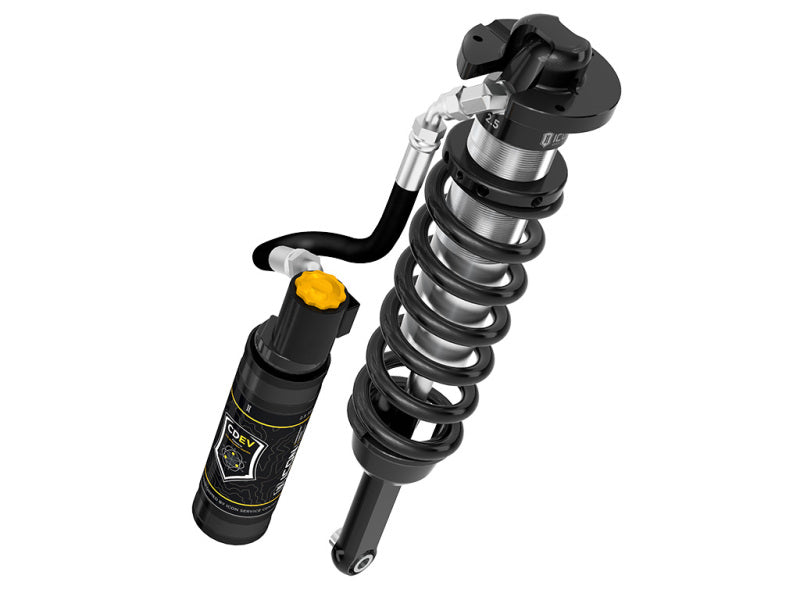

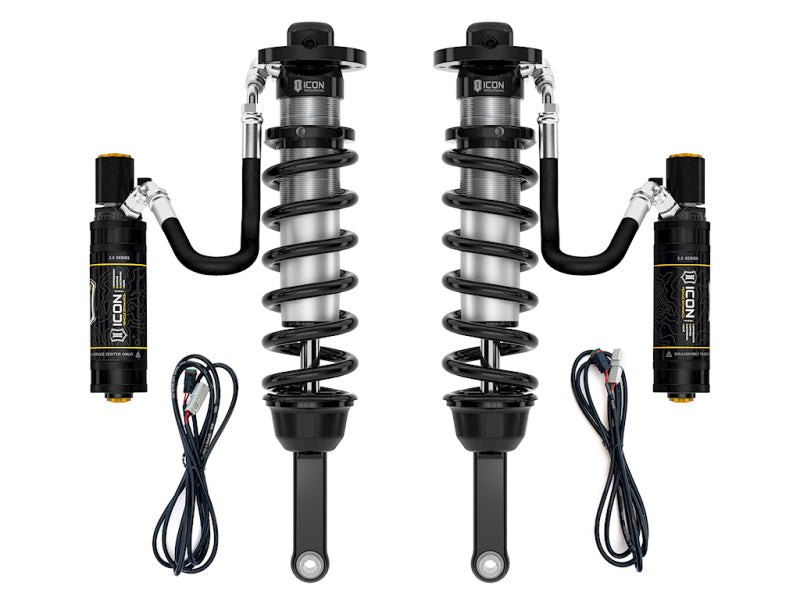

ICON 2016+ Toyota Tacoma 2.5 Series Ext Travel VS RR CDEV Coilover Kit - 58735E

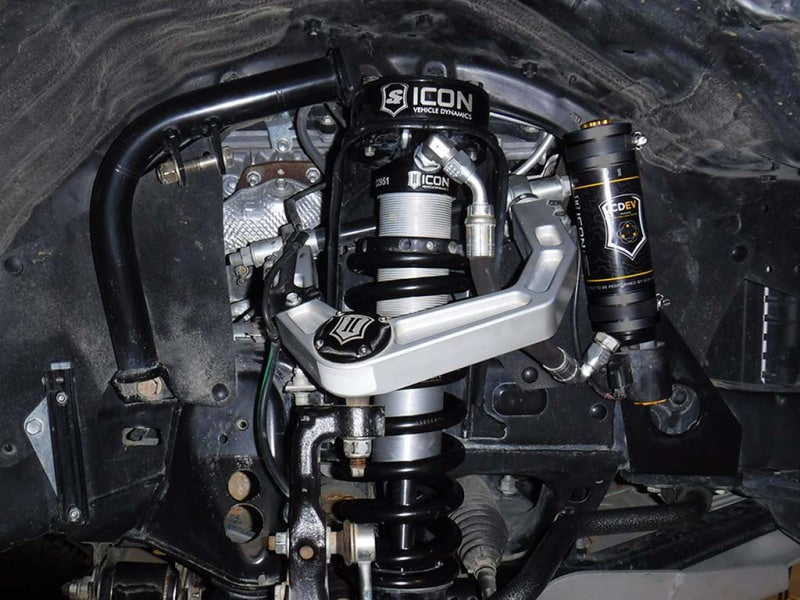

The ICON Vehicle Dynamics V.S. Series 2.5” remote reservoir coilover shocks w/ CDEV are an incredible upgrade for the front end of the 2005-2023 Toyota Tacoma. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while offering 0-3.5" of lift height adjustability on 2005-2015 Tacomas or 0-2.75” of lift height adjustment on 2016-2023 models for use of larger, more aggressive wheel and tire combinations. ICON's larger 2.5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. The ICON CDE Valve upgrade is included for those desiring an easy way to tune the ride electronically from inside the vehicle.

Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)

APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle

APPLICATION NOTE #111: Bump Stop Spacer Kit 51045 Can Be Installed To Increase Preload .25” Beyond Maximum

APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install

TECH NOTE: 2017-2023 Tacoma TRD Pro models will have front lift height range of 0-1.25" over stock

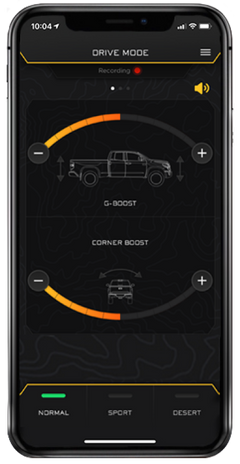

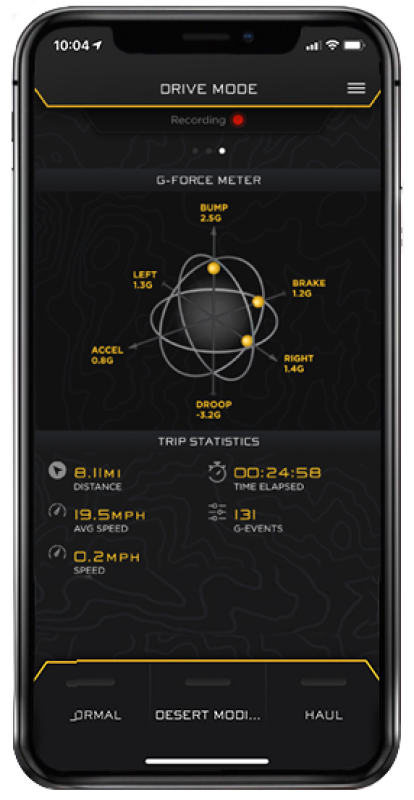

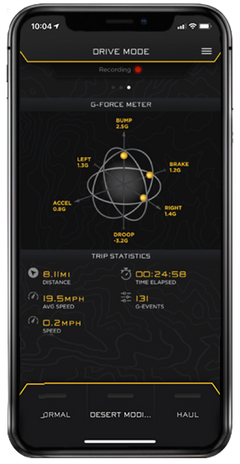

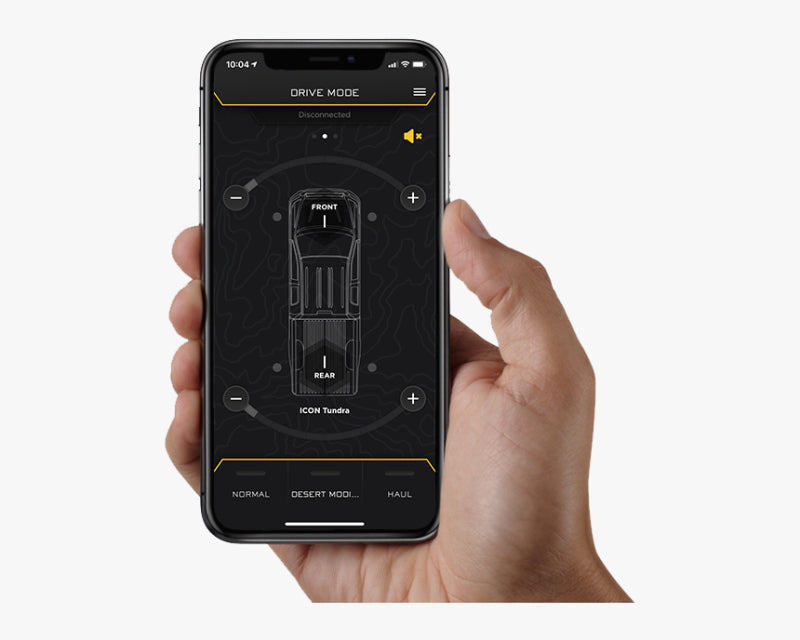

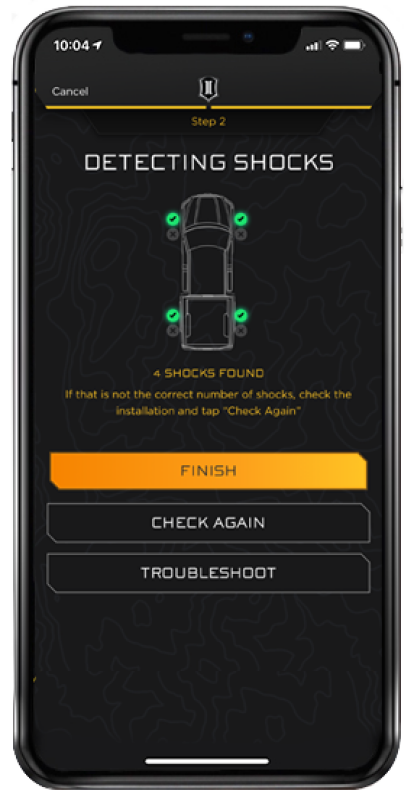

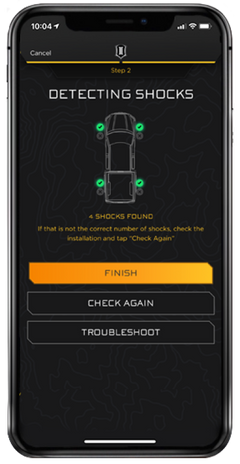

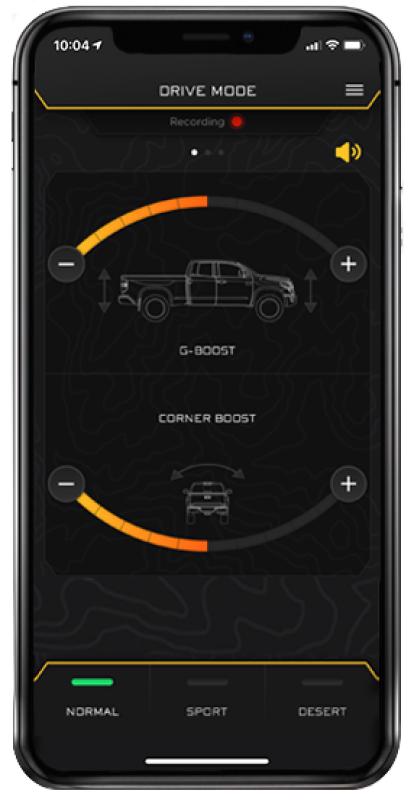

APPLICATION NOTE #198: An iOS operated device is required to run ICON Intelligent Control app

APPLICATION NOTE #203: Also requires installation of applicable IIC kit and CDEV rear shocks

APPLICATION NOTE #18: These systems are to be used with aftermarket upper control arms only

TECH NOTE: 2005-2015 Toyota Tacoma will have front lift height range of 0-3.5" over stock

Recommended Aftermarket Wheels: ICON Alloys - 17x8.5 with 4.75” Backspace / 0mm Offset

APPLICATION NOTE #47: 700Lb/In Expedition Coil Available For Heavier Equipped Vehicles

Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 5.00” Backspace / 0mm Offset

Recommended Aftermarket Wheels: ICON Alloys - 20x9 with 5.00” Backspace / 0mm Offset

TECH NOTE: Not compatible with 2005-2015 2WD 5-Lug Toyota Tacoma models

APPLICATION NOTE #185: Will not fit 2WD Tacoma with 5 wheel lug studs

APPLICATION NOTE #110: Trimming Required For Recommended Tire Size

APPLICATION NOTE #109: 2016-2023 Tacoma Lift Range Is 0-2.75”

OEM Wheels & Tires Fitment: Yes

Features & Benefits

• ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
• Corrosion resistant CAD plated shock bodies with 7/8" induction hardened, chrome plated shafts
• Adjustable for 0-3.5" (2005-2015 models) or 0-2.75" (2016-UP models) of lift height over stock
• External reservoirs to attain cooler operating temperatures during extended off-road use
• FK rod end bearings for extended longevity and minimal deflection
• Bolt-on kit - no cutting or welding necessary for installation
• Vehicle specific tuned for superior shock damping and control
• 6061 Aircraft grade aluminum CNC machined components
• Increased wheel travel and ride quality over stock
• ICON engineered Eibach Springs
• 100% Revalveable
• 100% Rebuildable

Downloads & Resources

• Installation Instructions (PDF)
• Link To Manufacturer Page
• Video File (MP4)
• Installation Instructions (PDF)
