ICON 2018+ Jeep Wrangler JL 2.5in Stage 3 Suspension System - K22013
- Catalog SKU
- icoK22013
- Manufacturer part #
- K22013
- ✓Secure checkout
- ✓Enthusiast support
- ✓Free shipping on eligible $300+ merchandise subtotals in the lower 48 states
- Returns policy
Some products and vendors are excluded, including freight/LTL and oversized items.
One Parts Desk request covers fitment, availability, and timing.
Price matches are reviewed before purchase and are not guaranteed.
Project Garage
Plan this exact partSave the selected option to a build plan in this browser. No account required.
Fitment is not verified for your saved vehicle.
Product details
Product information
Overview

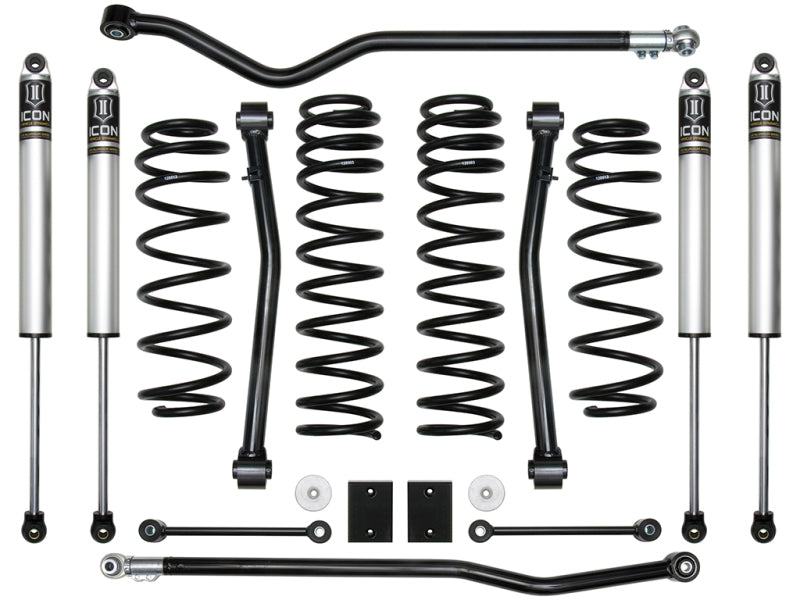

The ICON Vehicle Dynamics Stage 3 2.5" Suspension System for the 2018-UP Jeep Wrangler JL is designed for the driver looking to drastically improve the performance and ride quality of their vehicle. This Stage 3 system includes 2.5" lift dual rate coil springs, Vehicle Specific 2.0 Aluminum Series shocks, adjustable front upper links, tubular steel front lower links, adjustable front and rear track bars, bump stop spacers, sway bar links, and all necessary hardware to complete the installation. With this combination of components, ICON was able to increase wheel travel numbers by over 30% (3" front, 2" rear), redefining the potential of the 2018-UP JL. The front lower links included with this system are constructed from thick wall steel tubing, provide increased castor numbers, and feature dual durometer bushings for noise free operation, maximum articulation, and minimal bind. The Stage 3 system allows for fitment of 35" tires when used with ICON's recommended wheel specifications. For users looking to install 37" tires, an optional bump stop spacer kit (PN: 22029) is available.
TECH NOTE: ICON’s advertised lift heights are based around a typical Jeep JL build which usually includes added weight of accessories such as heavier front bumper/winch and heavier rear bumper/spare tire. Lift heights may be higher than advertised if installed on a stock weighted vehicle.
TECH NOTE: Not compatible with Wrangler JL 4xe or Unlimited Rubicon 392 trims. See ICON Help Center for more information.
APPLICATION NOTE #66: 2 DOOR MODELS SIT SLIGHTLY HIGHER THAN 4 DOOR MODELS BUT REMAIN LEVEL WHEN INSTALLED
Recommended Aftermarket Tires: 35" x 12.50" (37" x 12.50" with optional bump stop spacer kit PN: 22029)
TECH NOTE: Diesel models will net approx. 1.75" of front lift over stock due to their heavier weight.
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.5” Backspace / -6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 4.5” Backspace / -12mm Offset
APPLICATION NOTE #150: SHOCKS ARE FULLY SERVICEABLE
OEM Wheels & Tires Fitment: Yes
Ships In Multiple Boxes
Features & Benefits
- Tubular steel link arms with dual durometer bushings for noise free performance, maximum articulation, and minimal bind
- “ICON 1K” tested under rigorous off-road conditions to validate tune, performance, strength, and durability
- Dual rate coil springs with lifetime guarantee against sagging/breakage
- Fits 35" tires (37" with optional bump stop spacer kit PN: 22029)
- 2.0 Aluminum Series shocks with vehicle specific valving
- Improves on and off-road ride quality over stock
- 100% bolt-on system makes for an easy install
- 3" front, 2" rear increase in wheel travel
- 2.5" lift height
Downloads & Resources
Application & fitment
Fitment has not been independently verified for your vehicle. Confirm the manufacturer application against your year, make, model, trim, and modifications before ordering.
Shipping & availability
Processing and carrier timing vary by stock status and destination. Final shipping services and costs are confirmed at checkout.
