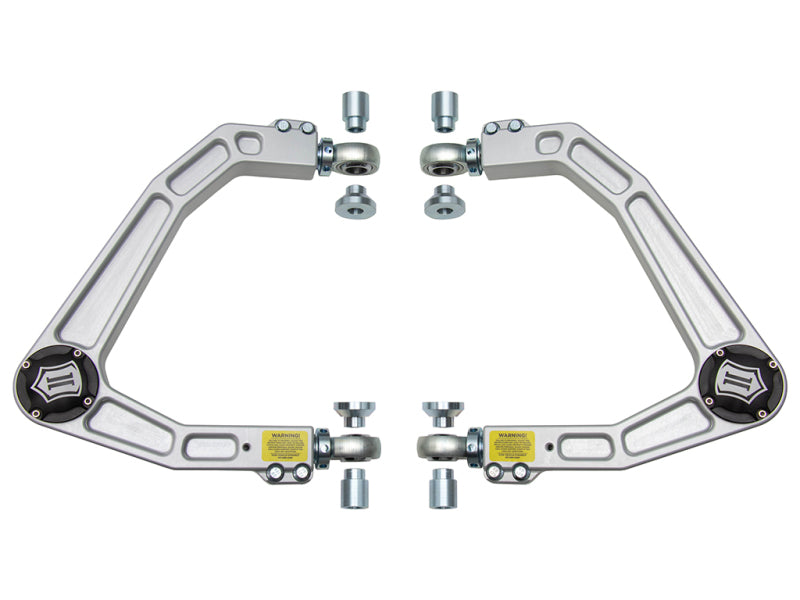

ICON 2019+ GM 1500 Billet Upper Control Arm Delta Joint Kit - 78720DJ

These upper control arms feature ICON's patented Delta Joint. The Delta Joint is a heavy-duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application - exposure to the elements. The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greaseable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation. What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint.

APPLICATION NOTE #333: Compatible with 0-3.5" of front lift over stock on most pickup submodels. Compatible with 0-1.5" of front lift over stock on Silverado 1500 Trail Boss and Sierra 1500 AT4 models.

APPLICATION NOTE #336: Silverado 1500 and Sierra 1500 submodels equipped with Adaptive Ride Control also require concurrent installation of aftermarket front and rear shocks

TECH NOTE: NOT compatible with 2019 Chevrolet Silverado 1500 LD or 2019 GMC Sierra 1500 Limited. Instead see parts for 2014-2018 year models.

APPLICATION NOTE #331: Silverado 1500 and Sierra 1500 submodels equipped with Adaptive Ride Control also require part numbers 71021 and 71022

APPLICATION NOTE #330: Will not fit SUV submodels equipped with Magnetic Ride Control and/or Adaptive Air Ride suspension.

APPLICATION NOTE #332: Trimming of the upper control arm stops required or down travel will be limited by upper arm stop

Recommended Aftermarket Tires (Silverado): 35"x12.50" (Minor fender trimming and modifications may be required)

Recommended Aftermarket Tires (Sierra): 34"x12.00" (Minor fender trimming and modifications may be required)

Recommended Aftermarket Tires (SUV): 33"x12.50" (Minor fender trimming and modifications may be required)

APPLICATION NOTE #334: Compatible with 0-3.25" of front lift over stock on most GM SUV submodels.

Recommended Aftermarket Wheels: ICON Alloys - 17x8.5 with 4.75” Backspace / 0mm Offset

Recommended Aftermarket Wheels: ICON Alloys - 20x9 with 5” Backspace / 0mm Offset

Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 5” Backspace / 0mm Offset

APPLICATION NOTE #327: Not compatible Silverado 1500 ZR2 or Sierra 1500 AT4X

APPLICATION NOTE #335: Only fits models equipped with coil front springs

OEM Wheels & Tires Fitment: Yes

Features & Benefits

• CNC machined 6061 billet aluminum construction for light weight and exceptional strength
• Camber and caster adjustability allows for precise wheel alignment
• Features ICON's Patented Delta Joint (U.S. Patent No. 10,731,700)
• ICON double adjuster sleeves allow for on-vehicle adjustment
• Vehicle specific taper pin provides OE-like fitment
• PTFE Lined 7/8” FK Rod Ends for improved response
• Built in o-ring sealed dust cover cap

Downloads & Resources

• Installation Instructions (PDF)
