ICON 2019+ Ram 1500 2/4WD 0-1.5in Stage 1 Suspension System - K213101
- Catalog SKU
- icoK213101
- Manufacturer part #
- K213101
- ✓Secure checkout
- ✓Enthusiast support
- ✓Free shipping on eligible $300+ merchandise subtotals in the lower 48 states
- Returns policy
Some products and vendors are excluded, including freight/LTL and oversized items.
One Parts Desk request covers fitment, availability, and timing.
Price matches are reviewed before purchase and are not guaranteed.
Project Garage
Plan this exact partSave the selected option to a build plan in this browser. No account required.
Fitment is not verified for your saved vehicle.
Product details
Product information
Overview
ICON Vehicle Dynamics Dodge Ram 1500 suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. The Stage 1 system includes vehicle-specific tuned 2.5” coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from 0-1.5” of lift over stock, allowing the use of larger, more aggressive wheel and tire combinations. ICON 2.0 Aluminum Series monotube rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2019-2026 Ram 1500 Stage 1 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required)
APPLICATION NOTE #55: Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.
APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install
APPLICATION NOTE #650: 2019-2026 Ram 1500 Rebel will have front lift height range of 0-.75" over stock
APPLICATION NOTE #14: Included rear shocks are compatible with 0-3" of rear lift over stock
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.00" Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.00" Backspace / 0mm Offset
APPLICATION NOTE #162: Not compatible with factory air ride equipped vehicles
APPLICATION NOTE #100: Springs not rated for EcoDiesel equipped trucks
APPLICATION NOTE #131: Will not fit 2019-2024 Ram 1500 classic models.
APPLICATION NOTE #184: Will not fit Ram 1500 TRX or Ram 1500 RHO
OEM Wheels & Tires Fitment: Yes
Features & Benefits
- Adjustable coilovers from 0-1.5" of lift height allow for fitment of larger and more aggressive tires
- ICON shocks feature vehicle specific tune for superior performance and ride quality
- 100% Bolt-on system - no drilling, cutting, or welding necessary for install
- 6061 Aircraft grade aluminum CNC machined components
- Shocks are fully rebuildable and revalvable
- Fits 2WD & 4WD applications

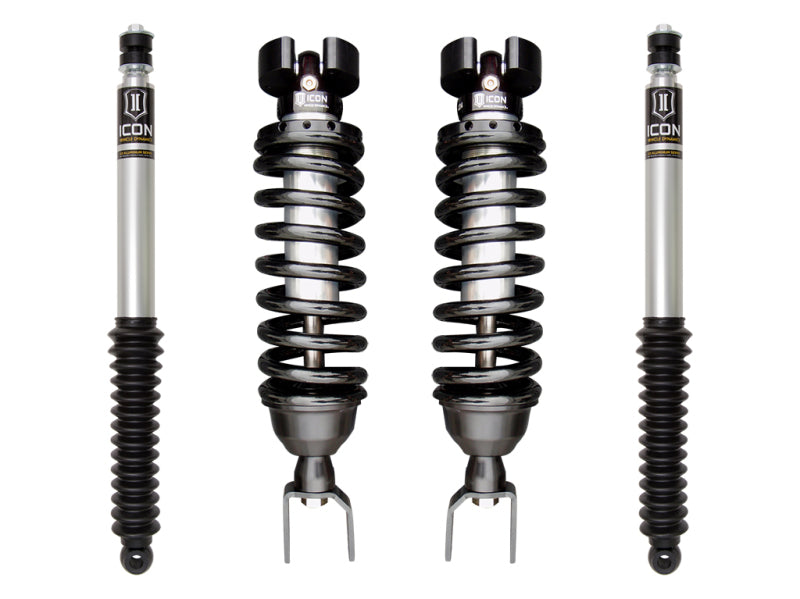

What's Included
| Qty | Part | Part # |
|---|---|---|
| 2 | ICON 2019+ Ram 1500 Rear 2.0 Series Aluminum Shocks VS IR | 216533 |
| 1 | ICON 2019+ Ram 1500 2/4WD / 2009+ Ram 1500 4WD .75-2.5in 2.5 Series Shocks VS IR Coilover Kit | 211000 |
Downloads & Resources
Application & fitment
Fitment has not been independently verified for your vehicle. Confirm the manufacturer application against your year, make, model, trim, and modifications before ordering.
Shipping & availability
Processing and carrier timing vary by stock status and destination. Final shipping services and costs are confirmed at checkout.
