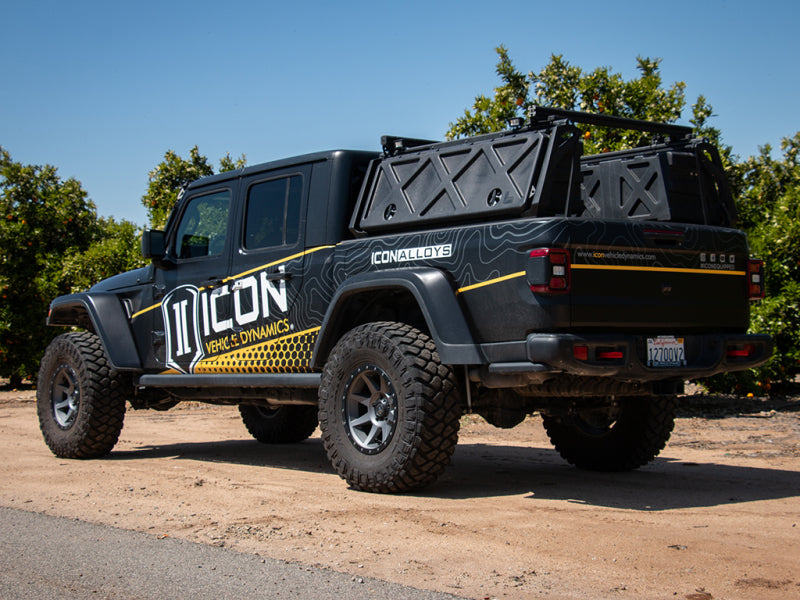

ICON 2020+ Jeep Gladiator 2.5in Stage 7 Suspension System (Billet) - K22107

The Stage 7 ICON 2.5” Suspension System for the Jeep Gladiator is the ideal setup for drastically improving off-road performance and overall ride quality for the application that will see frequent heavy off-road use. This complete suspension system features ICON’s proven 2.5 Aluminum Series shocks, 2.5” lift dual-rate front coil springs, tubular steel fixed lower and adjustable upper front links, billet front sway bar links, a triple-rate rear coil spring kit, billet aluminum adjustable upper and lower rear links, a rear sway bar relocation kit, front and rear adjustable track bars, and all necessary hardware for install. This system provides an increase of over 30% front and 20% rear wheel travel and was designed around the use of a 35” tire. For those looking to run a 37” tire this can be achieved with the ICON Jeep JT Bump Stop Spacer Kit (Part #22071).

TECH NOTE: ICON’s advertised lift heights are based around a typical Jeep JT build which usually includes added weight of accessories such as heavier front bumper/winch. Lift heights may be higher than advertised if installed on a stock weighted vehicle.

Recommended Aftermarket Tires: 35" x 12.50" (37" x 12.50" with optional bump stop spacer kit PN: 22071)

APPLICATION NOTE #128: GLADIATOR MOJAVE TRIM REQUIRES 14MM MISALIGNMENT SPACER KIT PART # 611070

Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.5” Backspace / -6mm Offset

Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 4.5” Backspace / -12mm Offset

TECH NOTE: Only compatible with models equipped with 3.6L V6 Pentastar engine.

APPLICATION NOTE #150: SHOCKS ARE FULLY SERVICEABLE

OEM Wheels & Tires Fitment: Yes

Ships In Multiple Boxes

Features & Benefits

• 2.5 Aluminum Series shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
• Rear billet upper and lower links improve rear end articulation and allow for on-vehicle pinion angle adjustment
• “ICON 1K” tested under rigorous off-road conditions to validate tune, performance, strength, and durability
• Front upper and lower links included for caster angle correction and improved front end articulation
• Triple rate rear coil springs with ICON-engineered droop, ride, and overload rates
• Dual rate front coil springs with lifetime guarantee against sagging/breakage
• Front and rear track bars ensure proper alignment and improved articulation
• Fits 35" tires (37" with extended bump stop spacer kit)
• Improves on and off-road ride quality over stock
• Adjustable, billet aluminum front sway bar links
• 100% bolt-on system makes for an easy install
• 33% front, 23% rear increase in wheel travel
• 2.5" lift height
