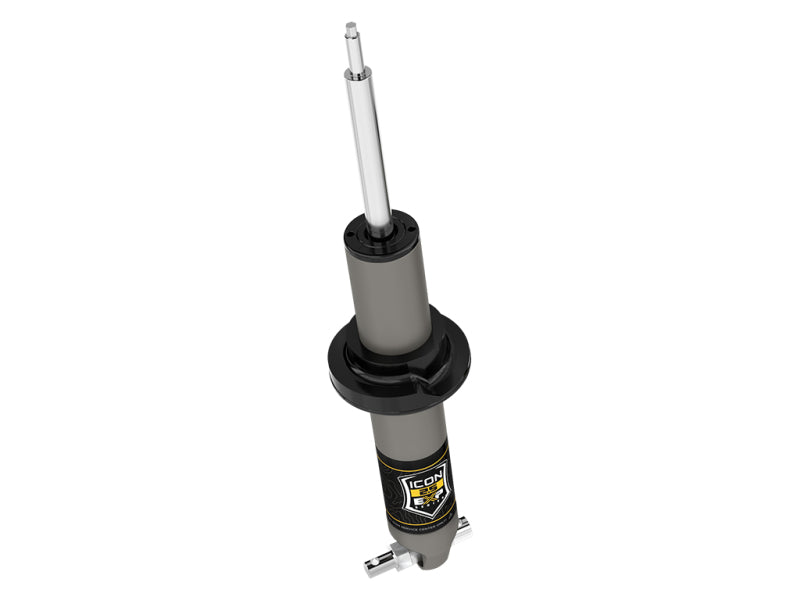

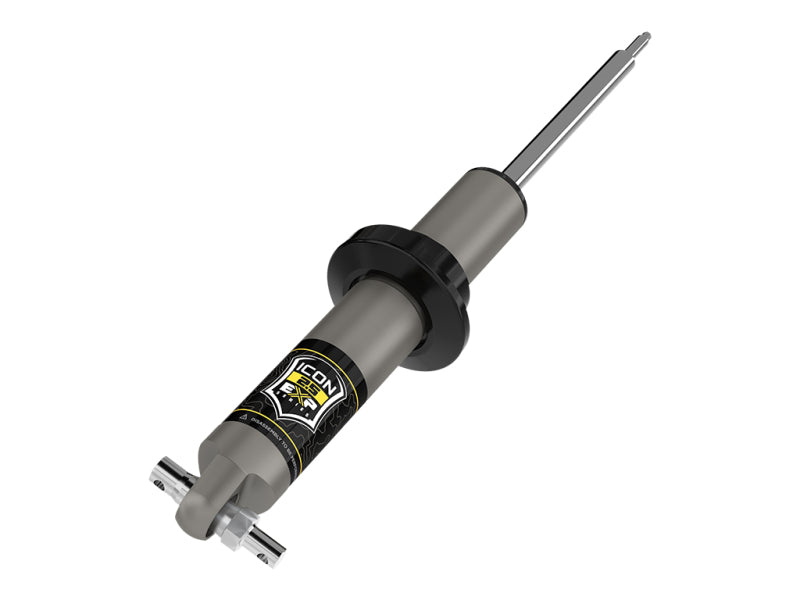

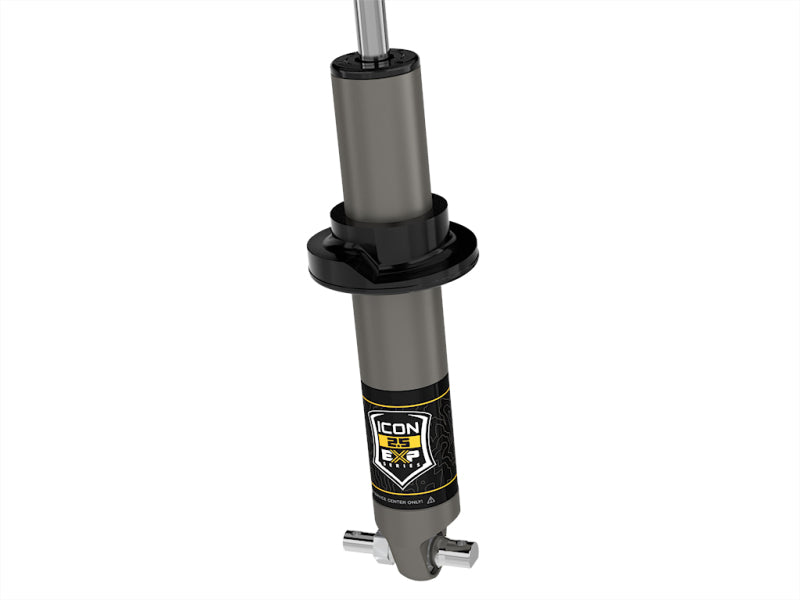

ICON 2021+ Ford Bronco Hoss 1.0 Front EXP Coilover 2.5in - 48601

EXP Series shocks utilize a one-piece digressive piston design and are custom tuned for the Bronco in conjunction with their stock coil springs to maximize damping performance and provide unsurpassed ride quality, on and off-road. The increased piston size and shock oil volume provided by the 2.5-inch diameter aluminum body also provide superior heat dissipation compared to the smaller, steel bodied OE shocks, resulting in longer-lasting shock performance over prolonged use at higher speeds and through rougher terrain. For those who would like to further tune their suspension, EXP shocks are fully re-valvable (and rebuildable) by any qualified shock technician, with parts available from ICON.

APPLICATION NOTE #266: Due to increased wheel travel and lift height provided by these coilovers, ICON upper control arms with Delta Joint Pro, part numbers 48400DJ or 48500DJ, are recommended. Other aftermarket front upper control arms may not be compatible and it is the duty of the installer to verify fitment. Failure to cycle suspension and check for ball joint bind issues may lead to component failure and/or injury.

Recommended Aftermarket Tires: 35" x 12.50" (Requires high clearance crash bars, ICON part number 42000. 37" tire packages require coilover bump stop spacers along with trimming and modifications)

APPLICATION NOTE #25: Factory UCA's will not align properly past 2” of lift. Above 2” of lift an aftermarket UCA is recommended.

APPLICATION NOTE #138: Recommended crash bars part #42000 on Non-Sasquatch equipped vehicles when running 35" tires

APPLICATION NOTE #55: Shocks are fully serviceable. Coilover heights indicated are for a stock equipped vehicle

APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install

APPLICATION NOTE #139: When running 37" tires crash bar removal may be required but is not recommended

APPLICATION NOTE #147: When running 37" tires use bump stop spacer kit part # 611082 in the front

TECH NOTE: EXP Coilovers are sold individually. A quantity of 2 are required per vehicle.

Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.75” Backspace / 25mm Offset

APPLICATION NOTE #269: Only fits Ford Bronco equipped with HOSS 1.0 Suspension Package

Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 6.00" Backspace / 25mm Offset

APPLICATION NOTE #10: Will not fit Bronco Raptor

TECH NOTE: Not compatible with Bronco Raptor

OEM Wheels & Tires Fitment: Yes

Features & Benefits

• One-piece, impact extruded, hard anodized aluminum cylinder offer excellent corrosion resistance and consistent finish
• Inverted shaft up design featuring 7/8” diameter, induction hardened, chrome plated shaft
• Adjustable ride heights from 1.375-3” of front lift over stock with the use of snap ring
• Vehicle specific design for 2021-2026 Ford Bronco with HOSS 1.0 Suspension Package
• PTFE lined spherical bearing for extended longevity and minimal deflection
• CNC machined 6061 aluminum components with a black anodized finish
• 100% Bolt-on - no cutting or welding necessary for installation
• Vehicle specific tuned for superior shock damping and control
• 2.5 Aluminum Series Shock with Internal Reservoir
• High strength alloy CNC machined lower bar pin
• Utilizes factory coil and coil hardware
• Fully rebuildable and re-tunable

Downloads & Resources

• Installation Instructions (PDF)
