ICON
ICON 2021+ Ford F-150 2WD 0-3in Stage 1 Suspension System - K93121
- Catalog SKU
- icoK93121
- Manufacturer part #
- K93121
- ✓Secure checkout
- ✓Enthusiast support
- ✓Free shipping on eligible $300+ merchandise subtotals in the lower 48 states
- Returns policy
Some products and vendors are excluded, including freight/LTL and oversized items.
One Parts Desk request covers fitment, availability, and timing.
Price matches are reviewed before purchase and are not guaranteed.
Project Garage
Plan this exact partSave the selected option to a build plan in this browser. No account required.
Fitment is not verified for your saved vehicle.
Product details
Product information
Overview

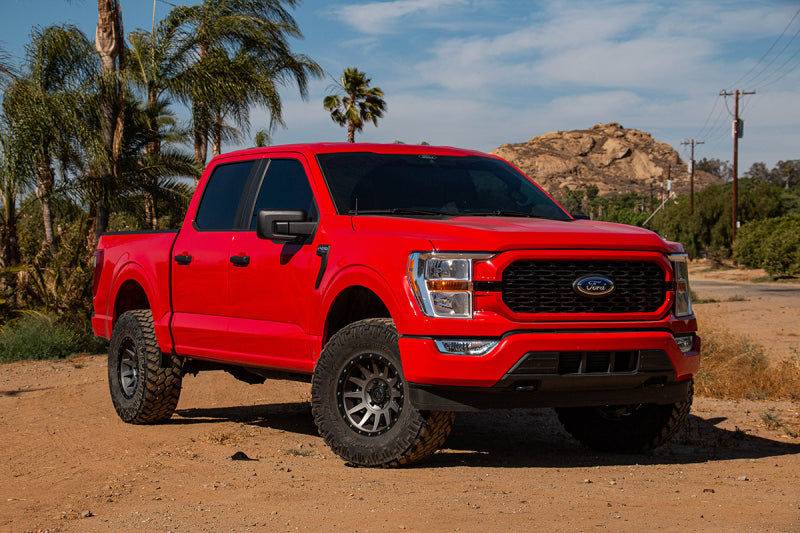

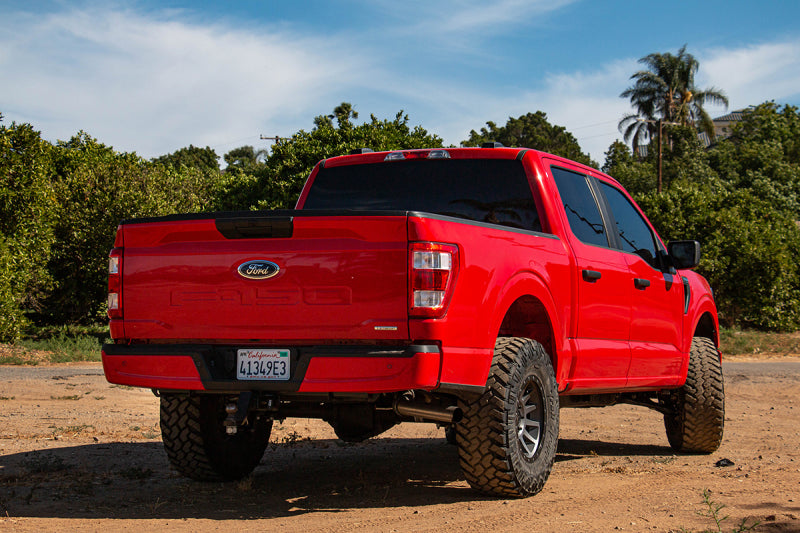

ICON Vehicle Dynamics 2021-2023 Ford F150 2WD suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. The Stage 1 system includes vehicle-specific tuned 2.5” coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered Eibach coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from 0-3” allowing the use of larger, more aggressive wheel and tire combinations. ICON 2.0 Aluminum Series monotube rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2021-2023 F150 2WD Stage 1 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
APPLICATION NOTE #179: Only compatible with stock or original ICON Delta Joint UCAs. Not compatible with ICON Delta Joint Pro UCAs.
Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
TECH NOTE: Models equipped with Power-Stroke diesel engines will have lift height range of 0-2.5" over stock
TECH NOTE: Models equipped with PowerBoost hybrid engines will have lift height range of 0-2.75" over stock
APPLICATION NOTE #129: Will Not Work With Factory Installed Electronically Controlled Suspension
TECH NOTE: Included rear shocks are compatible with 0-1" of rear lift over stock on most models
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.625" Backspace / 16mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25" Backspace / 6mm Offset
TECH NOTE: Only compatible with rear wheel drive (2WD/RWD) models
TECH NOTE: Not compatible with models equipped with BlueCruise
OEM Wheels & Tires Fitment: Yes
Ships in multiple boxes
Features & Benefits
- Vehicle specific tuned front and rear shocks for superior damping and vehicle control
- Increased wheel travel and ride quality over stock with no change in towing capacity
- 100% bolt-on system - no drilling, cutting, or welding necessary for install
- Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
- 2.0 Aluminum Series rear shocks with 5/8" induction hardened shafts
- FK Rod End bearings for extended longevity and minimal deflection
- Adjustable coilovers provide 0-3" of lift height over stock
- 6061 aircraft grade aluminum CNC machined components
- High strength alloy CNC machined lower bar pins
Downloads & Resources
Application & fitment
Fitment has not been independently verified for your vehicle. Confirm the manufacturer application against your year, make, model, trim, and modifications before ordering.
Shipping & availability
Processing and carrier timing vary by stock status and destination. Final shipping services and costs are confirmed at checkout.
