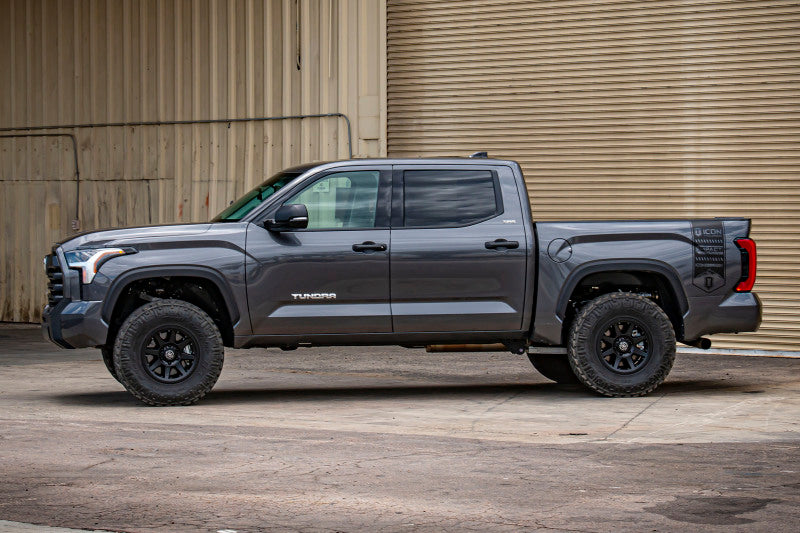

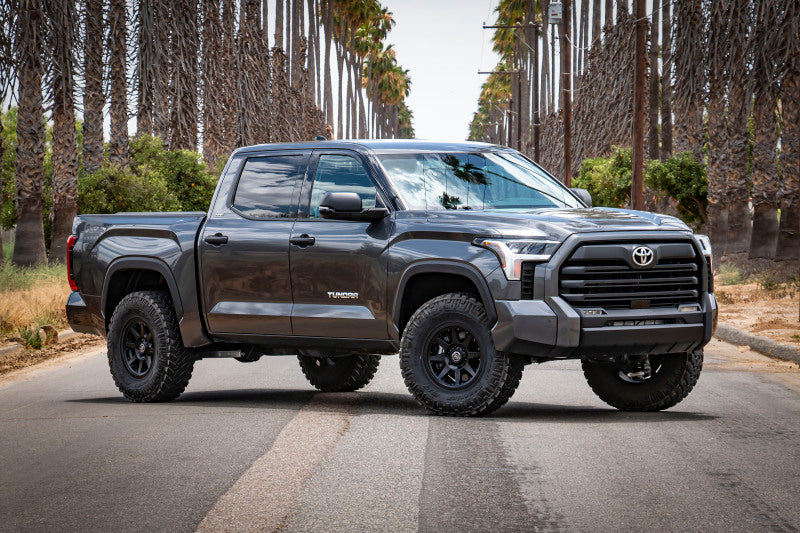

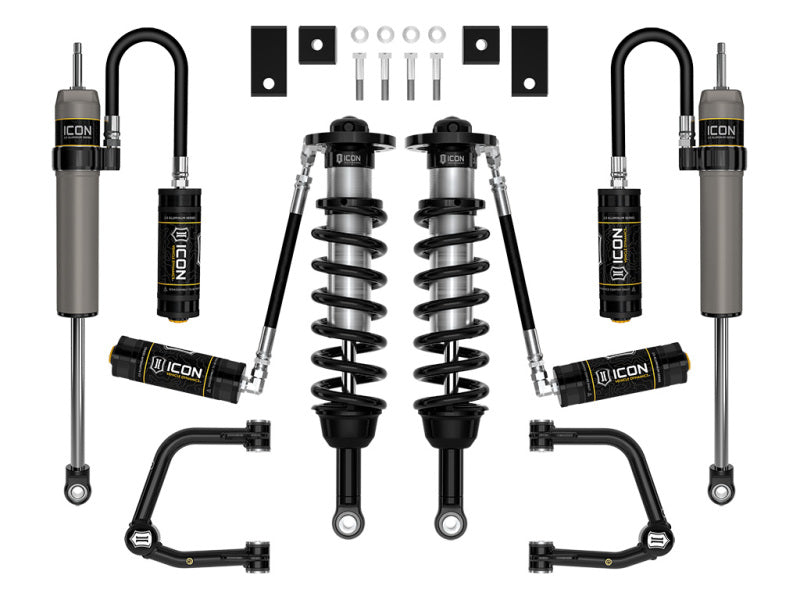

ICON 2022+ Toyota Tundra 2-3.5in Stage 7 Tubular Suspension System - K53197T

Rounding out the Stage 7 suspension system are 2.5 Aluminum Series rear remote reservoir shocks specially tailored for the 2022-2025 Tundra. The 2.5 Aluminum Series shocks’ larger diameter offers outstanding performance off-road and a smooth ride on the street. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. They also feature a unique internal Bump Zone that when used creates an additional 20% of damping force to help better control hard bottom outs. Their pairing with the ICON V.S. 2.5 Series front coilovers results in balanced vehicle control from front to rear and an excellent overall driving experience for your Tundra.

TECH NOTE: Included rear shocks are compatible with 0-1.5" of rear lift over stock on models equipped with rear coil springs without TRD suspension package. Rear shocks are compatible with 0-1" of rear lift over stock on models equipped with rear coil springs with TRD suspension package and TRD Pro.

APPLICATION NOTE #149: FOR 4WD MODELS WITHOUT TRD OFF-ROAD PACKAGE ICON RECOMMENDS USING ICON DIFF DROP (PART# 55156) OR USING TOYOTA TRD AXLES (PART# 434200C020 DRIVER / 434100C020 PASS). FAILURE TO DO SO COULD RESULT IN FRONT AXLE DAMAGE. NOT REQUIRED FOR TRD PRO.

APPLICATION NOTE #85: Advertised lift height ranges are for a stock equipped vehicle. Increasing weight of vehicle due to accessories will alter lift lange.

TECH NOTE: Most Tundra sub-models equipped with i-Force gasoline engine will have front lift height range of 2-3.5" over stock

TECH NOTE: Most Tundra sub-models equipped with i-Force MAX hybrid engine will have front lift height range of 2-3" over stock

APPLICATION NOTE #142: Not compatible with vehicles equipped with Load-Leveling Rear Height Control Air Suspension.

TECH NOTE: Tundra SR5 equipped with TRD Sport Suspension package will have lift height range of 3-4.5” over stock

APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. LIFT HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE.

APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install

Recommended Aftermarket Tires: 35" x 12.50" (Minor fender trimming and modifications may be required)

APPLICATION NOTE #153: Not compatible with Adaptive Variable Suspension (AVS) equipped vehicles

APPLICATION NOTE #171: If equipped with TRD aluminum skid plate part # 55164 is also required

Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.75” Backspace / 25mm Offset

TECH NOTE: Tundra TRD Pro will have front lift height range of 0-1.75" over stock

OEM Wheels & Tires Fitment: Yes

Features & Benefits

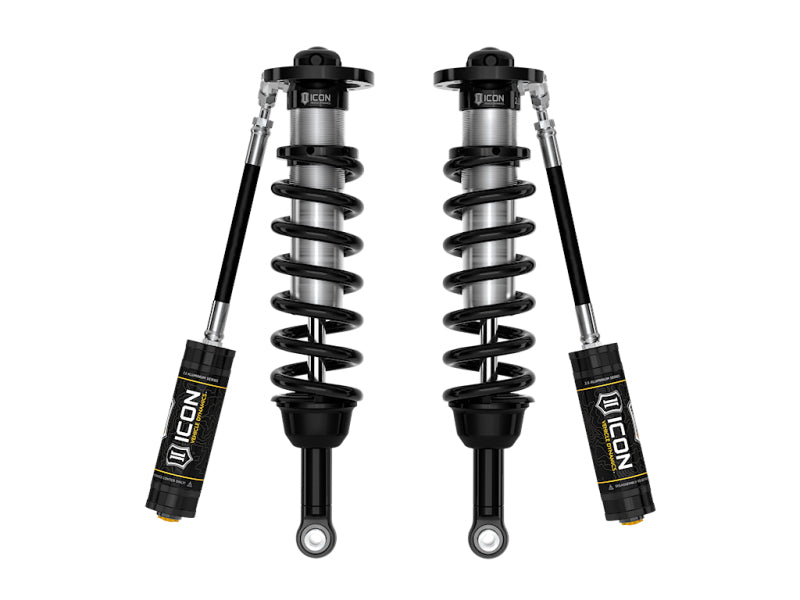

• 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling

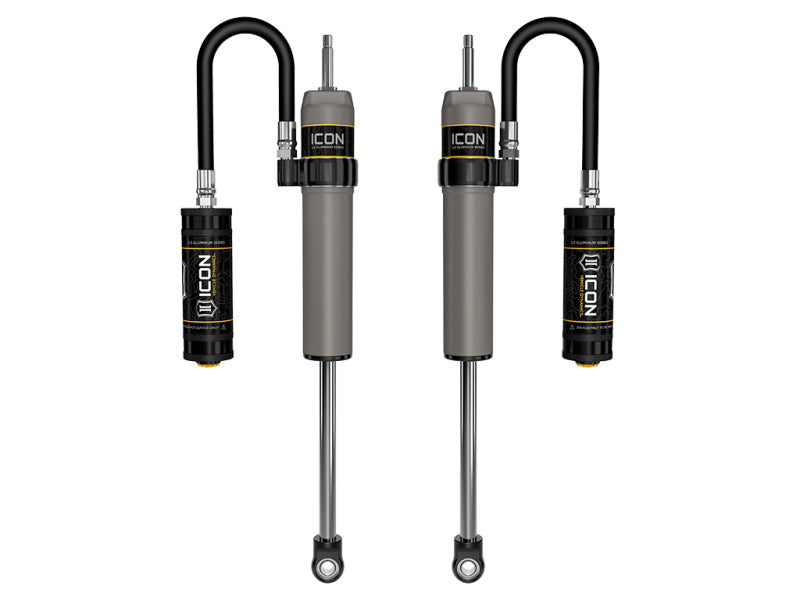

• 2.5 Aluminum Series rear remote reservoir shocks provide increased performance and balanced tune with coilovers
• Adjustable front ride heights from 2-3.5” of front lift over stock when used with included tubular UCAs
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
• Allows for up to 40% increase in front wheel travel over stock without overstressing OE components

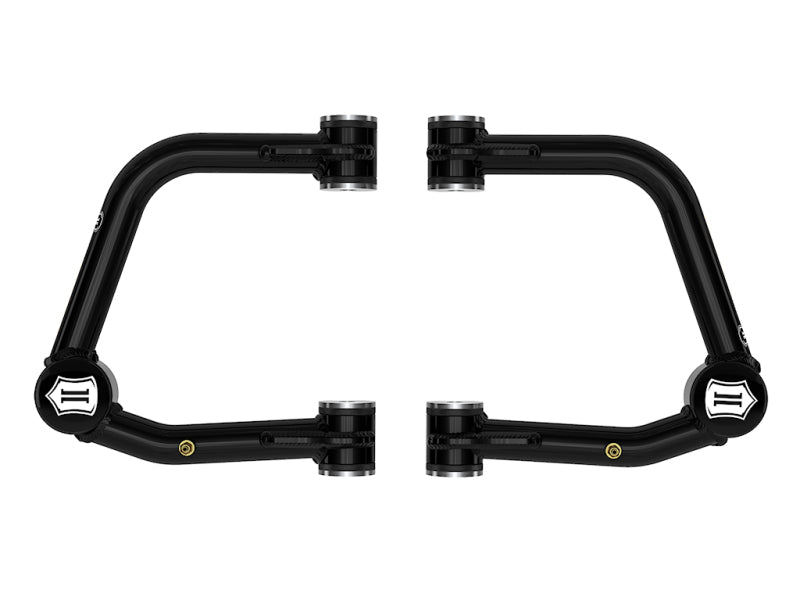

• Tubular UCAs for added strength, durability, and alignment correction for better drivability

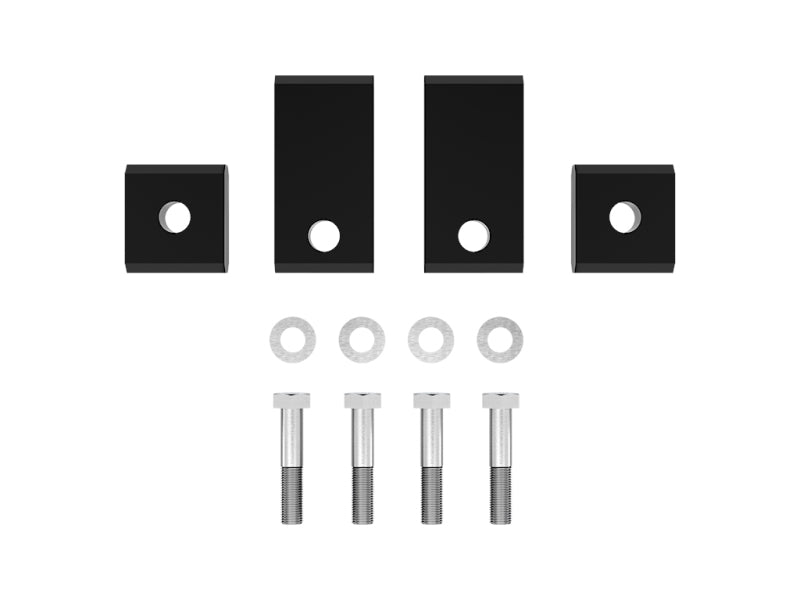

• Included sway bar drop brackets reduce bind in OE sway bar links
• All ICON shock absorbers are fully rebuildable and re-tunable
• Vehicle specific design for 2022-2025 Toyota Tundra
