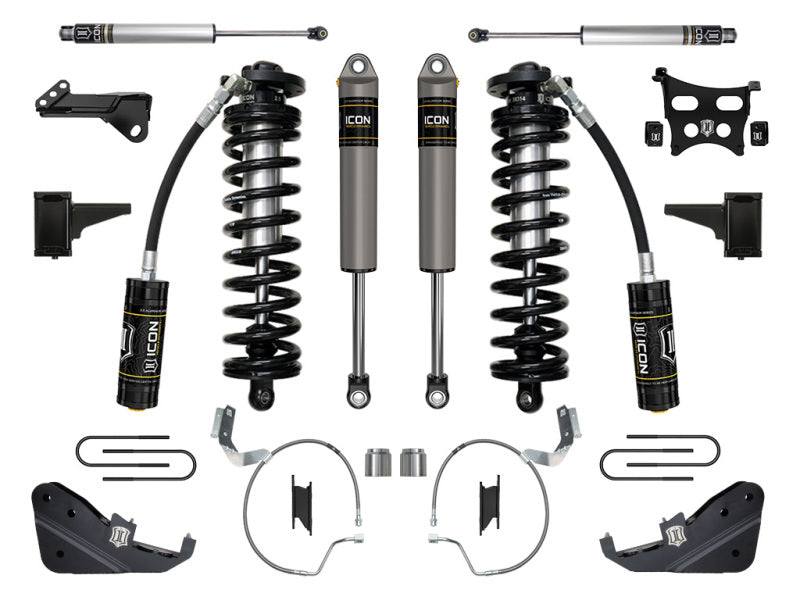

ICON 2023 Ford F250/F350 4-5.5in Stage 3 Coilover Conversion System - K63173

ICON's 4-5.5” Lift Stage 3 Coilover Conversion System features 2.5 Series remote reservoir coilovers that provide superb on-road comfort and off-road performance while at the same time allowing for end-user ride height adjustability. These bolt-in coilovers also allow the option to mount secondary shocks in the stock location, effectively doubling shock damping ability. Their remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. Fabricated radius arm drop brackets correct suspension geometry and ensure proper wheel alignment with the OE radius arms. The fabricated track bar drop bracket allows the axle to be properly centered under the frame and reduces road feedback throughout the steering system with improved on- and off-road manners thanks to the elimination of bump steer. ICON’s dual opposing steering stabilizer kit featuring ICON 2.0 Aluminum Series shocks improves steering damping to better control undesirable steering feedback caused by larger tires. Heavy-duty fabricated 5" rear blocks and U-bolt kit lift the rear of the vehicle and are designed to withstand heavy towing/hauling duty as well as the stresses of aggressive off-road use. ICON 2.5 Aluminum Series internal reservoir rear shocks feature a vehicle specific tune for improved vehicle handling and excellent ride quality on- and off-road with improved performance compared to 2.0 Aluminum Series shocks. The included box kit includes fabricated front sway bar drop brackets to prevent bind, heavy-duty aluminum bump stop spacers, and high quality stainless steel extended brake lines.

APPLICATION NOTE #464: Due to tight clearances and varying placement of vehicle’s wiring harness in the upper front-passenger wheel well area, installer must ensure adequate clearance between the harness, coilover reservoir, and other components to prevent chafing/damage to wire harness. If adequate clearance cannot be achieved, please contact ICON Customer Service.

APPLICATION NOTE #463: If installing with ICON 2.5 Series remote reservoir secondary shocks, reservoir doubler kit part number 611003 is also required

APPLICATION NOTE #471: Super Duty diesel models equipped with Tremor package will have front lift height range of 3-4.5" over stock

APPLICATION NOTE #473: Super Duty gas models equipped with Tremor package will have front lift height range of 3.5-5" over stock

APPLICATION NOTE #470: Super Duty diesel models without Tremor package will have front lift height range of 4-5.5" over stock

Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)

APPLICATION NOTE #472: Super Duty gas models without Tremor package will have front lift height range of 4.5-6" over stock

APPLICATION NOTE #55: Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.

APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install

APPLICATION NOTE #88: Removal of the coil centering cup in factory coil bucket required for installation

APPLICATION NOTE #120: Secondary shock options available, contact ICON for more details

Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset

Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset

Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset

APPLICATION NOTE #3: Will not fit F-350/F-450 Cab & Chassis models

APPLICATION NOTE #115: Lift heights based on 4WD crew cab diesel

APPLICATION NOTE #151: Fits single rear wheel models only

APPLICATION NOTE #1: Only fits 4WD models

OEM Wheels & Tires Fitment: Yes

Features & Benefits

• Lifetime guarantee against ICON fabricated component breakage or manufacturer defect
• Radius arm drop brackets correct geometry and caster for optimal alignment specs
• Track bar drop bracket reduces track bar angle and corrects bump steer geometry
• Corrosion resistant anodized steering stabilizer shock bodies with 5/8" shafts
• Ride height adjustable ICON 2.5 Series coilovers provide 4-5.5" of front lift
• Vehicle-specific shock valving provides unparalleled ride quality and control
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• Corrosion resistant hard anodized rear shock bodies with 7/8" shafts
• Dual steering stabilizer kit offers increased steering damping
• Lifetime guarantee against coil spring breakage or sagging
• ICON 2.5 Aluminum Series internal reservoir rear shocks
• Increased wheel travel and ride quality over stock
• Bolt-in system fits in OE coil bucket location
• Fits 2023-2026 F-250 / F-350 4WD applications
• Shocks are fully rebuildable and re-tunable
• Stainless steel braided front brake lines
• Heavy-duty fabricated rear lift blocks
